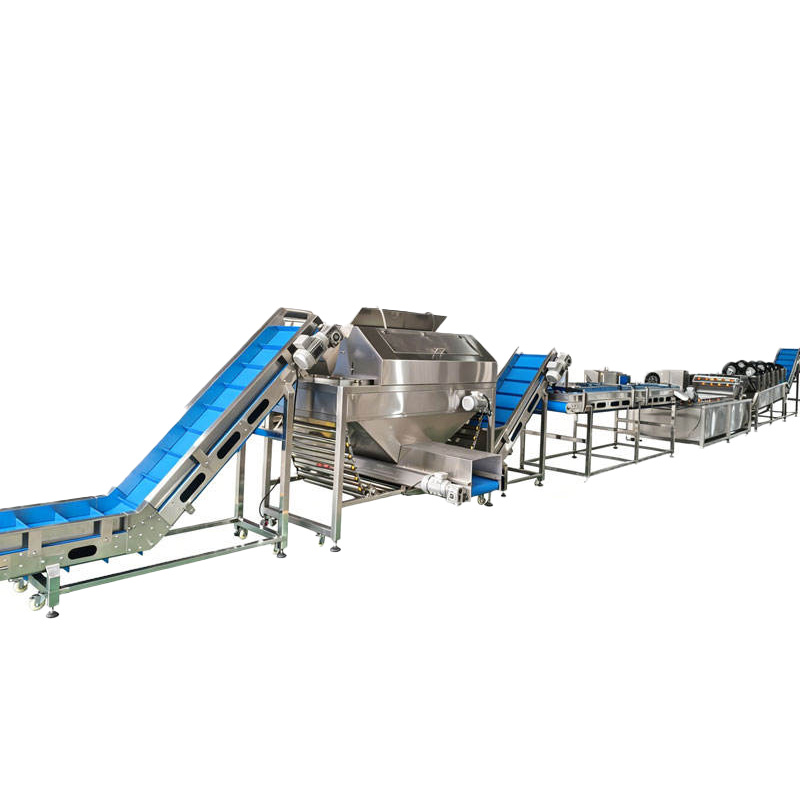

Onion Processing Line System Solution for Industrial Use

Onion Processing Line Product Introduction

The onion processing line system solution for industrial use is a fully automatic and high efficiency system designed for continuous processing of fresh onions into sliced diced and segmented products. This solution integrates washing peeling trimming cutting drying and packaging into a complete production workflow to ensure hygienic processing stable output and consistent product quality.

It significantly reduces labor requirements improves production efficiency and minimizes raw material loss while maintaining high yield. Designed for modern food processing plants central kitchens and industrial vegetable processing facilities the system supports flexible production for fresh cut frozen and pre processed onion products. Its modular design allows easy expansion and customization according to different production needs.

System Overview

• Fully automatic onion processing line system solution for industrial applications
• Continuous processing system designed for large scale production
• Integrated washing peeling cutting and drying modules in one system
• Food grade stainless steel construction for hygiene and durability
• Modular design for flexible configuration and future expansion
• Suitable for different onion types and processing requirements

Processing Workflow

Raw Material Feeding

• Onions are fed into the system through conveyor or hopper systems
• Ensures continuous material flow and reduces manual handling

Bubble Washing and Cleaning

• Bubble washing removes soil sand and impurities effectively
• Gentle cleaning process prevents product damage

Peeling Process

• Mechanical or air assisted peeling removes outer skin efficiently
• Minimizes waste and improves product yield

Root and Tip Cutting

• Automatic trimming removes root and stem ends
• Improves product uniformity and processing quality

Cutting and Slicing

• Precision cutting supports slicing dicing and segment cutting
• Ensures uniform size for consistent product appearance

Rinsing and Secondary Cleaning

• Removes residual juice and impurities after cutting
• Enhances hygiene and product freshness

Dewatering and Drying

• Air drying or vibration drying removes surface moisture
• Improves shelf life and prepares product for packaging

Packaging

• Automatic packaging ensures efficient storage and transportation
• Reduces labor and increases production efficiency

Why This System Is Efficient

• Multi stage washing improves cleanliness and food safety
• Automated peeling reduces labor cost and increases efficiency
• Precision cutting ensures consistent product size
• Drying system reduces moisture and extends shelf life
• Continuous processing improves productivity
• Modular structure supports multiple product types

Capacity Selection Guide

Capacity Range	Recommended Application	Typical Users	Production Scale
300 to 600 kg per hour	Small scale onion processing	Small factories startups	Entry level production
800 to 1500 kg per hour	Medium processing plants	Growing businesses	Standard industrial production
2000 to 3000 kg per hour and above	Large industrial processing plants	Large factories exporters	High volume continuous production

Solution Composition

• Feeding conveyor system
• Bubble washing machine
• Onion peeling machine
• Root cutting machine
• Cutting and slicing machine
• Rinsing system
• Dewatering and drying system
• Air drying machine
• Packaging system
• PLC control system

Technical Specifications

Category	Specification
Processing capacity	300 to 3000 kg per hour
Raw material	Fresh onions
Final product	Sliced diced segmented onions
Processing mode	Continuous automatic
Installed power	20 to 80 kW
Power supply	220V 380V 415V 50Hz
Water consumption	2 to 6 cubic meters per hour
Cutting types	Slice dice segment
Peeling method	Mechanical or air assisted peeling
Washing method	Bubble washing system
Drying method	Air drying or vibration drying
Control system	PLC intelligent control with touchscreen
Material	Food grade stainless steel SUS304
Line length	10 to 40 meters
Installation area	80 to 300 square meters
Noise level	Less than 75 dB
Operation type	Fully automatic or semi automatic optional
Service life	More than 10 to 15 years
Maintenance	Low maintenance design
Customization	Available based on capacity and layout

Optional Configurations

• Ozone cleaning system for pesticide removal
• Automatic grading and sorting system
• Multi cutting modules for different product shapes
• Advanced drying systems for higher efficiency
• Fully automatic packaging solutions
• Customized layout design for factory integration

ROI and Investment Value

• Increase production efficiency by 40 to 60 percent
• Reduce labor costs by 20 to 40 percent
• Improve product consistency and quality
• Reduce raw material waste and loss
• Expand production capacity and flexibility
• Typical return on investment period is 6 to 12 months

Main Features

• High capacity continuous processing
• Fully automatic operation
• Precision cutting technology
• Hygienic food grade design
• Energy efficient system
• Flexible customization options

Why Choose This Solution

• Complete onion processing solution for industrial use
• Competitive factory price with high performance
• Customizable configurations for different production needs
• Reliable and stable operation for long term use
• Proven processing technology for consistent results

Price Factors

• Processing capacity requirements
• Automation level and control system
• Cutting and drying configurations
• Optional modules and upgrades
• Material quality and customization level

Application Scenarios

• Fresh vegetable processing plants
• Central kitchens and food preparation facilities
• Ready to eat food production factories
• Frozen food pre processing plants
• Agricultural product processing centers

Industry Applications

• Vegetable processing industry
• Food manufacturing industry
• Catering supply chain
• Agricultural processing sector
• Cold chain logistics

Ideal For Your Project

• Suitable for large scale onion processing projects
• Ideal for automated and continuous production
• Helps reduce labor dependency and operational cost
• Ensures hygienic and standardized processing
• Supports production expansion and product diversification

FAQ

What types of onions can be processed
The system can process various onion types and sizes with adjustable settings to ensure efficient handling and consistent results.

Can the system support different cutting styles
Yes the cutting system can be configured for slicing dicing and segment cutting based on production requirements.

Is the system fully automatic
Yes the system supports PLC controlled automatic operation which improves efficiency and reduces manual intervention.

How does the system reduce raw material waste
Optimized peeling and cutting processes minimize waste and improve yield while maintaining product quality.

What factors affect the final price
Capacity configuration automation level and optional modules all influence the final system cost.
