Neodymium High Power Magnet 8kg to 480kg Pulling Force Rare Earth Magnet Diameter 16mm-120mm Powerful Salvage Magnets

Add to wishlist
Compare

NOTE: Prices may vary by product model and material.

  1. Strong pulling force can only be exerted in the vertical direction.
  2. If it is too far away from the adsorbed object, the magnetic force will be greatly reduced.
  3. Only by absorbing the center of the object can it exert a strong pulling force.
  4. It can only adsorb the center of the object, and non-ferrous metals cannot be adsorbed.
  5. Avoid high temperature, over 80 ° C to start demagnetization.
  6. It should be adsorbed on the flat part, otherwise it will affect the adsorption effect.

$3.00

Compare

Details of the Neodymium High Power Magnet

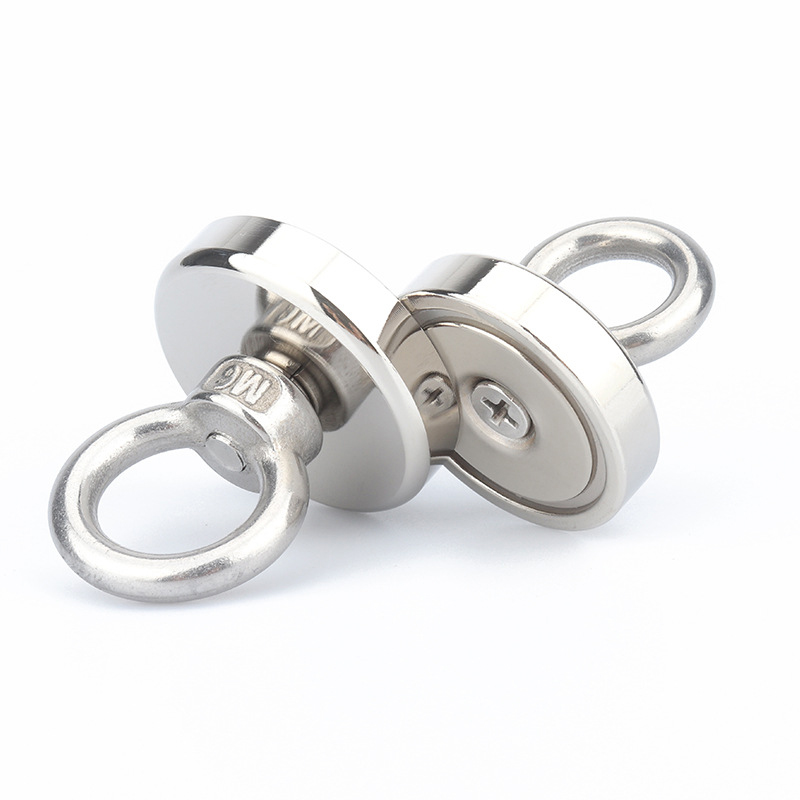

  • Removable stainless iron lifting ring

The product consists of (A3 iron shell+stainless iron hook) Part composition, fastening hook is buckled through the socket. It can be disassembled and replaced by other products.

  • Strong Nd-Fe-B permanent magnet

Nd-Fe-B has very high magnetic energy product, coercive force and high energy density, and the magnetic force is concentrated.

  • Exquisite appearance, high-quality electroplating

Products by the stamping lathe molding, externalnickel-copper-nickel three-layer plating, the exterior of the product wrapped rubber treatment, anti-collision and anti-drop to increase the

service life.

Models of the Neodymium High Power Magnet

Model D (mm) D1 (mm) D2 (mm) d (mm) H (mm) h (mm) M (mm) Weight (g) Maximum Pull-Off Force (kg)
D16 16 13 7 7 20 5 M3 9 8
D20 20 19 10.7 8.6 29.5 7.2 M4 20 11
D25 25 23 13.5 10.6 33 7.7 M5 37 22
D32 32 23 13.5 10.6 33.1 7.8 M5 55 36
D36 36 26.8 17 12 38.5 7.8 M6 71 45
D40 40 26.8 17 12 38.7 7.8 M6 90 55
D42 42 26.8 17 12 39.7 8.8 M6 98 65
D48 48 35.5 20.3 19 50 11 M8 198 80
D55 55 35.5 20.3 19 51 12 M8 285 100
D60 60 35.5 20.3 19 54 15 M8 355 140
D75 75 43.8 25.5 21 66 18 M10 659 230
D80 80 43.8 25.5 21 66 18 M10 845 250
D90 90 43.8 25.5 21 66 18 M10 937 340
D100 100 49.1 29 25 72 18 M12 1160 420
D120 120 49.1 29 25 72 18 M12 1670 480
