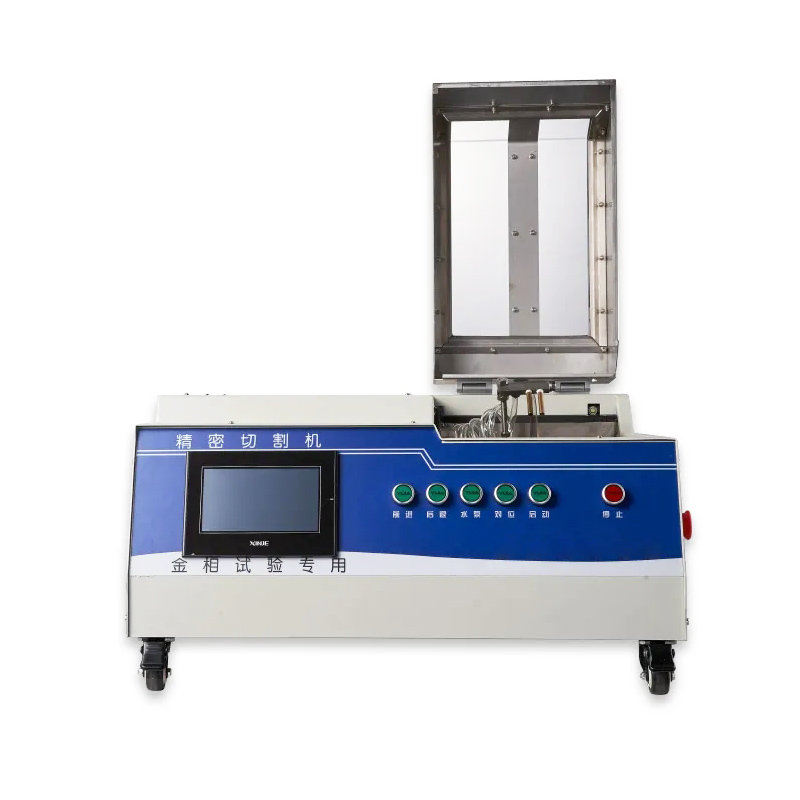

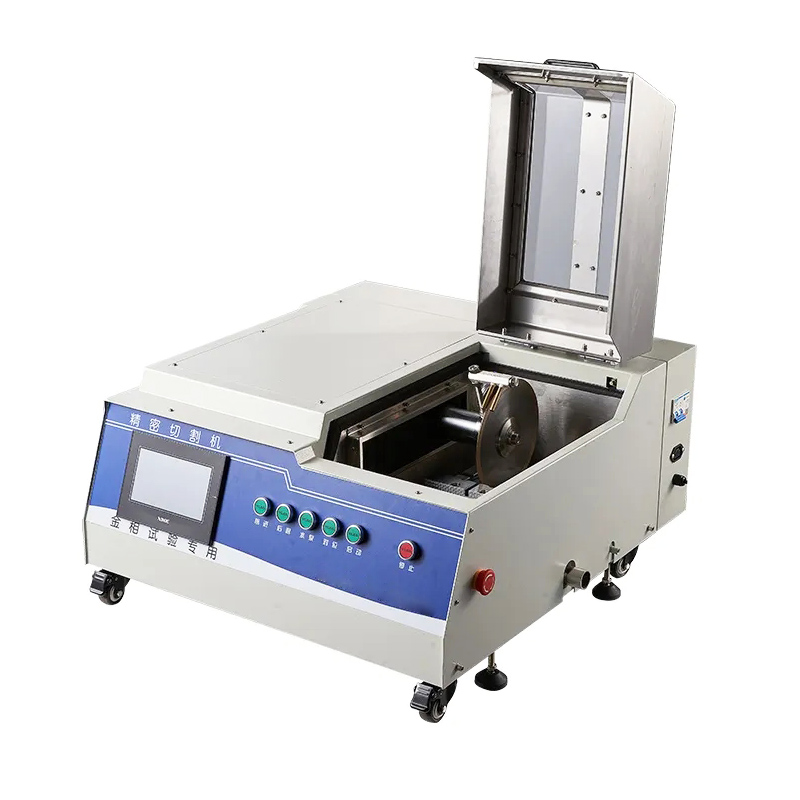

Metallographic High-Speed Precision Sample Cutting Machine
Features:
This equipment has high positioning accuracy, wide speed regulation range, strong cutting ability, strong circulating cooling system, can preset feed speed, touch screen control display, and is easy to operate and control;
Automatic cutting can reduce operator fatigue and ensure consistency in sample production;
Wide and bright cutting room with safety switch.
Adjustable distance between the grinding wheel blades to facilitate cutting after grinding wheel wear.
It is one of the ideal equipment for industrial and mining enterprises and research institutes to prepare high-quality samples.
$5,390.00
CompareThe precision cutting machine is suitable for precise deformation free cutting of metals, electronic components, ceramic materials, crystals, hard alloys, rock samples, mineral samples, concrete, organic materials, biological materials (teeth, bones), and other materials.
This equipment has high positioning accuracy, wide speed regulation range, strong cutting ability, strong circulating cooling system, can preset feed speed, touch screen control display, and is easy to operate and control; Automatic cutting can reduce operator fatigue and ensure consistency in sample production; Wide and bright cutting room with safety switch. Adjustable distance between the grinding wheel blades to facilitate cutting after grinding wheel wear. It is one of the ideal equipment for industrial and mining enterprises and research institutes to prepare high-quality samples.
Precision Sample Cutting Machine
|
Feed speed
|
0.01-3.00mm/s (adjustable step size is 0.01)
|
|||
|
Grinding wheel speed
|
500-5000rpm
|
|||
|
Maximum stroke
|
Y-axis 200mm
|
|||
|
Cutting blade size
|
200 × thirty-two × 1.0mm
|
|||
|
Cutting power
|
1000W
|
|||
|
Power supply
|
220V 50Hz
|
|||
|
Boundary dimension
|
814mm × 725mm × 420mm (length × wide × High)
|
|||
