Metallographic Grinding And Polishing Machine With Single Plate
Features:
Man-machine interface and single-chip control, the system is stable and reliable.
The 7 -inch touch screen displays the operation interface, which is easy to operate and easy to set.
Both the grinding disc and the grinding head are controlled by a stepless speed change, and the grinding disc can control the direction switching.
The center loading force mode can complete the grinding and polishing samples by fixing the sample at one time, thus ensuring the plane parallelism of the sample.
$3,500.00
CompareMetallographic Grinding And Polishing Machine Technical Parameters:
| Name | Specification |
| Work disk diameter | Standard φ 250mm ( Optional φ 230mm , φ 220mm ) with magnetic converter system |
| Grinding disc speed | 100-1000 rev / min Steering forward and reverse can switch |
| Grinding head speed | 0-100r/min |
| Sample preparation time range | 0-9999s |
| Loading range | 30-200N |
| Loading force | Center loading |
| Sample holder | Standard φ 30mm six (optional φ 40- φ 50mm four, the rest can be customized) |
| power supply | AC220V , 50HZ |
| Motor Power | 0.75Kw |
| Dimensions | 700 x 730 x 350mm |
| Weight |
74kg |
Description:
Man-machine interface and single-chip control, the system is stable and reliable.
The 7 -inch touch screen displays the operation interface, which is easy to operate and easy to set.
Both the grinding disc and the grinding head are controlled by a stepless speed change, and the grinding disc can control the direction switching.
The center loading force mode can complete the grinding and polishing samples by fixing the sample at one time, thus ensuring the plane parallelism of the sample.
The loading force can be adjusted during operation, which is flexible and convenient.
By on-off solenoid valve to control the water, the water jet grinding disc automatic cleaning device can clean the inner wall of the water tank itself.
Easily replace the magnetic anti-stick disk, you can complete all the rough, fine grinding and rough, fine polishing of various samples , one plate is equivalent to N disks.
High precision, smooth operation and low noise.
Beautiful appearance, sturdy and durable.
Based on 0 reviews
Be the first to review “Metallographic Grinding And Polishing Machine With Single Plate”
Related products
-
Metallographic Equipment & Consumables

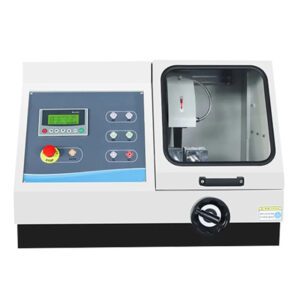

Cutting Machine Metallographic Automatic Specimen Precision High Efficiency
Metallographic Equipment & ConsumablesCutting Machine Metallographic Automatic Specimen Precision High Efficiency
● Chamber illumination with LED
● Aluminum casting base, powder coated
● T-slot Table made of stainless and aluminum alloy
● Fast Cam Locking Vises, made of 304 stainless steel
● Left cover made of composites by integral molding
● Mobile plastic recirculation coolant tank
● Independent pump for cleaning the chamber
● Optional laser alignment aidSKU: n/a -
Metallographic Equipment & Consumables

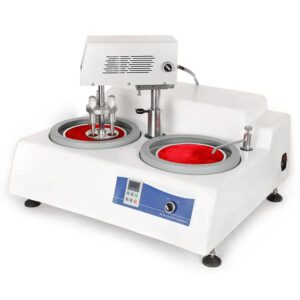

Grinding Polishing Machine Laboratory Metallographic Equipment
