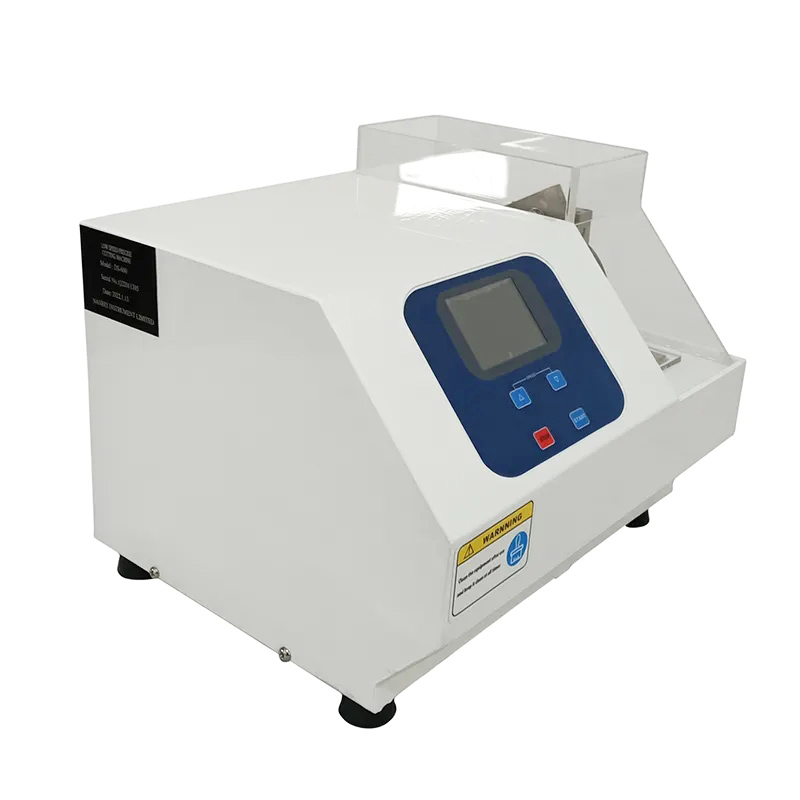

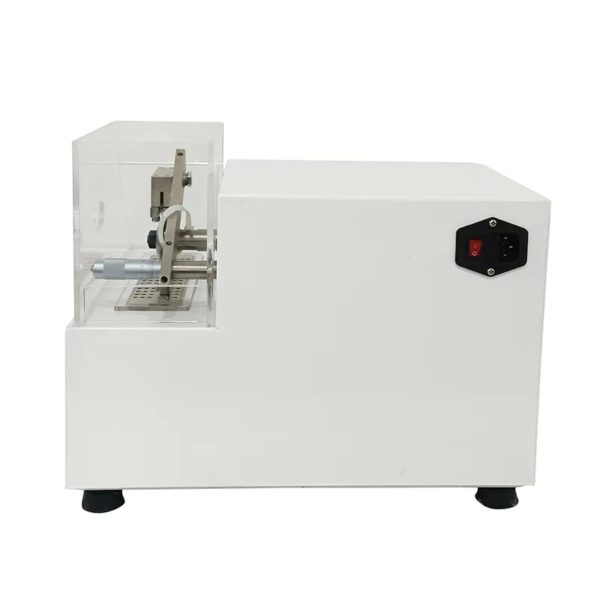

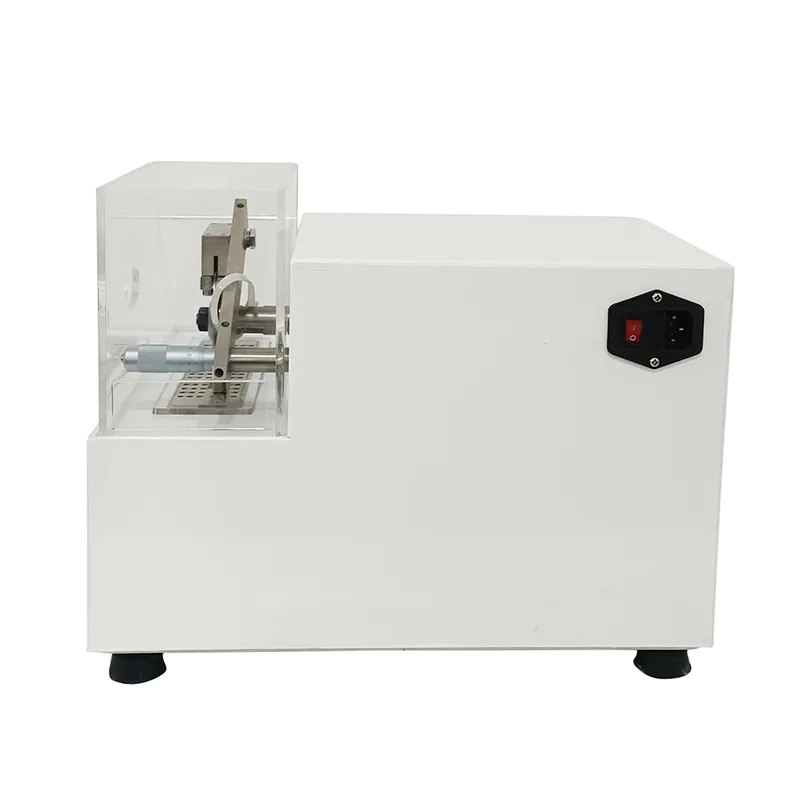

Metallographic Precision Cutting Machine Lab Low Speed Sample Cutter


The device has high positioning accuracy, large speed regulation range, strong cutting ability, strong circulating cooling system, preset speed, touch screen control display, easy operation control, automatic cutting can reduce operator fatigue and ensure sample preparation. Consistency, this unit has a large, bright cutting chamber with a safety switch. The machine has two modes, manual and automatic. It is one of the metallographic test equipments of colleges and universities.

$2,650.00

Compare

The precision cutting machine is suitable for precise non-deformable cutting of metals, electronic components, ceramic materials, crystals, hard alloys, rock samples, mineral samples, concrete, organic materials, biological materials (tooth, bone) and other materials.

The device has high positioning accuracy, large speed regulation range, strong cutting ability, strong circulating cooling system, preset speed, touch screen control display, easy operation control, automatic cutting can reduce operator fatigue and ensure sample preparation. Consistency, this unit has a large, bright cutting chamber with a safety switch. The machine has two modes, manual and automatic. It is one of the metallographic test equipments of colleges and universities.

Metallographic Precision Cutting Machine Specification:

Travel of mobile frame.
25mm
PositionaI accuracy
0.01mm
Rotating speed
0-600r/min
Cutting wheel specification
φ100*0.3*12.7mm
Power
50W
Input Voltage
AC220V,50Hz
Dimension
415*340*270mm
Weight
18.5KG
