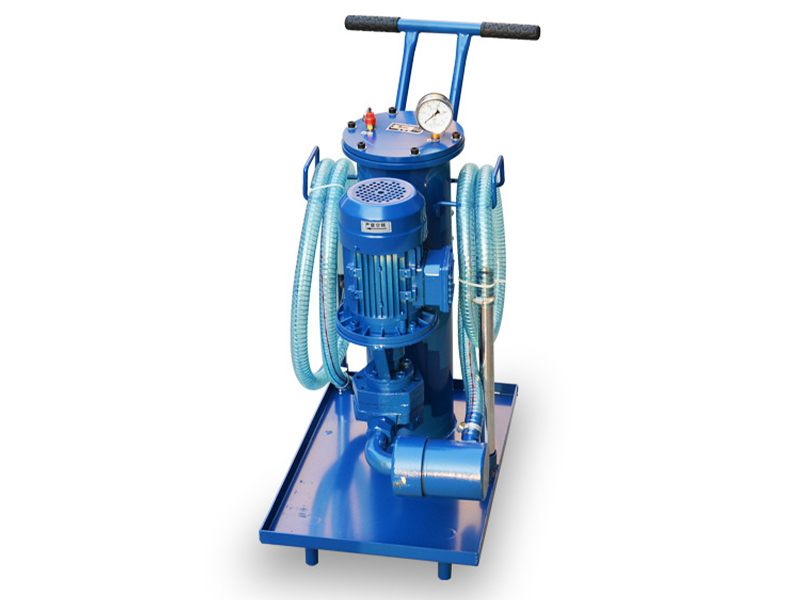

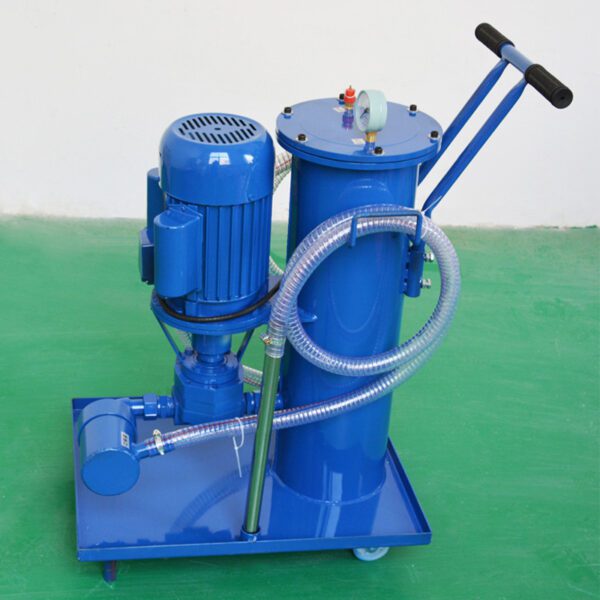

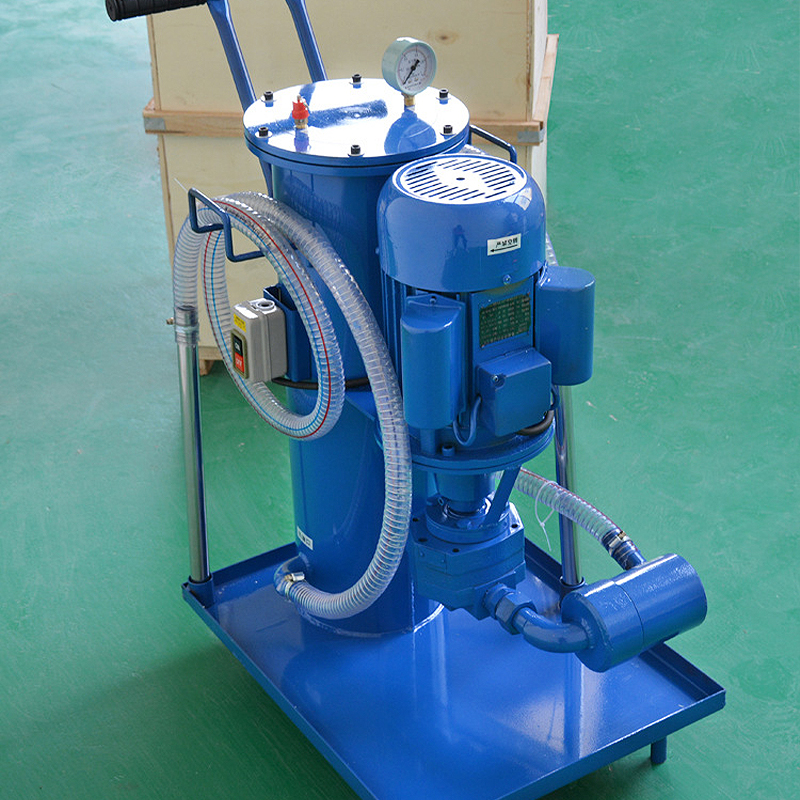

LUC Hydraulic Oil Filter Cart Oil Filtration Trolley 16-125L/min Industrial Mobile Single Tube Small Hydraulic Oil Filter Cart

Add to wishlist
Compare

NOTE: Prices may vary by product model and material.

This oil filter truck is a special equipment to improve the cleanliness of the oil and ensure the reliable operation of the hydraulic system and lubrication system. It is suitable for adding new oil, filtering and regularly removing pollutants from the oil in the system.

LUC is a three-stage filter oil filter car, mainly composed of oil-absorbing magnetic filter, fine filter, safety valve, oil pump and other components.

During the operation of the oil filter car, the degree of clogging of the filter element can be displayed on the pressure gauge. When the pressure reaches 0.35MPa, the filter element should be cleaned or replaced in time. When the gauge pressure continues to rise above 0.4MPa, the safety valve will open automatically, and then part of the oil will return directly to the oil suction chamber of the oil pump without fine filtration. Therefore, the output flow of the oil filter car will decrease to avoid damage to the oil filter car.

$425.00

Compare

Introduction of LUC Hydraulic Oil Filter Cart

LUCD is a multi-stage filter oil filter cart, in which the difference in filtration accuracy between the first-stage fine filter and the second-stage fine filter is recommended to be 4-7 times. For example, if the filter accuracy of the oil filter car is required to be 5 μm, it is recommended that the first-level filter accuracy be 30 μm, and the second-level filter accuracy be 5 μm.

This series of oil filter vehicles can not only improve the filtration efficiency, but also prolong the service life of the filter element.

According to the needs of users, the oil filter truck can be equipped with an oil flow meter to measure the output of the filtered liquid. It has the characteristics of reliable performance, convenient use and maintenance, low noise and so on.

Model Flow

(l/min)

 Filter

(μm)

 Refine filtration

accuracy(μm)

 Original

pressure loss

(MPa)

 Voltage & power Safety valve

opening pressure

 Magnet attraction Weight

(kg)
First Second V KW
LUC-16×* 16 100 3, 5, 10, 20, 30, 40 / ≤0.01 380 0.38 ＞0.4 2N 48
LUC-40×* 40 100 / ≤0.01 380 0.75 ＞0.4 2N 70
LUC-63×* 63 100 / ≤0.01 380 1.10 ＞0.4 2N 78
LUC-100×* 100 100 / ≤0.01 380 1.50 ＞0.4 2N 90
LUC-125×* 125 100 / ≤0.01 380 1.50 ＞0.4 2N 94
LUCD-16×*/* 16 100 20, 30, 40 3, 5, 10 ≤0.01 380 0.38 ＞0.4 2N 52
LUCD-40×*/* 40 100 3, 5, 10 ≤0.01 380 0.75 ＞0.4 2N 74
LUCD-63×*/* 63 100 3, 5, 10 ≤0.01 380 1.10 ＞0.4 2N 90
LUCD-100×*/* 100 100 3, 5, 10 ≤0.01 380 1.50 ＞0.4 2N 96
LUCD-125×*/* 125 100 3, 5, 10 ≤0.01 380 1.50 ＞0.4 2N 99
