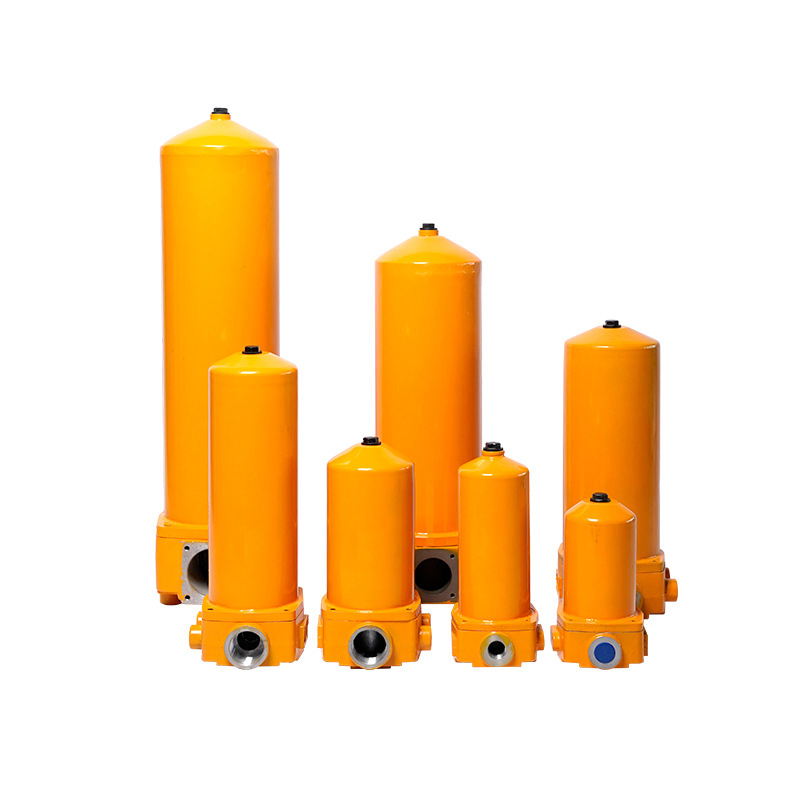

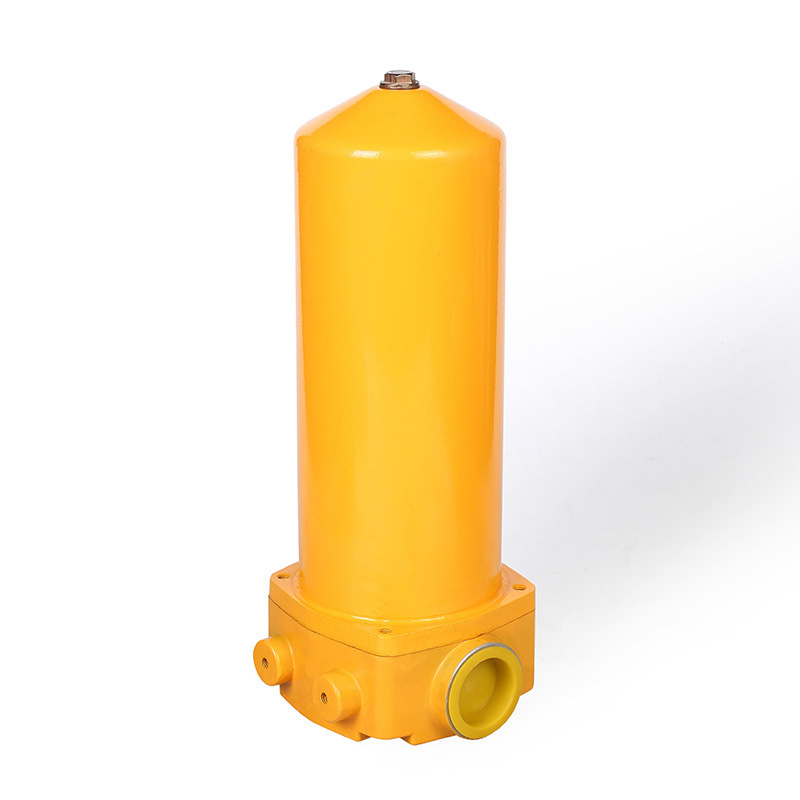

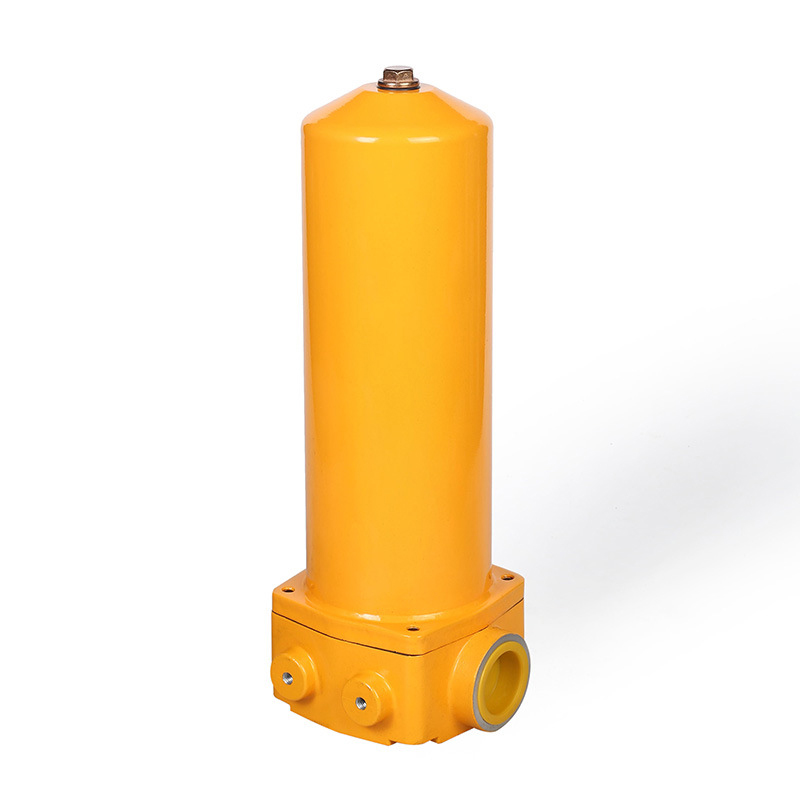

ZU-A Series Hydraulic Filters Flow rate 10-400L/min Hydraulic Oil Low pressure Paper Return Line Filter Hydraulic Accessories


NOTE: Prices may vary by product model and material.

The filter is installed at the oil return line of the hydraulic system to filter out metal powder worn by various components in the oil and rubber impurities worn by seals. Keep the oil flowing back into the oil tank clean, which is conducive to the oil circulation in the system.

The filter is divided into four types: fiber type, paper type, mesh type and line gap type. The chemical fiber type has better filtering effect and higher precision than the paper type, but it is difficult to clean the chemical fiber type and paper type filter elements after clogging, so the filter elements must be replaced.

$39.00

Compare

Introduction of ZU-A Series Hydraulic Filters

The filter is equipped with a differential pressure signaling device. When the filter element is clogged due to pollution and the pressure difference between the inlet and outlet reaches 0.35MPa, a switch signal will be sent out. At this time, the filter element should be cleaned or replaced.

The filter element is made of glass fiber filter material, which has the advantages of high filtration precision, large oil passage capacity, less original pressure loss, and large dirt holding capacity. The filtration accuracy is calibrated by absolute filtration accuracy, the filtration ratio β3, 5, 10, 20≥200, and the filtration efficiency zero n≥99.5%, which meets the IS0 standard.

Model Dia(mm) Flow rate

(l/min)

Filter

(μm)

Press

(MPa)

Pressure loss

(MPa)

By-pass

Setting

(MPa)

Indicator

Power

Weight

(kg)

Connect Model of

Element

Initial Max
ZU-A10×*P 10 10 1

3

5

10

20

30

1.6 0.05 0.35 0.4 24V/48W

220V/50W

2.6 Thread TZX2-10×*#
ZU-A25×*P 15 25 1.6 0.05 0.35 0.4 3.2 Thread TZX2-25×*#
ZU-A40×*P 20 40 1.6 0.05 0.35 0.4 3.6 Thread TZX2-40×*#
ZU-A63×*P 25 63 1.6 0.07 0.35 0.4 4.8 Thread TZX2-63×*#
ZU-A100×*P 32 100 1.6 0.07 0.35 0.4 5.8 Thread TZX2-100×*#
ZU-A160×*P 40 160 1.6 0.12 0.35 0.4 6.7 Thread TZX2-160×*#
ZU-A250×*FP 50 250 1.6 0.12 0.35 0.4 9.5 Flange TZX2-250×*#
ZU-A400×*FP 65 400 1.6 0.15 0.35 0.4 14.4 Flange TZX2-400×*#
ZU-A630×*FP 80 630 1.6 0.15 0.35 0.4 22.3 Flange TZX2-630×*#
ZU-A800×*FP 90 800 1.6 0.17 0.35 0.4 Flange TZX2-800×*#
ZU-A1000×*FP 100 1000 1.6 0.17 0.35 0.4 Flange TZX2-1000×*#
ZU-A25×*BP 20 25 1.6 0.05 0.35 0.4 3.2 Plate TZX2-25×*#
ZU-A40×*BP 20 40 1.6 0.05 0.35 0.4 3.5 Plate TZX2-40×*#
ZU-A63×*BP 32 63 1.6 0.07 0.35 0.4 3.9 Plate TZX2-63×*#
ZU-A100×*BP 32 100 1.6 0.07 0.35 0.4 6.2 Plate TZX2-100×*#
ZU-A160×*BP 38 160 1.6 0.12 0.35 0.4 7.0 Plate TZX2-160×*#
ZU-A250×*BP 50 250 1.6 0.12 0.35 0.4 10.0 Plate TZX2-250×*#
ZU-A400×*BP 65 400 1.6 0.15 0.35 0.4 15.4 Plate TZX2-400×*#

Note: * is the filtration precision, # is the filter material, if the medium used is water-ethylene glycol, the filter material is paper, and there is a transmitter, the filter model number is: ZU·BH-A63×*P, filter element The model number is: TZX2·BH-63×*.
The filter material is chemical fiber, the filtration precision is 10~15μm, and with a transmitter, the filter model is: Q2U-A63×*P, and the filter element model is: TZX2-63x*Q.
The filter material is chemical fiber, the filtration precision is 1~5μm, and with a transmitter, the filter model is: Q3U-A63×*P, and the filter element model is: TZX2-63*Q.
The filter material is metal mesh with a transmitter, the filter model is: WU-A63×*P, and the filter element model is: TZX2-63x*W.
