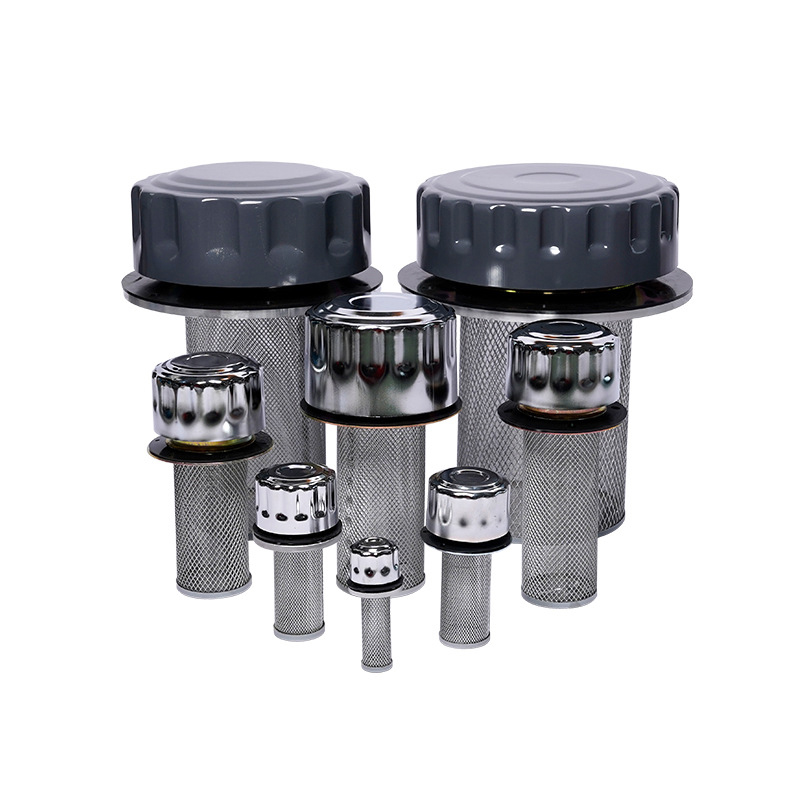

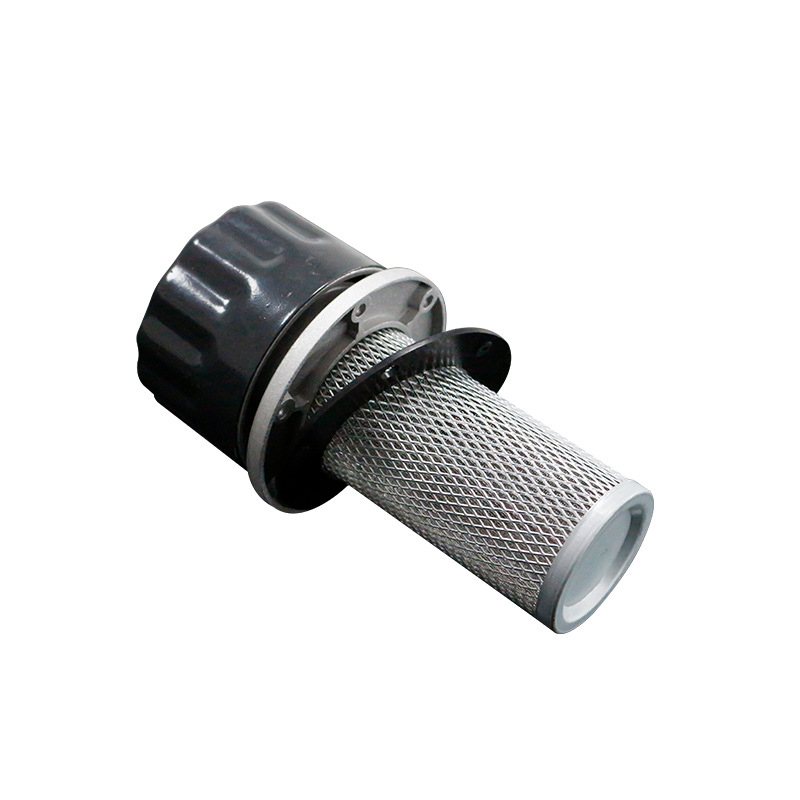

QUQ Hydraulic Fuel Air Filter Fuel Port Tank Port Hydraulic Air Filter Industrial Machinery and Equipment Accessories

Add to wishlist
Compare

NOTE: Prices may vary by product model and material.

  • Model: QUQ1, QUQ2, QUQ2b, QUQ2.5, QUQ2.5A, QUQ2.5B, QUQ3, QUQ4, QUQ5
  • Accurate filtering precision, large filtering area, good filtering effect.
  • High interchangeability, strong pressure resistance.
  • Assembled above the fuel tank, it keeps the air flowing inside and outside the fuel tank and prevents the dust in the external air from mixing into the fuel tank.

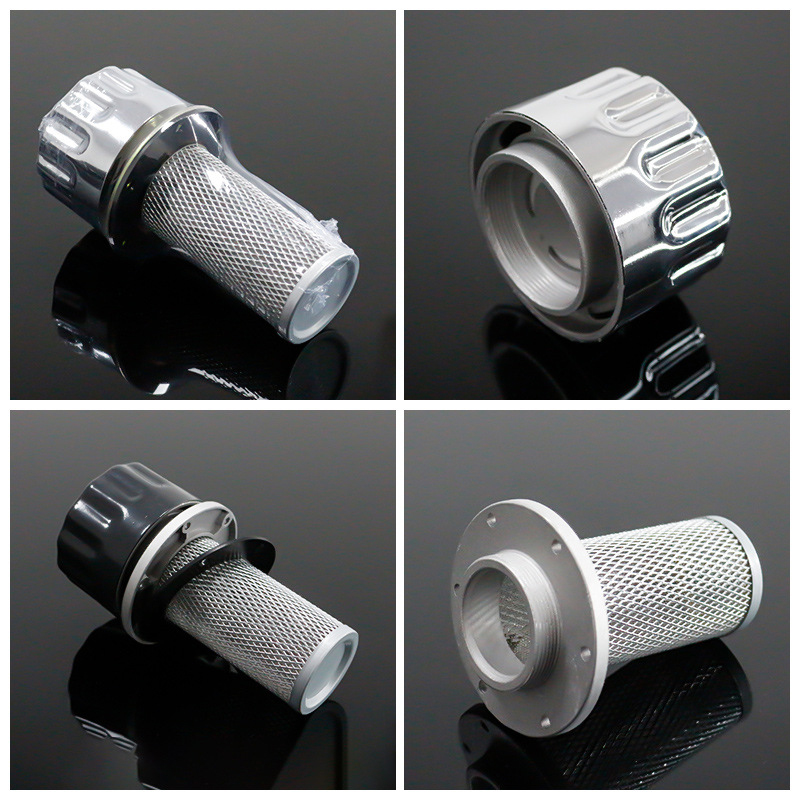

  • The filter screen is detachable for easy cleaning and replacement.

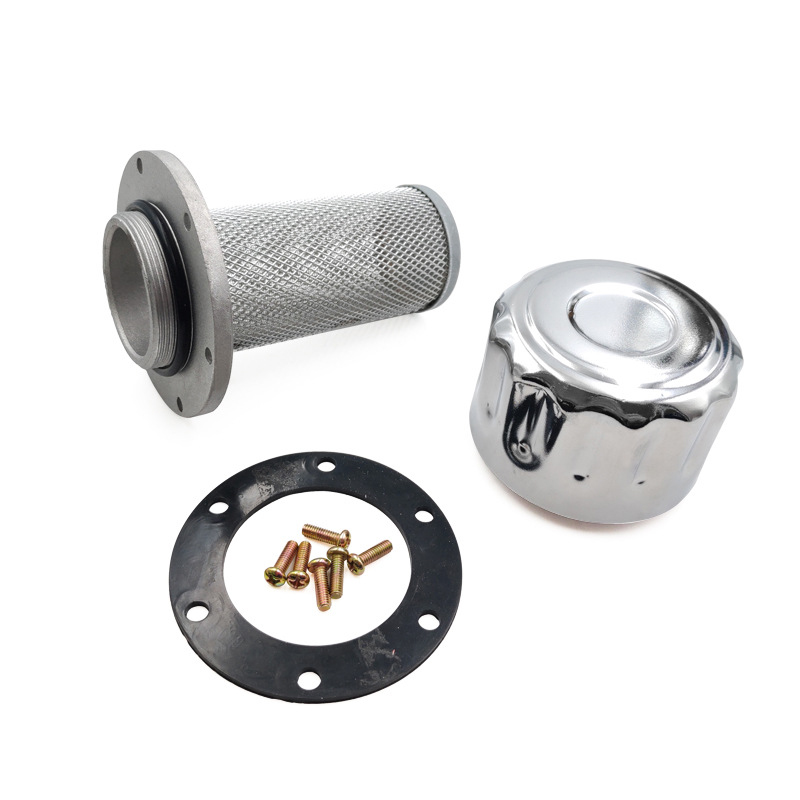

  • The thread of AB type air filter has been machined and can be directly screwed into the oil tank.

$3.50 – $96.00

Compare

Model parameters of QUQ Hydraulic Fuel Air Filter

Model (mm) D D1 D2 D3 L L1 Screw φ
QUQ1 41.3 50 44 28 82 134 3-M4×16 4.5
QUQ2 73 83 76 48 98 159 6-M4×8 4.5
QUQ2b 88 97 76 48 98 159 6-M4×8 4.5
QUQ2.5 110 123 113 76 150 239 6-M4×8 4.5
QUQ2.5A 96 114 90 76 192 241 4-M8×12 9
QUQ2.5B 105 123 90 80 185 237 4-M8×12 9
QUQ3 145 160 150 89 195 320 6-M4×12 4.5
QUQ4 250 280 256 153 254 379 6-M10×20 11
QUQ5 280 320 295 197 270 395 6-M12×20 13

Working principle

When the hydraulic system is working, the oil level in the fuel tank rises or falls from time to time, the air is discharged from the inside to the outside when it rises, and the air is sucked in from the outside to the inside when it falls. In order to purify the oil in the fuel tank, an air filter is installed vertically on the fuel tank cover to filter the inhaled air. At the same time, the air filter is also an oil injection port, and the injected new working oil must be filtered before entering the oil tank, thereby filtering out the dirt particles in the oil.

In the hydraulic system, the purification of working oil is a very important link. The air filter can keep the oil in the fuel tank clean, which can prevent dirt particles from entering the fuel tank from the outside, thus ensuring the normal operation of the hydraulic system. In addition, when the hydraulic system is working, the air filter can maintain the balance between the pressure in the oil tank and the atmospheric pressure, so as to avoid the possible cavitation phenomenon of the pump.

Order selection: If you have the original model, please order according to the model. If there is no model, you can provide the threaded connection size, cap outer diameter size, product material and other accurate technical parameters, and support non-calibration.

SKU: N/A Category: Tags: , ,
Model

QUQ1, QUQ2, QUQ2b, QUQ2.5, QUQ2.5A, QUQ2.5B, QUQ3, QUQ4, QUQ5
