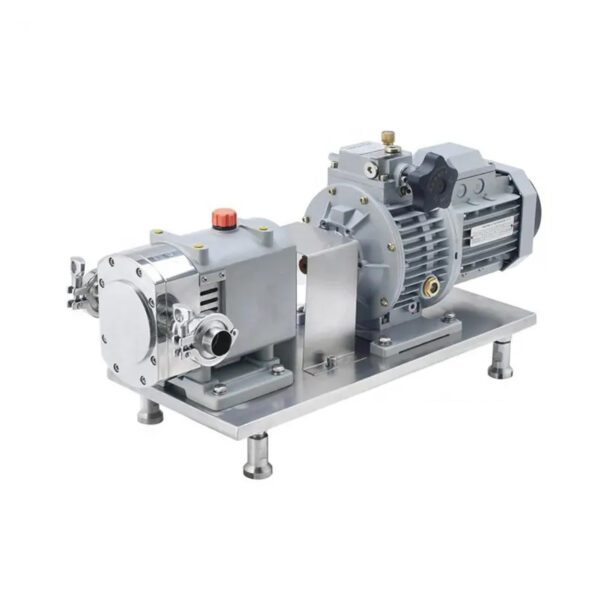

Food grade rotary lobe pump sanitary lobe pump stainless steel lobe pump
Rotor pump is also named rotary lobe pump, three-lobe pump, sole pump, etc. When the 2 simultaneous reverse rotating rotors(with 2-4 gears) revolve, it produces suction force at the inlet(vacuum), which intakes the material delivered.
$1,375.00
Compare

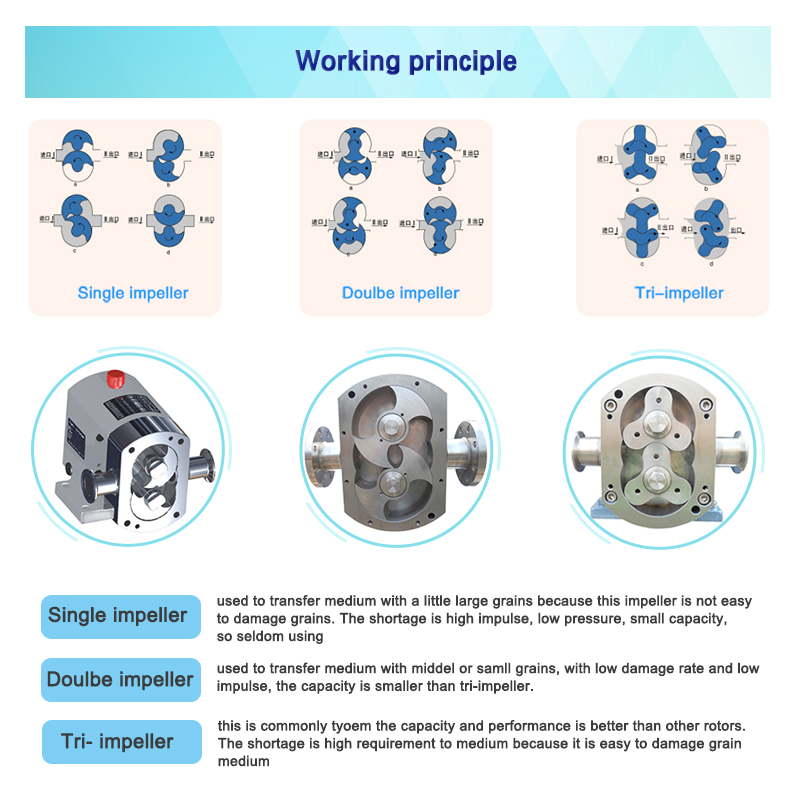

Rotor pump is also named rotary lobe pump, three-lobe pump, sole pump, etc. When the 2 simultaneous reverse rotating rotors(with 2-4 gears) revolve, it produces suction force at the inlet(vacuum), which intakes the material delivered. The 2 rotors divide the rotor housing into many smaller parts and resvoIve in the sequence of a→b→c→d. When it revolves to position a, only housing I is filed with medium; when it revolves to position b, housing B encloses part of the medium, when it goes to position C, housing A encloses medium, and finally it goes to position d, then housing A, B and ll are interlinked and the medium is transported to the outlet. As this process is repeated, medium(material)is transported continuously.
Related products
-
Lobe Pumps
Sanitary stainless steel high viscosity rotor lobe pump syrup molasses honey transfer pump
Lobe PumpsSanitary stainless steel high viscosity rotor lobe pump syrup molasses honey transfer pump
Ransmission Section Selection:
● Motor + Fixed Ratio Reducer: this method of transmission is simple, the rotor speed is constant,
which also determines the flow rate is not adjustable.
● Motor + Mechanical Friction Type Stepless Transmission: this type of transmission is manually adjusted to achieve variable speed. It is characterized by safe and reliable, large torque, flow adjustable stepless. Disadvantages are non-automatic adjustment and more troublesome. The speed must be adjusted in the working process, and it must not be adjusted under stop state. Please refer to the manufacturer’s instructions for use and maintenance
specifications.
● Converter Motor + Converter: the speed can be automatically adjusted in this way, which means that the flow can
be adjusted steplessly. The advantage is that the degree of automation is high and the low speed torque is large; the disadvantage is that the price of the inverter is relatively high. Please refer to the manufacturer’s instruction manual for maintenance specifications.SKU: n/a -
Lobe Pumps
High quality positive displacement rotary lobe pump 3hp stainless sanitary,High viscosity transfer pump
Lobe PumpsHigh quality positive displacement rotary lobe pump 3hp stainless sanitary,High viscosity transfer pump
lobe pump has a variety of configurations,TU series is standard configuration,STU series is all stainless steel .It’s a positive displacement rotary lobe pump designed according to USA 3A-02-11 standard,very suitable for transportation of various high viscosity and low viscosity material,such as food processing,beverage ,juices,dairy products,cosmetics,pharmaceuticals,etc..The pump also can be used for CIP&SIP system and transport material with solid particle.This pump also have performance not found in other volumetric pump,such as low pulse which high pressure,bi-directional reversible inlet/outlet and flexible function combination.
SKU: n/a -
Lobe Pumps
Food grade rotary lobe sanitary pump positive displacement pump for Chocolate,oil,honey transfer,High viscosity jam transfer pump Filling food syrup pump
Lobe PumpsFood grade rotary lobe sanitary pump positive displacement pump for Chocolate,oil,honey transfer,High viscosity jam transfer pump Filling food syrup pump
Features:
1. All parts in contact with the medium (material) are made of high-quality stainless steel (material SUS304, AISI316, 316L) in full compliance with hygienic standards.
2. It is suitable for conveying high viscosity, high concentration and any medium (material) containing particles.
3. The suitable temperature is -30 to +200 degrees Celsius.
4. High pressure, suitable for long-distance and high-resistance quantitative delivery.
5. The speed is low, generally between 200 rpm and 600 rpm, and the materials conveyed by it keep the original quality without any physical and chemical reactions. 6. There is absolutely no contact between the rotor and the rotor, and there is no wear and tear after long-term use. The operation is stable, the noise is low, and the benefit is high.
7. The design is novel, the installation and maintenance are simple and easy, and it is convenient to clean, so as to ensure the sanitation and cleanliness of the inside of the machine and production.SKU: n/a -
Lobe Pumps
Transfer batter rotary lobe pump stainless steel 4.0GPM 4bar 1.2in 1.5HP 170RPM Stainless steel cam-rotor pump
Lobe PumpsTransfer batter rotary lobe pump stainless steel 4.0GPM 4bar 1.2in 1.5HP 170RPM Stainless steel cam-rotor pump
A rotary lobe pump is a positive displacement pump with two rotors in the pump head. The two rotors are fixed to the two shafts and rotate synchronously in the opposite direction. The rotation creates a vacuum volume on the inlet side. The liquid is drawn into the pump head and travels in the chamber between the rotor and the pump head housing and is extruded on the outlet side. The pump has a wide range of viscosity suitability. It has the characteristics of low speed, high efficiency, stable operation, strong self-priming ability, convenient pump operation and preheating. The pump features a multi-style seal for reliable performance and long life. It is an ideal conveying equipment for food, pharmaceutical, chemical, oil, daily life and so on.
SKU: n/a
