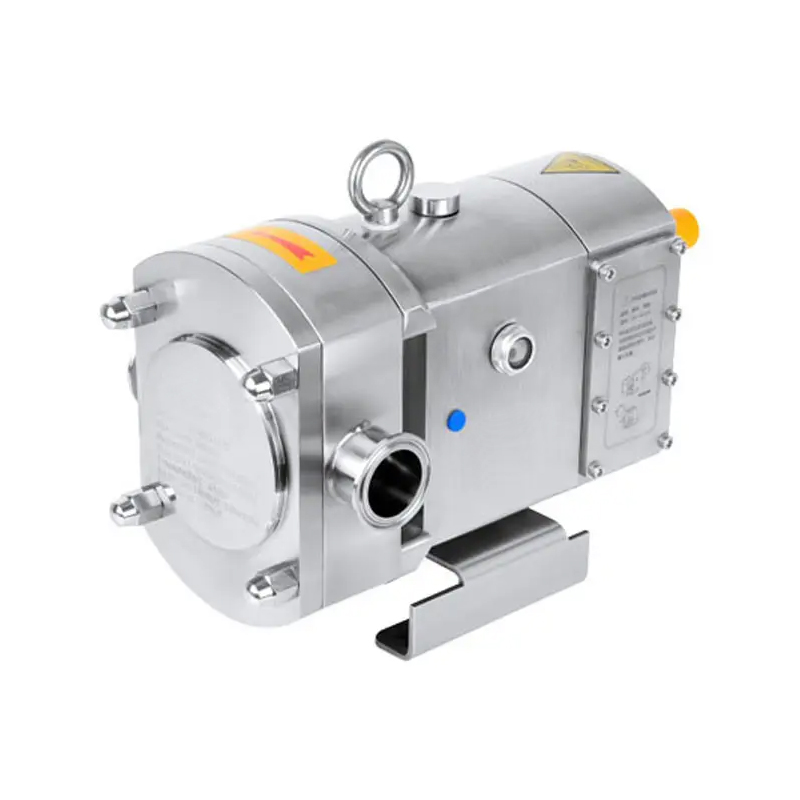

High quality positive displacement rotary lobe pump 3hp stainless sanitary,High viscosity transfer pump
lobe pump has a variety of configurations,TU series is standard configuration,STU series is all stainless steel .It’s a positive displacement rotary lobe pump designed according to USA 3A-02-11 standard,very suitable for transportation of various high viscosity and low viscosity material,such as food processing,beverage ,juices,dairy products,cosmetics,pharmaceuticals,etc..The pump also can be used for CIP&SIP system and transport material with solid particle.This pump also have performance not found in other volumetric pump,such as low pulse which high pressure,bi-directional reversible inlet/outlet and flexible function combination.
$1,500.00
CompareHigh quality positive displacement rotary lobe pump 3hp stainless sanitary
Lobe pump has a variety of configurations,TU series is standard configuration,STU series is all stainless steel .It’s a positive displacement rotary lobe pump designed according to USA 3A-02-11 standard,very suitable for transportation of various high viscosity and low viscosity material,such as food processing,beverage ,juices,dairy products,cosmetics,pharmaceuticals,etc..The pump also can be used for CIP&SIP system and transport material with solid particle.This pump also have performance not found in other volumetric pump,such as low pulse which high pressure,bi-directional reversible inlet/outlet and flexible function combination.
|
Place of Origin
|
China
|
|
Application
|
Food and Beverage Industry, Pharmaceutical industry, Water Treatment Solutions
|
|
Power Source
|
Electric
|
|
Pressure
|
Low Pressure
|
|
Structure
|
Lobe Pump
|
|
Outlet Size
|
1″/2″/3″/4″/5″
|
|
Voltage
|
220V/380V/440V/460V/630V/690V
|
|
Power
|
1.1KW-18.8KW
|
|
Max Flow
|
48.3m3/h
|
|
Max pressure
|
15 bar
|
|
Max temperature
|
150℃
|
|
Max Rev
|
750rpm
|
|
Surface treatment
|
≤ Ra0.8μm, ≤ Ra0.6um
|
|
Material
|
316L ,1.4404,ASME BPE 316L, 1.4435 NB2 Fe≤0.5%
|
|
Certificate
|
3A,CE
|
|
Configuration
|
Without motor /With motor
|
Based on 0 reviews
Be the first to review “High quality positive displacement rotary lobe pump 3hp stainless sanitary,High viscosity transfer pump”
