Flexible Configuration UF Membrane Filtration Production Solution

UF Membrane Filtration Production Solution Product Introduction

Flexible Configuration UF Membrane Filtration Production Solution is an advanced ultrafiltration membrane system designed for industrial membrane filtration, water purification, precision separation, pretreatment applications, and customized production environments. Featuring a flexible modular configuration design, the system can be adapted to different treatment capacities, operating pressures, membrane layouts, automation requirements, and process conditions.

Combining high-efficiency UF membrane technology, intelligent PLC automation, industrial circulation systems, and precision filtration engineering, the equipment delivers reliable separation performance, stable permeate quality, low energy consumption, and continuous industrial operation. The solution effectively removes suspended solids, colloids, bacteria, macromolecules, emulsified particles, fine contaminants, and organic impurities.

Widely suitable for industrial water treatment, organic solvent filtration, process fluid purification, membrane pretreatment, pharmaceutical separation, food & beverage processing, chemical filtration, municipal treatment, and customized membrane projects.

Industrial Filtration Challenges

Industrial membrane filtration projects often require greater flexibility than conventional systems.

Common challenges include:

• Different feed liquids requiring customized membrane configurations
• Varying operating pressure and filtration conditions
• Inflexible traditional filtration layouts
• High maintenance requirements and system downtime
• Difficult integration with existing production lines
• Unstable filtration performance under complex feed conditions
• Limited automation capability
• High lifecycle operating costs

Standard systems frequently cannot meet specialized separation, purification, or customized production demands.

Our Solution

Our Flexible Configuration UF Membrane Filtration Production Solution is engineered to provide customized membrane filtration capability with scalable engineering flexibility.

Key benefits include:

• Flexible membrane module configuration
• Customized flow and pressure design
• Intelligent PLC automatic control
• High-efficiency ultrafiltration separation
• Stable continuous production operation
• Modular expansion capability
• Reduced maintenance workload
• Strong adaptability to different process requirements

The system supports multiple industries requiring reliable filtration performance and customizable membrane engineering solutions.

System Configuration

The solution can be configured according to project requirements.

Typical configuration includes:

• Raw liquid or feed storage tank
• Industrial feed pump system
• Circulation pump module
• Precision pretreatment filter

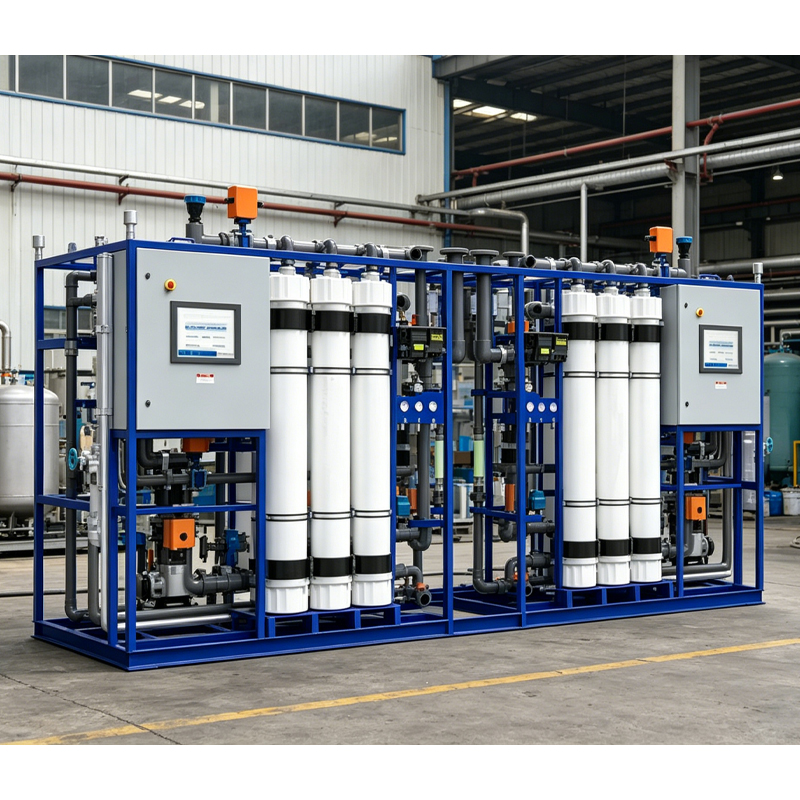

• UF membrane separation skid
• PLC intelligent control cabinet
• HMI touch screen operation panel
• Pressure, flow, conductivity, and temperature sensors
• Automatic backwash system
• CIP membrane cleaning station
• Permeate collection module
• Concentrate discharge system
• Optional dosing, UV, sterilization, or solvent-compatible modules

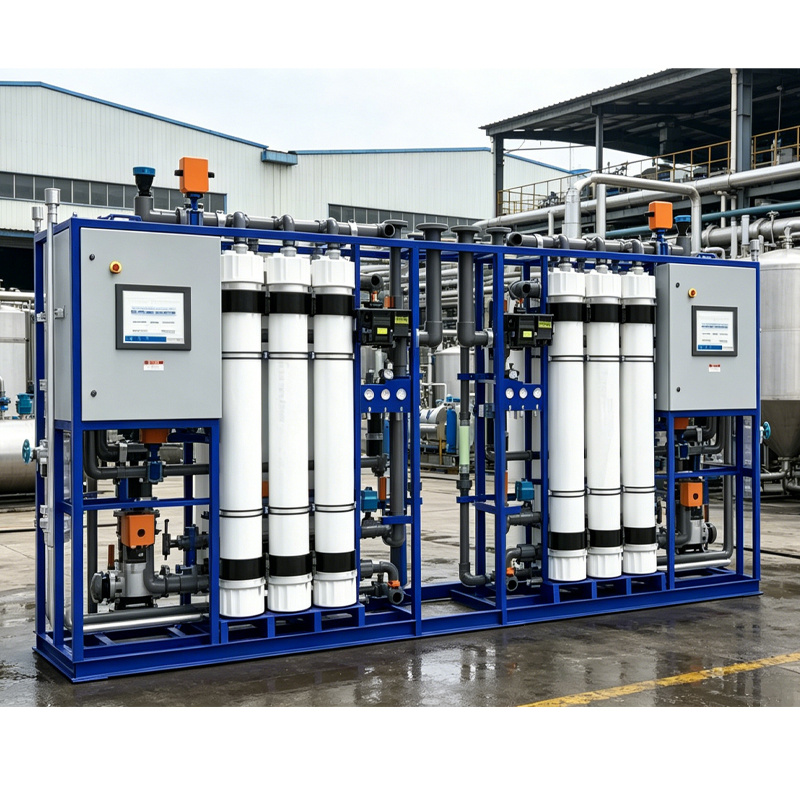

The modular skid-mounted structure allows flexible installation and future production upgrades.

Working Principle

Step 1: Feed liquid enters the pretreatment section.

Step 2: Pretreatment modules reduce larger contaminants and protect membrane performance.

Step 3: Industrial pumps transfer fluid into the UF membrane filtration unit.

Step 4: Ultrafiltration membranes separate contaminants, suspended solids, bacteria, colloids, and high-molecular substances.

Step 5: Purified permeate is collected for reuse, downstream processing, or product applications.

Step 6: Concentrated streams are discharged or recirculated based on process design.

Step 7: Automatic cleaning and backwash cycles maintain membrane efficiency and operational stability.

Why Choose This Flexible UF Solution

Choosing a flexible membrane filtration system directly impacts purification precision, operating stability, and production adaptability.

Our solution provides:

• Flexible engineering configuration capability
• Advanced UF membrane separation technology
• Intelligent automatic control systems
• Strong compatibility with different feed liquids
• Reliable industrial operating performance
• Lower maintenance and cleaning frequency
• Scalable production design
• Competitive long-term operating cost

Compared with conventional membrane systems, the equipment offers greater configuration flexibility, stronger process adaptability, and improved separation efficiency.

Product Advantages

Flexible Modular Configuration

System layout, membrane quantity, capacity, pressure range, and automation level can be customized according to production requirements.

Advanced UF Membrane Technology

High-performance membranes provide excellent separation precision and stable filtration efficiency.

Intelligent PLC Automation

PLC + HMI control supports automatic monitoring, alarms, operating adjustments, and simplified management.

Strong Process Adaptability

Suitable for water treatment, solvent filtration, process purification, and complex industrial separation projects.

Reliable Industrial Engineering Design

Heavy-duty construction supports demanding operating environments and continuous production.

Technical Specifications

Item	Specification
Product Name	Flexible Configuration UF Membrane Filtration Production Solution
System Type	Ultrafiltration Membrane Filtration System
Filtration Technology	UF Membrane Separation
Processing Capacity	0.5–200 m³/H Optional
Recommended Capacity	1T/H – 100T/H
Membrane Type	Hollow Fiber / Tubular UF Membrane
Membrane Material	PVDF / PES / PAN / Ceramic Optional
Filtration Accuracy	0.01–0.1 Micron
Recovery Rate	Up To 85–98%
Operating Pressure	0.1–7.0 MPa Optional
Max Design Pressure	Up To 70 Bar Configurable
Feed Water Temperature	5–80°C Optional
Feed pH Range	2–13
Feed Source	Water / Process Liquid / Solvent / Industrial Fluid
Pump Type	Centrifugal Pump / Diaphragm Pump / High Pressure Pump
Control System	PLC + HMI Touch Screen
Monitoring Parameters	Flow / Pressure / Temperature / Conductivity / pH
Cleaning Method	Automatic Flush + CIP Cleaning
Backwash Function	Automatic Backwash
Frame Material	SUS304 / SUS316L / Carbon Steel
Pipe Material	Stainless Steel / UPVC / PTFE Optional
Voltage	220V / 380V / 415V / Customized
Frequency	50Hz / 60Hz
Installation Type	Skid Mounted / Modular
Automation Level	Semi-Automatic / Fully Automatic
Protection Level	IP54 / IP65 Optional
Design Service Life	10–15 Years

Optional Configurations

• Organic solvent compatible membrane package
• High-pressure membrane module
• Explosion-proof electrical system
• Remote monitoring platform
• Variable frequency drive control
• Containerized filtration solution
• Heat-resistant membrane upgrade
• Sanitary food-grade configuration
• Multi-stage membrane integration

Application Scenarios

Suitable for:

• Industrial water purification
• Organic solvent filtration
• Chemical process separation
• Pharmaceutical membrane filtration
• Food and beverage clarification
• Municipal water treatment
• Process liquid purification
• RO pretreatment systems
• Recycling water treatment
• Customized membrane separation projects

Engineering Advantages

Built for complex industrial filtration applications.

Engineering strengths include:

• Flexible process configuration
• High membrane separation precision
• Stable continuous operation
• Low fouling engineering design
• Easy maintenance accessibility
• Strong scalability and integration capability
• Reliable automation management

Capacity Options

Available processing ranges include:

• 0.5–5 m³/H compact membrane filtration units
• 5–20 m³/H medium industrial filtration systems
• 20–100 m³/H large industrial membrane projects
• 100–200 m³/H customized high-capacity production solutions

Custom engineering development is available.

FAQ

1. What makes this UF system “flexible configuration”?

The system supports customized membrane types, capacities, pressure ranges, materials, automation levels, and module layouts.

2. Can it be used for solvent filtration?

Yes. Solvent-compatible configurations and membrane materials are available.

3. Is automatic operation supported?

Yes. PLC control, automatic monitoring, backwash, and cleaning functions are supported.

4. What industries commonly use this solution?

Water treatment, pharmaceuticals, chemicals, food processing, industrial manufacturing, and customized membrane projects.

5. Can the equipment be customized?

Yes. Capacity, pressure, membrane materials, control systems, piping, and engineering layouts can be customized.

6. Why choose your membrane production solution?

We provide advanced membrane technology, flexible engineering configuration, reliable automation, industrial-grade manufacturing, and professional technical support.

Contact us to get your quotation now.
