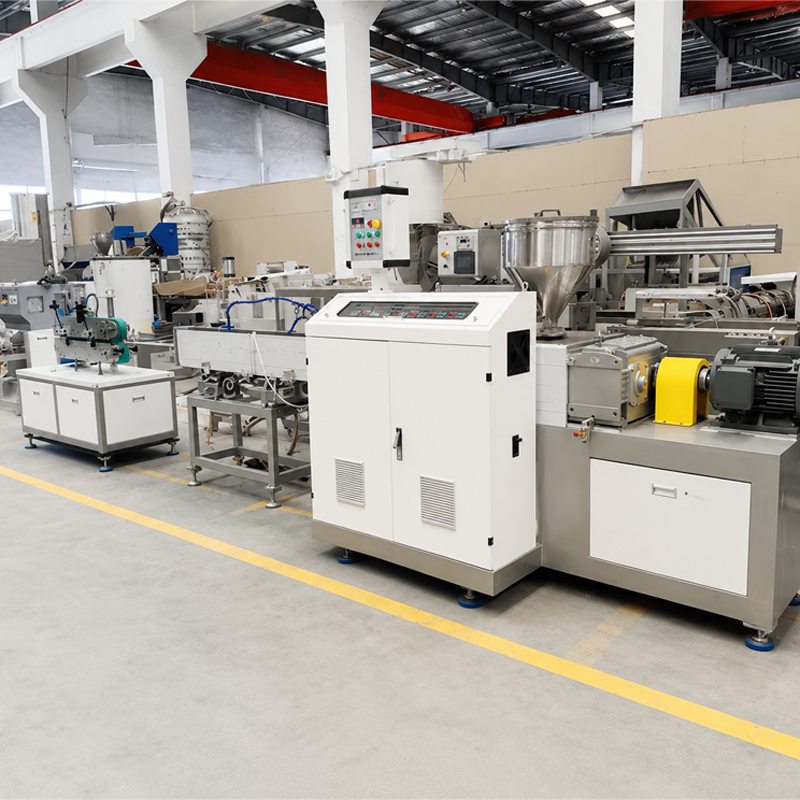

FEP Extrusion Machine for Precision Tube Production

FEP Extrusion Machine Product Introduction

FEP Extrusion Machine for Precision Tube Production is a specialized extrusion system developed for manufacturing high-performance fluoroplastic tubes with excellent dimensional accuracy and surface quality. The machine is designed to process advanced fluoropolymer materials such as FEP, PFA, ETFE and other heat-resistant plastics.

The extrusion line integrates precision extrusion, temperature-controlled forming, water cooling calibration, stable pulling and automatic winding systems to ensure continuous and reliable tube production. With optimized screw design, accurate temperature control and advanced process adjustment, it can produce transparent tubes with uniform thickness, smooth inner and outer surfaces and stable mechanical performance.

This precision tube extrusion machine is widely used for medical tubes, chemical transport pipes, electrical insulation tubes, laboratory tubing and other high-performance fluoroplastic applications. The equipment can be customized according to tube diameter, material characteristics and production requirements.

Industry Pain Points

Manufacturers of high-performance plastic tubes often require extremely accurate dimensions, excellent chemical resistance and stable production quality. Traditional extrusion equipment may face challenges such as uneven tube thickness, unstable extrusion pressure, poor surface finish and difficulty processing high-temperature fluoropolymer materials.

Our Solution

The FEP Extrusion Machine provides a complete solution for precision fluoroplastic tube manufacturing through advanced extrusion technology, accurate temperature management and stable forming systems. The optimized design ensures uniform tube dimensions, smooth surfaces and consistent quality while improving production efficiency and reducing material waste.

Working Principle

Material Feeding

FEP or other fluoropolymer raw materials are fed into the extrusion system and transported through the precision screw mechanism.

Plasticizing and Extrusion

The material is heated and melted under accurate temperature control before being continuously extruded through a precision-designed die.

Tube Forming and Calibration

The molten tube passes through a cooling calibration system to achieve accurate diameter control and stable tube shape.

Cooling and Pulling

The formed tube is cooled and continuously pulled by the traction system to maintain consistent production speed.

Winding and Collection

Finished fluoroplastic tubes are automatically collected through the winding system for storage or further processing.



Key Features & Advantages

Precision Tube Extrusion

Designed for manufacturing high-accuracy fluoroplastic tubes with consistent diameter and wall thickness.

Excellent Material Compatibility

Suitable for FEP, PFA, ETFE and other fluoropolymer materials with high temperature and chemical resistance.

Stable Extrusion Performance

Advanced screw design and temperature control ensure uniform melting and continuous production.

High Surface Quality

Provides smooth inner and outer tube surfaces suitable for demanding applications.

Accurate Cooling and Calibration

Optimized cooling system improves dimensional stability and product consistency.

Continuous Automatic Production

Integrated extrusion, cooling, pulling and winding systems improve production efficiency.

Customized Configuration

Tube diameter, production speed and equipment configuration can be adjusted according to customer requirements.

Technical Parameters

Parameter	Specification
Equipment Type	FEP Precision Tube Extrusion Machine
Applicable Materials	FEP, PFA, ETFE, Fluoroplastics
Processing Type	Precision Tube Extrusion
Product Type	Fluoroplastic Tube
Extrusion Method	Continuous Extrusion
Cooling Method	Water Cooling Calibration
Forming System	Precision Die and Calibration System
Pulling System	Automatic Traction System
Winding System	Automatic Tube Collection
Temperature Control	Multi-Zone Precise Temperature Control
Control System	PLC Touch Screen Control
Tube Application	Medical, Chemical, Electrical and Industrial Tubing
Production Mode	Continuous Automatic Production
Customization	Available According to Tube Size and Material Requirements

Application Scenarios

Medical Tube Production

Used for manufacturing high-purity fluoroplastic tubes for medical devices, laboratory equipment and fluid transfer systems.

Chemical Resistant Tubing

Suitable for producing corrosion-resistant tubes used in chemical processing and industrial fluid transportation.

Electrical Insulation Tube Manufacturing

Used for producing insulating tubes for wires, cables and electronic components requiring high temperature resistance.

Laboratory Tubing Production

Provides precision tubes for analytical instruments, testing equipment and laboratory fluid systems.

Semiconductor Industry Applications

Used for producing high-cleanliness fluoropolymer tubes for semiconductor processing equipment.

Aerospace Material Processing

Suitable for manufacturing lightweight and high-performance tubes used in aerospace applications.

Automotive Components

Used for producing specialty tubes requiring chemical resistance and temperature stability.

Industrial Fluid Transfer Systems

Applied in industries requiring reliable fluoroplastic piping solutions.

Industry Applications

Medical Industry

FEP tubes are widely used in medical equipment, catheters and high-purity fluid delivery systems due to their excellent biocompatibility and chemical resistance.

Chemical Processing Industry

Used for producing corrosion-resistant tubing for aggressive chemicals, solvents and industrial fluids.

Electrical and Electronics Industry

Provides insulation tubes and protective components for high-temperature electrical applications.

Semiconductor Industry

Suitable for clean and precise fluid transportation systems in semiconductor manufacturing.

Pharmaceutical Industry

Used for hygienic and chemical-resistant tubing in pharmaceutical processing equipment.

Laboratory Equipment Industry

Provides precision tubing solutions for analytical instruments and research equipment.

Aerospace Industry

Used for high-performance lightweight tubing requiring temperature resistance and durability.

Automotive Industry

Applied in specialty automotive systems requiring reliable fluoropolymer components.



FAQ

1. What materials can this FEP extrusion machine process?

The machine is mainly designed for FEP but can also process fluoropolymers such as PFA and ETFE.

2. What products can be produced by this extrusion line?

It is mainly used for producing precision fluoroplastic tubes with smooth surfaces and accurate dimensions.

3. What are the advantages of FEP tubes?

FEP tubes provide excellent chemical resistance, high temperature resistance, electrical insulation and transparency.

4. Is this machine suitable for medical tube production?

Yes, it can be used for manufacturing high-purity FEP tubes for medical and laboratory applications.

5. How does the machine ensure tube dimensional accuracy?

The precision die, cooling calibration system and stable traction system ensure consistent tube dimensions.

6. Can the extrusion line produce different tube sizes?

Yes, the machine can be customized according to required tube diameter, wall thickness and production speed.

7. What industries use FEP extrusion equipment?

It is widely used in medical, chemical, semiconductor, electrical, pharmaceutical and aerospace industries.

8. Does the machine support automatic operation?

Yes, the extrusion line can integrate PLC control, automatic temperature adjustment and production monitoring.

9. What makes this equipment different from standard plastic extruders?

It is specially designed for high-performance fluoroplastics requiring precise processing conditions.

10. Can the equipment be customized for special applications?

Yes, the extrusion system can be configured according to material characteristics and customer production requirements.
