Disc Centrifuge For Virgin Coconut Oil Separation

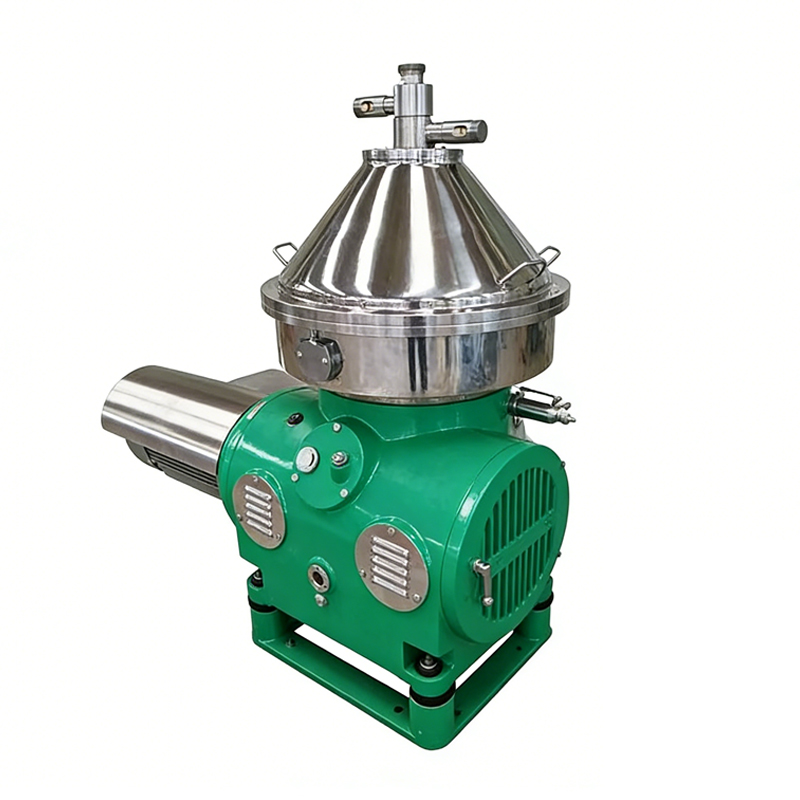

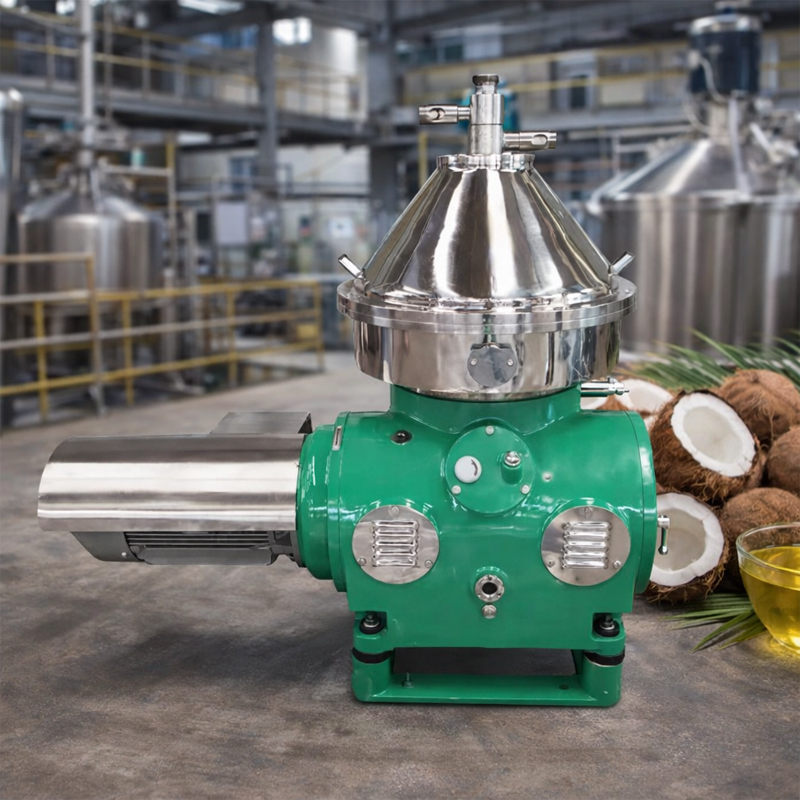

Virgin Coconut Oil Disc Centrifuge Product Description

The virgin coconut oil disc centrifuge is a high-speed separation machine designed for the purification of coconut oil after pressing or extraction processes. The equipment adopts disc stack centrifuge technology, which provides efficient separation of oil, water, and solid impurities in liquid mixtures.

Heavier phases such as water and solid particles move outward toward the bowl wall, while the lighter oil phase moves toward the center and is discharged through the liquid outlet. This process effectively removes moisture and impurities, improving the clarity and quality of virgin coconut oil.

The centrifuge is widely used in coconut oil processing plants, edible oil production lines, and agricultural oil extraction facilities. It is especially suitable for virgin coconut oil production where maintaining oil purity and natural flavor is essential.

Technical Specifications

Parameter	Value
Bowl diameter	440 mm – 800 mm
Sliding piston	380-700 mm
Theoretical capacity	1-25 m³/h
Maximum speed	7100 rpm
Maximum strength	1300G
Motor power	11-45 kW
Raw materials	Solids <3%

Working Principle

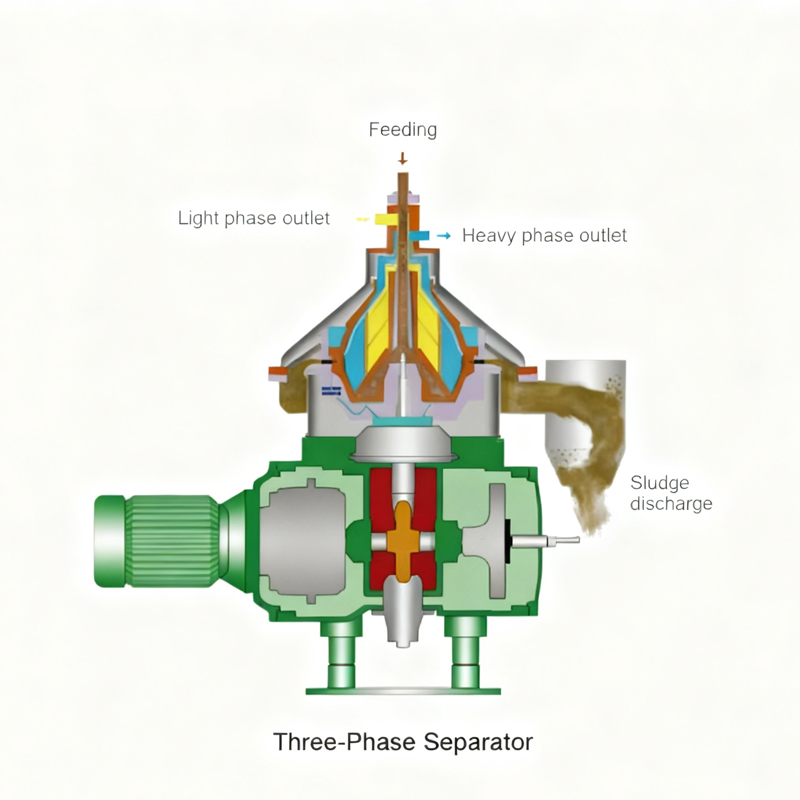

The virgin coconut oil disc centrifuge operates based on high-speed centrifugal separation.

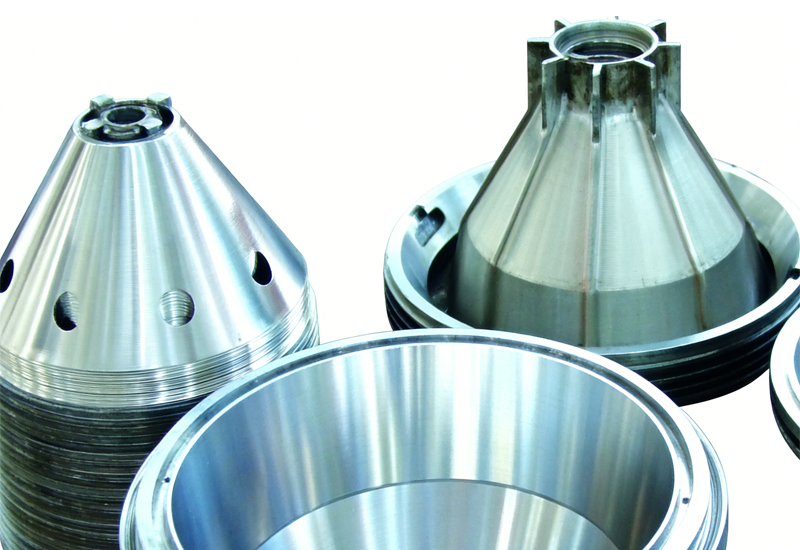

When the oil mixture enters the centrifuge bowl, the bowl rotates at high speed, generating centrifugal force thousands of times greater than gravity. Inside the bowl, a stack of conical discs creates multiple thin separation layers.

Under centrifugal force, components with higher density such as water droplets and solid impurities move outward toward the bowl wall. The lighter oil phase flows inward and exits through the clean oil outlet.The disc stack greatly increases the effective separation area, allowing faster and more efficient phase separation compared to traditional settling methods.

This technology ensures high separation efficiency, improved oil clarity, and stable continuous operation in coconut oil processing systems.

Key Features

• High-speed disc stack separation technology provides efficient removal of water and impurities from virgin coconut oil.
• Large separation area created by multiple discs improves separation efficiency and processing capacity.
• Stainless steel construction ensures food-grade safety and corrosion resistance during edible oil processing.
• Automatic control system enables stable operation and easy monitoring of processing parameters.
• Compact design allows easy integration into coconut oil extraction and purification production lines.
• Continuous separation operation improves productivity and reduces manual handling during oil purification.

Applications

The virgin coconut oil disc centrifuge is widely used in edible oil processing and agricultural product industries.
Typical applications include:

• virgin coconut oil purification after cold pressing
• edible coconut oil processing plants
• coconut milk oil extraction processes
• small and medium edible oil production lines
• tropical oil processing facilities
• agricultural oil extraction industries

By removing water and fine impurities, the centrifuge helps improve oil clarity, extend shelf life, and enhance the quality of virgin coconut oil products.

Why Choose Our Disc Centrifuge

• Advanced disc stack separation technology ensures efficient oil purification and stable separation performance.
• Food-grade stainless steel materials meet hygienic requirements for edible oil production.
• High-speed operation improves oil clarity and reduces moisture content effectively.
• Automatic control system simplifies operation and improves production efficiency.
• Customizable configurations allow the centrifuge to adapt to different coconut oil production capacities.

FAQ

• What materials can this centrifuge process?
  The centrifuge is mainly used for virgin coconut oil purification but can also process other edible oils.
• Is the machine suitable for food processing?
  Yes, the equipment is made of food-grade stainless steel materials suitable for edible oil production.
• Can the centrifuge operate continuously?
  Yes, the disc centrifuge is designed for continuous operation with stable separation performance.
• What is the typical capacity?
  The capacity generally ranges from 500 to 3000 liters per hour depending on the model.
