Automatic PET Bottle Water Filling Machine Supplier

Product introduction of PET Bottle Water Filling Machine

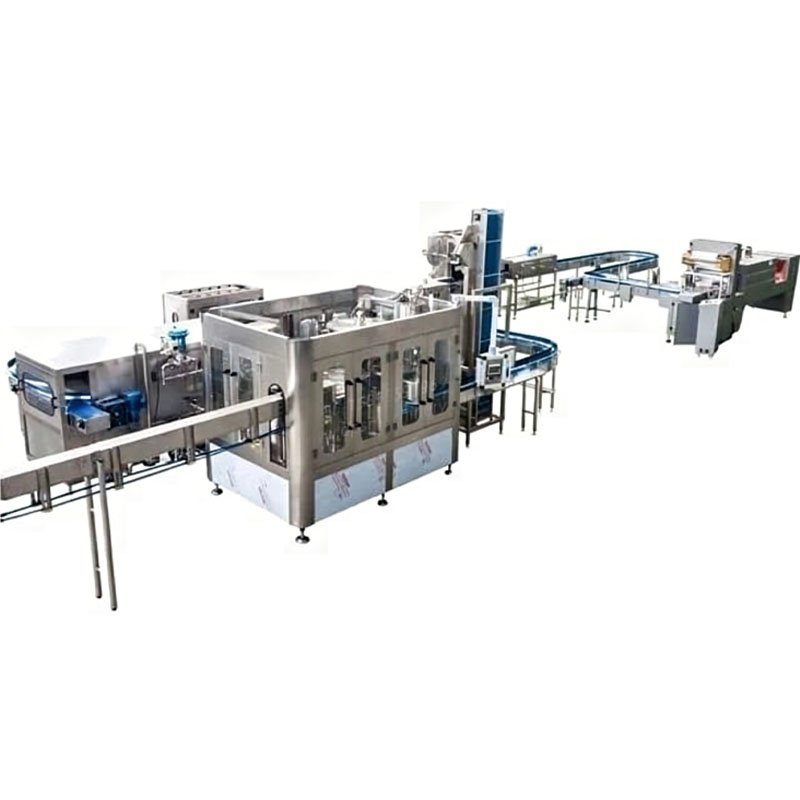

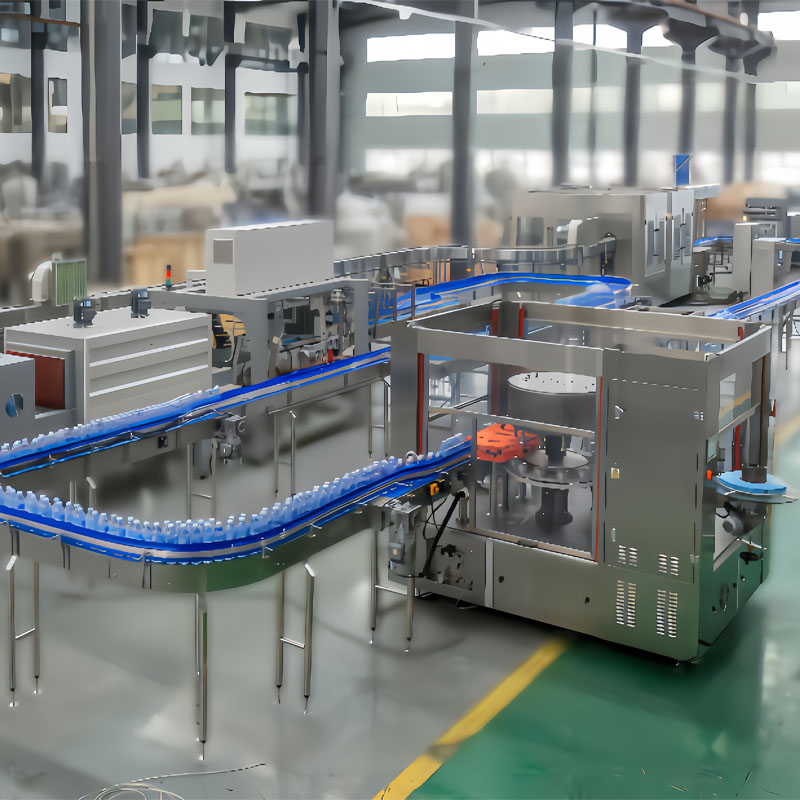

The PET Bottle Water Filling Machine integrates bottle washing, liquid filling, and cap sealing into one compact automatic bottling system. It is widely used for bottled drinking water, purified water, mineral water, spring water, and other non-carbonated liquid products.

This automatic water bottling equipment adopts advanced PLC control technology and photoelectric detection systems to ensure synchronized operation and stable production performance. The complete filling line improves production efficiency while reducing labor costs and contamination risks.

All liquid-contact components are manufactured from premium food-grade stainless steel with precision polishing treatment for hygienic production standards. The machine supports various PET bottle sizes and production capacities, making it suitable for small beverage workshops and large-scale bottled water manufacturing plants.

Working principle

Step 1. Automatic Bottle Feeding

Empty PET bottles are transferred into the rinsing system through the air conveyor automatically.

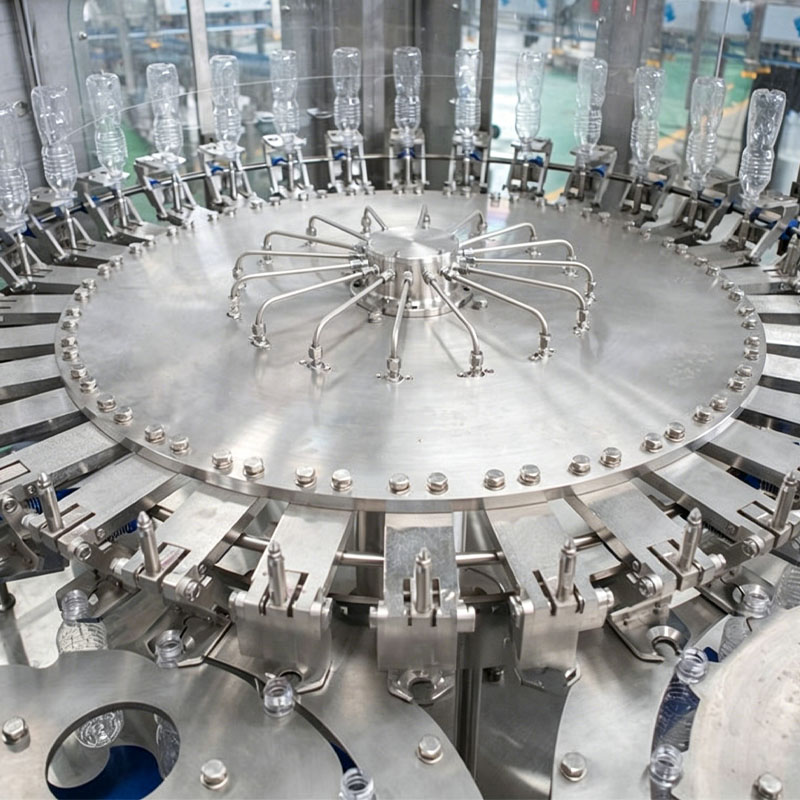

Step 2. Bottle Washing Process

High-pressure stainless steel rinsing nozzles clean the internal bottle surface to remove dust and impurities.

Step 3. Automatic Bottle Transfer

Clean bottles are transferred directly into the filling section through synchronized mechanical grippers.

Step 4. Precision Water Filling

The filling valves inject purified water or mineral water into bottles with controlled liquid levels.

Step 5. Cap Feeding and Placement

Bottle caps are automatically sorted and delivered into the capping unit through the cap elevator.

Step 6. Automatic Bottle Capping

The capping heads tighten bottle caps securely to ensure leak-proof packaging quality.

Step 7. Finished Bottle Output

Completed bottles are discharged to the conveyor system for labeling, packaging, and palletizing.

Product Parameter Table

Parameter	Specification
Rinsing head	18
Filling head	18
Capping head	6
Capacity	6000-8000 BPH
Power	3.8 kW
Overall size (mm)	2400 × 1830 × 2400
Weight (kg)	3500

PET Bottle Water Filling Machine vs Traditional Semi-Automatic Equipment

Main Features

1. Fully Automatic Monoblock Structure

Integrates bottle rinsing, liquid filling, and capping into one compact production unit.

2. Food-Grade Stainless Steel Construction

304/316 stainless steel contact parts ensure hygienic and corrosion-resistant beverage production.

3. Intelligent No Bottle Protection

Automatically stops filling and capping when bottles are missing to reduce material waste.

4. High-Precision Filling Technology

Accurate filling valves maintain stable liquid levels and minimize product overflow.

5. Advanced PLC Control System

Touchscreen operation simplifies parameter adjustment and improves production management efficiency.

6. Energy-Saving Water Rinsing Design

Optimized rinsing nozzles reduce water consumption while improving bottle cleaning performance.

7. Stable High-Speed Operation

Suitable for continuous industrial bottled water production with low maintenance requirements.

8. Flexible Bottle Compatibility

Supports multiple PET bottle shapes, capacities, and cap specifications for flexible production.

9. Hygienic Liquid Tank Design

Mirror-polished internal surfaces eliminate dead corners and simplify cleaning procedures.

10. Reliable Capping Performance

Automatic cap feeding and sealing system ensures tight and leak-proof bottle packaging.

Why Choose This PET Bottle Water Filling Machine

1. Reduce Labor Costs

The fully automatic bottling process minimizes manual operation and improves production efficiency.

2. Improve Filling Accuracy

Advanced filling technology reduces liquid waste and maintains consistent bottle volume.

3. Ensure Hygienic Production

Food-grade stainless steel construction meets beverage industry sanitation requirements.

4. Lower Maintenance Frequency

Durable machine components provide stable long-term operation with reduced downtime.

5. Support Large Production Capacity

Suitable for continuous high-speed bottled water manufacturing applications.

6. Save Factory Space

Compact monoblock structure reduces equipment footprint and simplifies installation layout.

7. Increase Production Stability

PLC automation system ensures synchronized operation and consistent production quality.

8. Suitable for Multiple Water Products

Compatible with purified water, mineral water, spring water, and non-carbonated beverages.

Application Scenarios

1. Bottled Drinking Water Factory

Suitable for purified water and packaged drinking water production plants.

2. Mineral Water Production Line

Widely used for automatic mineral water bottling and packaging operations.

3. Spring Water Packaging Facility

Supports hygienic filling requirements for natural spring water manufacturers.

4. Beverage Manufacturing Plant

Applicable for juice drinks, flavor water, and non-carbonated liquid bottling systems.

5. OEM Beverage Processing Company

Ideal for contract beverage production and private label bottled water businesses.

6. Commercial Water Packaging Industry

Used in industrial liquid packaging factories requiring stable filling performance.

Buying Guide for PET Bottle Water Filling Machine

1. Choose Production Capacity Carefully

Select suitable capacities such as 2000BPH, 6000BPH, 12000BPH, or higher according to factory output requirements.

2. Confirm Bottle Specifications

Verify bottle volume, bottle neck diameter, and cap type before equipment selection.

3. Evaluate Material Standards

Food-grade 304/316 stainless steel is recommended for long-term hygienic beverage production.

4. Check Automation Configuration

Machines with PLC control and touchscreen systems improve operational convenience and production stability.

5. Consider Future Expansion

Choose filling systems supporting future production upgrades and additional packaging equipment.

6. Verify After-Sales Support

Reliable technical support and spare parts service are important for industrial bottling operations.

7. Match Production Layout

Confirm factory space, conveyor direction, and power requirements before installation planning.

FAQ

Q1: What is the production capacity of an automatic PET bottle water filling machine?

A: The production capacity commonly ranges from 2000BPH to 24000BPH depending on bottle size and machine configuration.

Q2: Can the machine fill both pure water and mineral water?

A: Yes, the equipment is designed for purified water, mineral water, spring water, and non-carbonated beverages.

Q3: Is the water filling machine suitable for different PET bottle sizes?

A: Yes, the machine supports various PET bottle capacities with adjustable filling and conveying systems.

Q4: What material is used for the liquid-contact parts?

A: All liquid-contact components are manufactured from food-grade 304 or 316 stainless steel.

Q5: Does the machine support automatic cap feeding?

A: Yes, the automatic capping system includes cap sorting, feeding, and tightening functions.

Q6: How does the no bottle no filling system work?

A: Photoelectric sensors detect bottle positions and automatically stop filling without bottle presence.

Q7: Is the automatic water bottling machine easy to clean?

A: Yes, the polished stainless steel structure and hygienic design simplify daily cleaning operations.

Q8: What industries commonly use PET bottle water filling lines?

A: Bottled water factories, beverage plants, food processing companies, and liquid packaging manufacturers widely use this equipment.

Q9: Can the filling machine connect with labeling and packaging equipment?

A: Yes, the machine can integrate with labeling machines, shrink wrappers, carton packers, and palletizers.

Q10: Why do beverage factories prefer fully automatic filling machines?

A: Automatic bottling systems improve efficiency, reduce labor costs, enhance hygiene, and increase production consistency.

Conclusion

The PET Bottle Water Filling Machine is an efficient and reliable automatic bottling solution for purified water, mineral water, and beverage production industries. Combining bottle rinsing, precision filling, and automatic capping into one integrated monoblock system, the equipment delivers stable performance, hygienic operation, and reduced production costs. With flexible bottle compatibility, intelligent PLC control, and durable stainless steel construction, this water bottling machine is an ideal choice for modern beverage manufacturing and industrial liquid packaging applications.

Contact us to get your quotation now.

Get in touch with our engineering team.
