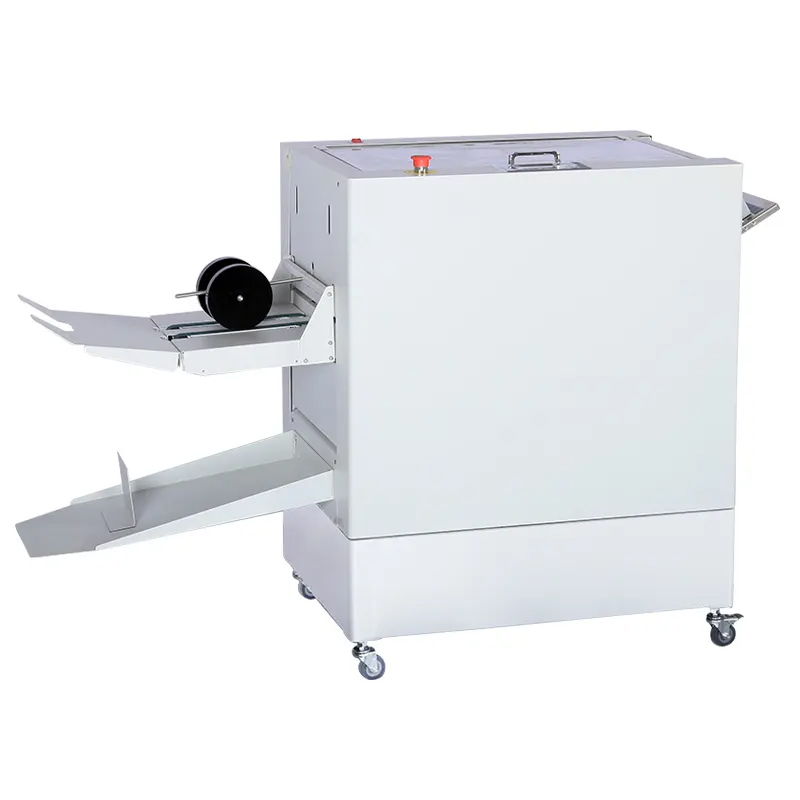

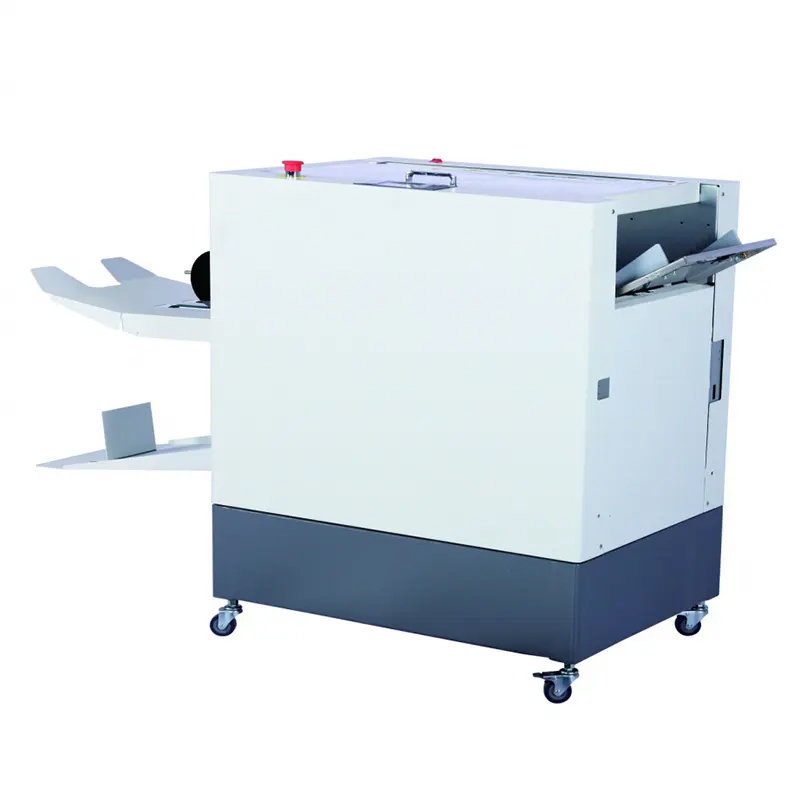

Automatic Booklet Maker Catalog Folding Machine A4 Staple Binding Brochure Staple Saddle Stitch for Book Printing Shop
This is a booklet maker with extremely easy operation and automatic paper size changeover with speed production 2600 booklet per hour of A4 booklets for digital printers.
Simply select stitching type and input paper size on the screen, the paper jog guides inside the machine positioned for input paper size which is only taken 5 seconds be ready for stitching.
- Paper size of saddle Stitching: L260 to 490 mm, W155 to 330 mm
- Paper size of side Stitching: L135 to 270 mm, W155 to 330 mm
- Stitching Thickness of Saddle Stitching: 25 sheets (2.5mm)
- Side Stitching Thickness: 40 sheets (4mm)
$5,100.00
CompareSpecification of the Automatic Booklet Maker
| Stitching Heads Type | Wire stitching head |
| Stitching Mode | saddle stitching, side stitching, fold only |
| No.of Stitching Heads | 0-2 |
| Paper Thickness | 60-300 gsm |
| Paper size of saddle stitching | L260 to 490 mm, W155 to 330 mm |
| Paper size of side Stitching | L135 to 270 mm, W155 to 330 mm |
| Stitching Thickness of Saddle Stitching | 25 sheets (2.5mm) |
| Side Stitching Thickness | 40 sheets (4mm) |
| Speed | 2600 sets/h (A4 10 sheets 80g) |
| Distance between 2 stitches | A3:138 mm, A4:68 mm |
| Power Consumption | 110V~220V, 50Hz/60Hz, 150W |
- Flexible. Trimmer is an option.
- Coated Paper. Besides copy paper, machine is good at stitching and folding thick coated paper.
- Automatic Adjustment. Automatically go to a proper position after setting a paper size on the screen.
- Powerful Trimming. 40 sheets trimming thickness.
Related products
-
Case Sealing & Forming
Pneumatic Automatic Carton Sealer 1000PCS/H Box Sealer Case Sealer H-Type Industrial Grade Box Sealing Machine
Case Sealing & FormingPneumatic Automatic Carton Sealer 1000PCS/H Box Sealer Case Sealer H-Type Industrial Grade Box Sealing Machine
The advantage of this machine is that high-quality motors, parts, electrical components and pneumatic components are selected, and the sealing efficiency is high.
Thickened conveyor belt, friction-resistant and durable.
High-quality sealing machine is used to make the tape adhere to the surface of the carton, and the sealing is firm, effective, smooth and beautiful.
Wide range of applications. This product can be used in a variety of industries. It has the characteristics of anti-pollution, anti-oxidation, saving volume, saving freight, extending storage period and ensuring the quality of goods.SKU: n/a -
Case Sealing & Forming
Carton Four Corners Sealer W200mm-500mm H180mm-500mm For Packaging Line Automatic Carton Sealing Machine
Case Sealing & FormingCarton Four Corners Sealer W200mm-500mm H180mm-500mm For Packaging Line Automatic Carton Sealing Machine
Equipped with four conveying motors, it has strong power, high sealing efficiency and smoother conveying.
Thickened conveyor belt, friction-resistant and durable.
Height and width can be adjusted according to carton specifications.
High-quality sealing machine is used to make the tape adhere to the surface of the carton, and the sealing is firm, effective, smooth and beautiful.
Wide range of applications. This product can be used in a variety of industries.SKU: n/a -
Paper Folding, Creasing & Perforating Machines

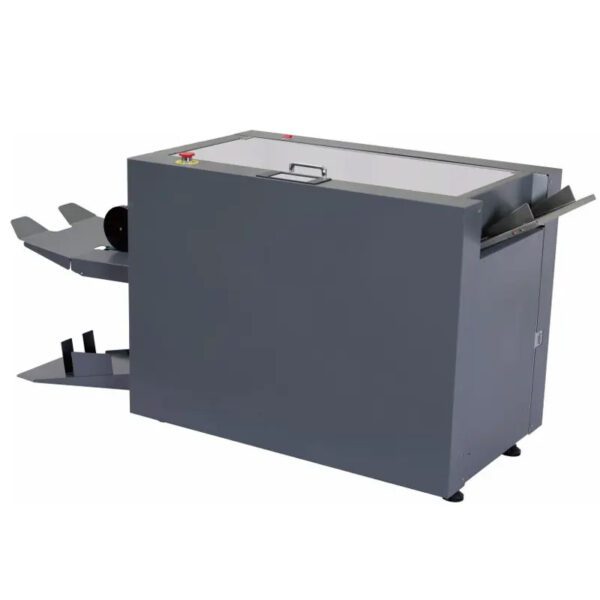

Automatic Stitching System 2500sets/h Paper Collator Booklet Maker and Trimmer Paper Binding Machine
