Air Operated Double Diaphragm Pump Viscous Fluid Transfer
This Air Operated Double Diaphragm Pump is a highly versatile positive displacement pump that uses compressed air to drive two flexible diaphragms, facilitating the safe and reliable transfer of various fluids, including highly viscous materials, chemicals, and slurries. The key technical features include its seal-less design, which eliminates leakage and wear, and its ability to run dry and self-prime. Its pneumatic power source makes it inherently explosion-proof, ensuring safe operation in hazardous industrial environments.
$852.00
CompareProduct Introduction for Air Operated Double Diaphragm Pump
This Air Operated Double Diaphragm Pump is a highly versatile positive displacement pump that uses compressed air to drive two flexible diaphragms, facilitating the safe and reliable transfer of various fluids, including highly viscous materials, chemicals, and slurries. The key technical features include its seal-less design, which eliminates leakage and wear, and its ability to run dry and self-prime. Its pneumatic power source makes it inherently explosion-proof, ensuring safe operation in hazardous industrial environments.
Parameter Table
| Pressure | Low pressure |
| Product Name | Diaphragm pump |
| Power Supply | Pneumatic |
| Operating Mode | Continuous or intermittent |
| Keywords | Dual diaphragm pump |
Application Scenario
-
Industrial Transfer of Solvents and Hazardous Chemicals
-
Pumping High-Viscosity Resins, Coatings, and Inks
-
Sludge and Slurry Transfer in Wastewater Treatment
-
Transfer of Food Grade Media and Shear-Sensitive Fluids
Contact us to get your quotation now.
Related products
-
Hydraulic Pumps, Hydraulics
Air Operated Diaphragm Pump 1 Inch Aluminum Alloy Diaphragm Pump 35 GPM Max 120PSI
Hydraulic Pumps, HydraulicsAir Operated Diaphragm Pump 1 Inch Aluminum Alloy Diaphragm Pump 35 GPM Max 120PSI
Ratio: 1:7
Maximum Flow: 35-g.p.m. (133-l.p.m.)
Displacement per cycle: 0.16 gallons (0.60 liters)
Air inlet: (internal thread) 1/4 – 18 N.PT.F- 1
Inlet/Outlet: 1 – 11-1/2 N.PT.F- 1 , Rp 1 (1-11 BSP Parallel)
Maximum Working Pressure: 120-psi (8.3-bar)
Maximum diameter of suspended solids that can pass: 1/8-in. (3.2-mm)
Weight: Ibs (kg)
666100-X-C (aluminum alloy) 19 (8.6)
666101-X-C (stainless steel) 36 (16.3)
666102-X-C (cast iron) 31 (14.7)
Note: For cast iron air motor section, add 8-bs (3.63-kg)
Maximum dry suction height: ft (m) 20 (6.1)
Sound Level: 70 PSI 60 cycles/min 64.5 db(A)SKU: n/a -
Diaphragm Pumps

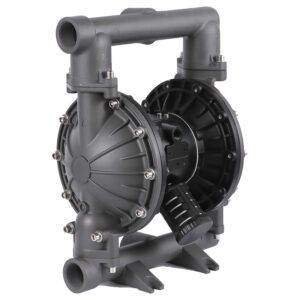

Heavy Duty Diaphragm Pump Sewage/Wastewater Slurry Transfer
This heavy-duty Diaphragm Pump is specifically engineered for the reliable transfer of sewage, wastewater, and fluids containing high concentrations of solids and abrasive particles. Utilizing a positive displacement mechanism driven by mechanical or pneumatic power, the flexible diaphragm creates a leak-free barrier between the fluid and the drive mechanism. This seal-less design and capacity for handling large solids make it highly durable and efficient for sludge and slurry transfer in municipal and industrial sewage treatment facilities.
SKU: n/a -
Diaphragm Pumps

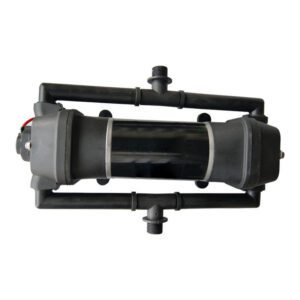

High Flow Double Head Diaphragm Pump Multi-Purpose Utility
