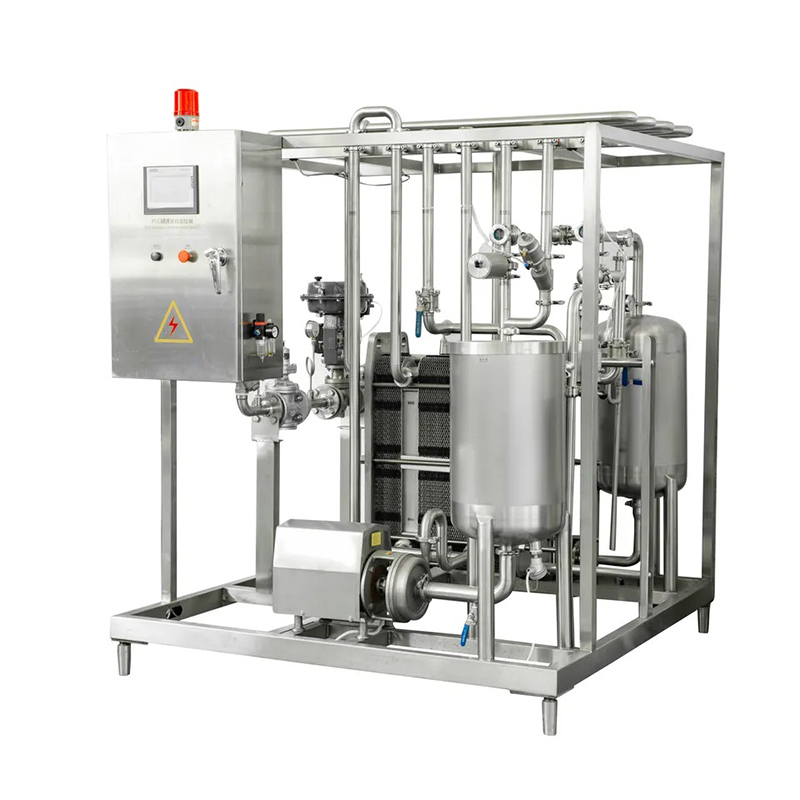

50BBL/H Beer Wine Flow Pasteurizer Ice Cream Juice Milk Liquid Commercial Pasteurization Plant Budweiser Beer Large IPA Plate Pasteurizer
- Capacity: 50BBL/H
- Heat exchanging area: 14m²
- Total power: 8KW
- Steam consumption: 1000KG/H
- Size: 2000×1800×2000mm
- Weight: 1250kg
NOTE: Prices may vary by product model and material.
$40,500.00
ComparePlate Flow Pasteurizer is a kind of sterilization equipment specially designed for beer, milk drinks or similar liquid materials. It’s a ideal equipment to extend the shelf life of materials by sterilization and cooling. The heating, sterilization, heat preservation and cooling requirements designed according to different processes, different materials and different process combinations can meet the process requirements. With a variety of safety protection measures, high temperature, alarm and low temperature backflow. At the same time, according to the requirements of users, automatic control system can be configured.
| Model | Process capacity | Heat exchanging area (m²) | Power (kw) | Steam consumption (kg/h) | External dimension (mm) | Total weight of machine (kg) |
| 5 | 5 bbl/h | 6 | 4.5 | 80 | 1600×1600×1800 | 800 |
| 10 | 10 bbl/h | 6 | 4.5 | 120 | 1600×1600×1800 | 880 |
| 20 | 20 bbl/h | 8 | 5.5 | 200 | 1700×7000×1800 | 980 |
| 30 | 30 bbl/h | 12 | 6.5 | 500 | 1800×1800×1800 | 1080 |
| 50 | 50 bbl/h | 14 | 8 | 1000 | 2000×1800×2000 | 1250 |
| 80 | 80 bbl/h | 16 | 10 | 1500 | 2200×1900×2000 | 1250 |
| 100 | 100 bbl/h | 24 | 14 | 2500 | 2500×2500×2200 | 1650 |
