Product Description:

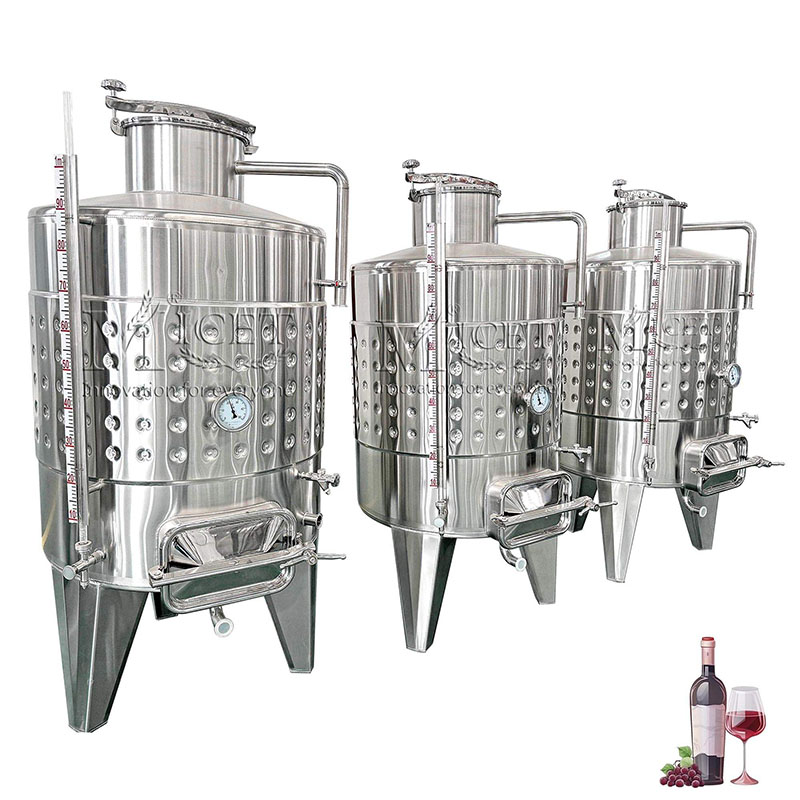

500L Stainless Steel Fruit Wine Tank (Conical Wine Tank) Suitable for Wine Production
Wine Storage Tanks are core equipment in the fields of alcohol brewing, storage, and production & processing. Specifically designed for the fermentation, aging, storage, and transfer of various alcoholic beverages such as wine, Baijiu (Chinese liquor), beer, fruit wine, and Huangjiu (Chinese rice wine), they integrate food-grade material technology, sealed anti-corrosion technology, and intelligent control functions. With the core advantages of “safety and hygiene, sealed preservation, corrosion resistance and anti-aging, and flexible capacity”, they are widely used in wineries, distilleries, alcohol processing plants, warehousing and logistics enterprises, and large-scale catering institutions. They serve as key infrastructure to ensure the stable quality, pure flavor, and extended shelf life of alcoholic beverages.
Product Parameters:
|
Effective volume
|
500L
|
1000L
|
1500L
|
2000L
|
2500L
|
3000L
|
4000L
|
5000L
|
|
Total volume
|
625L
|
1250L
|
1875L
|
2500L
|
3125L
|
3750L
|
5000L
|
6250L
|
|
Size
|
960*2050mm
|
1160*2500mm
|
1260*2800mm
|
1460*3050mm
|
1700*3350mm
|
1750*3450mm
|
1800*3550mm
|
1900*4250mm
|
|
Material
|
SUS304/SUS316
|
|||||||
|
Control system
|
PLC Siemens or PID Schneider/ABB brand
|
|||||||
|
Cooling area
|
1.3㎡
|
2.6㎡
|
3㎡
|
4㎡
|
4.4㎡
|
4.7㎡
|
6.3㎡
|
8.0㎡
|
|
Work pressure
|
inner jacket 0.4MPa; cooling jacket 0.5Mpa
|
|||||||
|
Design pressure
|
inner jacket 0.2MPa; cooling jacket 0.3Mpa
|
|||||||






Contact us to get your quotation now.
