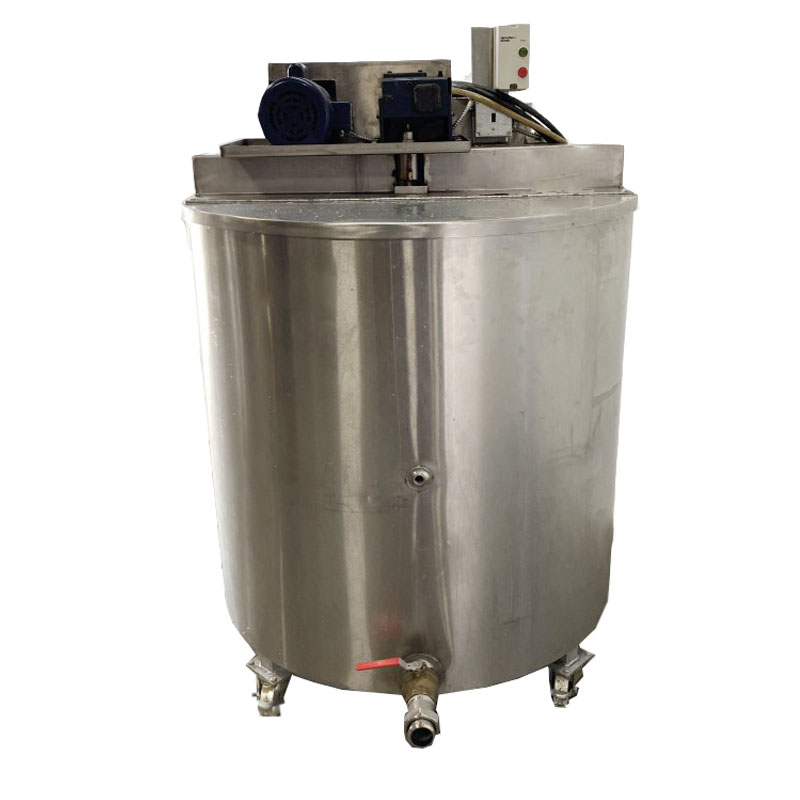

3BBL Chocolate Melting Mixing Tank Chocolate tanks storage tank

Description:
Chocolate melting and holding tank with pump has a wide range of application in the chocolate production and pastry shop. You can use it to store large amounts of chocolate to maintain continuous production. In addition, it can also be used as the auxiliary equipment of injection molding machines and automatic temperature control machines and other equipment, to make up for their problem of low storage.

Capacity: 350L
Forced water cooling
Scraped surface stirrer
Pulsed water inlet control for maximum efficiency
Typically uses 50% less water than competitive tanks
Good access for cleaning
Constructed from high quality stanless steel
Enclosed insulation
Digital, programmable controller
Plumbing needed (infeed/outfeed)

Chocolate Melting Tanks include features that are a direct response to the requests of our customers. You can choose from stainless or mild steel and a variety of sizes to meet your individual requirements. Our water-jacketed tanks control temperature accurately. Our tanks are engineered and customized to meet our client’s needs. We listen, so we can manufacture “the best.”

Features:
All motor mounts and lids are stainless steel.
Tank, fittings, and agitator/mixer can be stainless steel or mild steel. Mild steel tank is powder coat painted on exterior.

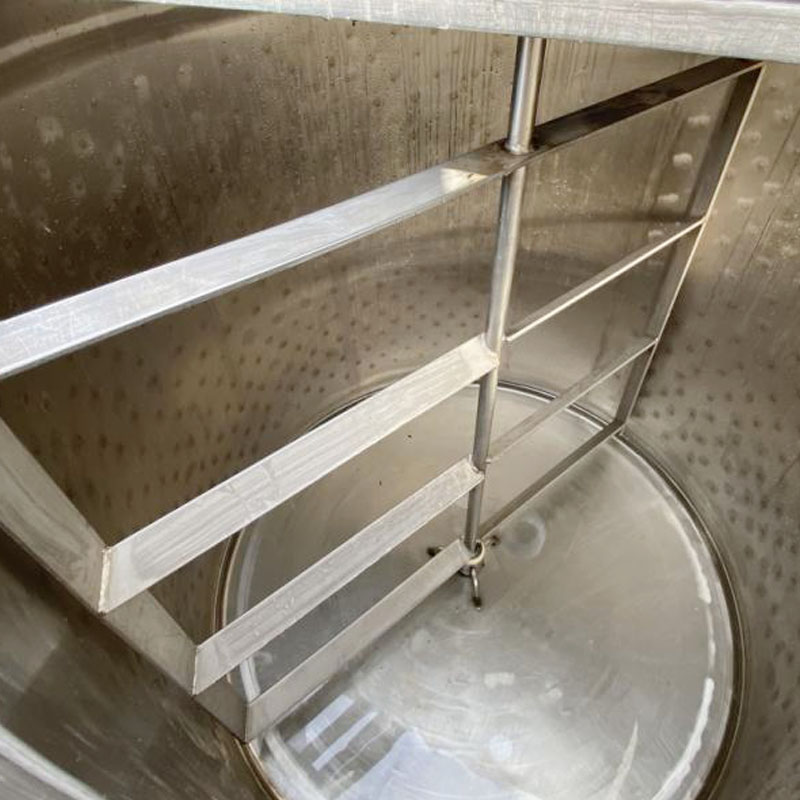

Scrapers for thorough scraping of tank sides and bottom.
Water-jacketed tank has water sight glass and fittings for water in, water out, temperature probe, (2) Chocolate out and water drain.
One chocolate in located in motor mount above tank.
NPT type fittings standard.
Immersion heaters sized for fast response time.
Ball draw-off valve for 1 1/4″ or 2″ NPT opening.
Two ¾” plugged ports for optional water recirculate pump.
Hinged covers for easy access on top drive tanks.
All electrical fittings are seal tight.
Chocolate and water temperature gauges included.
Bottom 2” center drain pipe .
Constructed for easy access to all parts that may require maintenance.
Eurodrive motor and gearbox (except on single phase).
Water overflow pipe vented to atmosphere.
Control panel with digital temperature control (accurate within one degree).
Other options available.
