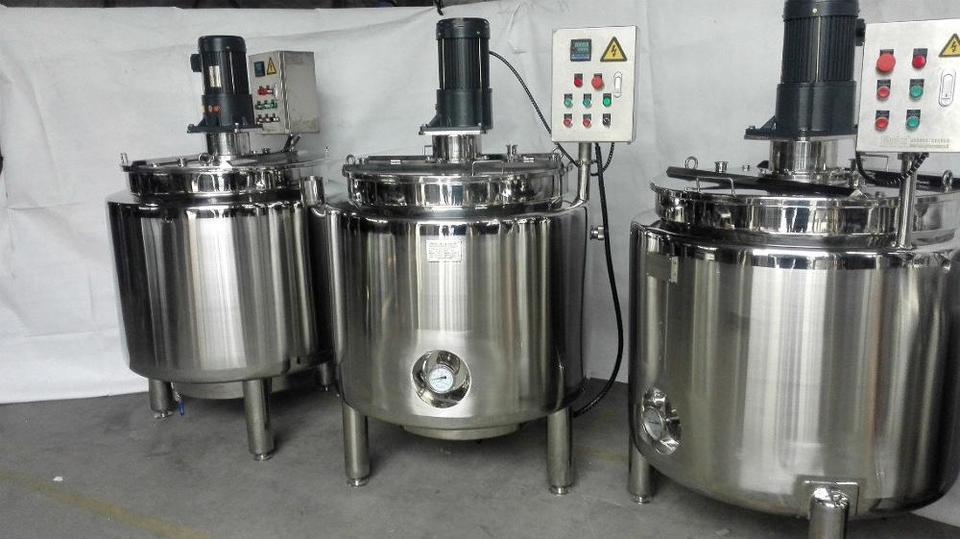

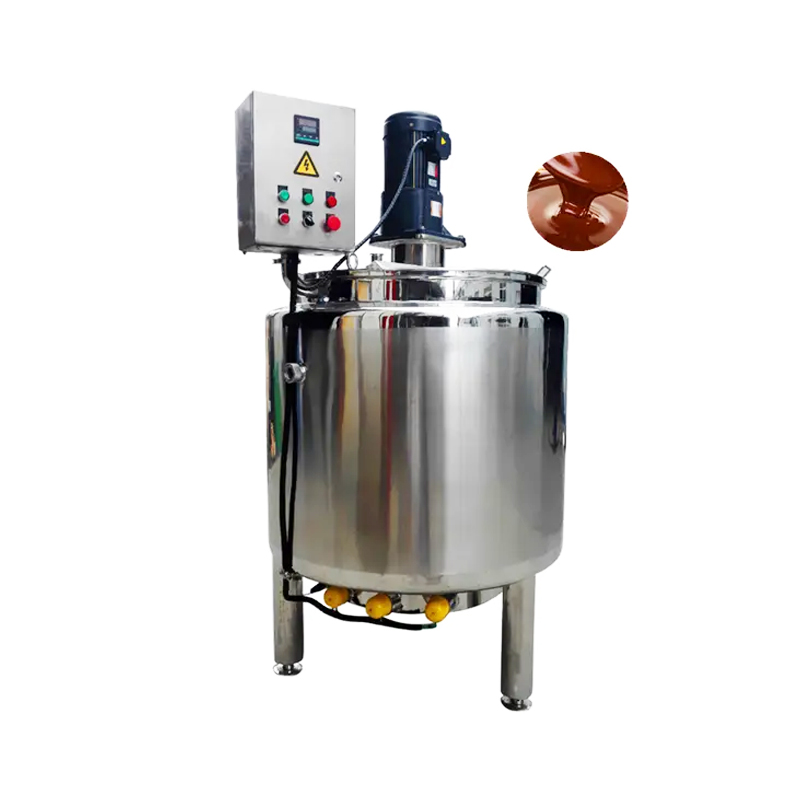

Mixing Tank Main technical parameters and function:
|
|
Capacity:
|
50L, 100L, 200L, 300L, 500L, 600L, 1000L~ 5000L etc.
|
Heating methods:
|
Electric heated
Insert the electric heating rods into jacket, and uniform heating and no cooling zone. Pour heat conducting oil or water into jacket as heating medium, they produce heat energy to heat the material in the tank. |
Heating temperature of material in tank:
|
≤100 Celsius ;
Heating time of material in tank: 30min~90min(according to process requirements) |
Temperature control:
|
Using thermocouple to measure the temperature and connected with temperature controller to control the temperature, and also can
adjust the temperature of material in tank . |
Surface:
|
inner surface mirror polished, Roughness Ra ≤ 0.4 micron
|
Tank cover:
|
flat cover with double open lids, easy for cleaning, Inner and outside polished (Roughness Ra ≤ 0.4 micron).
|
Inner tank bottom structure:
|
by spinning into the R angle, welded with tank body, no dead angle after polishing, without retention when discharging.
|
Jacket form:
|
full jacket, used to put the heat transfer oil or water, to achieve the best temperature and cooling purposes when working.
|
Insulation material:
|
filled with PU foam, to maintain the temperature difference with the outside, so that can keep warm and insulation.
|
Tank body surface treatment:
|
mirror polished or 2B primary color matte or 2B matte surface matte treatment.
|

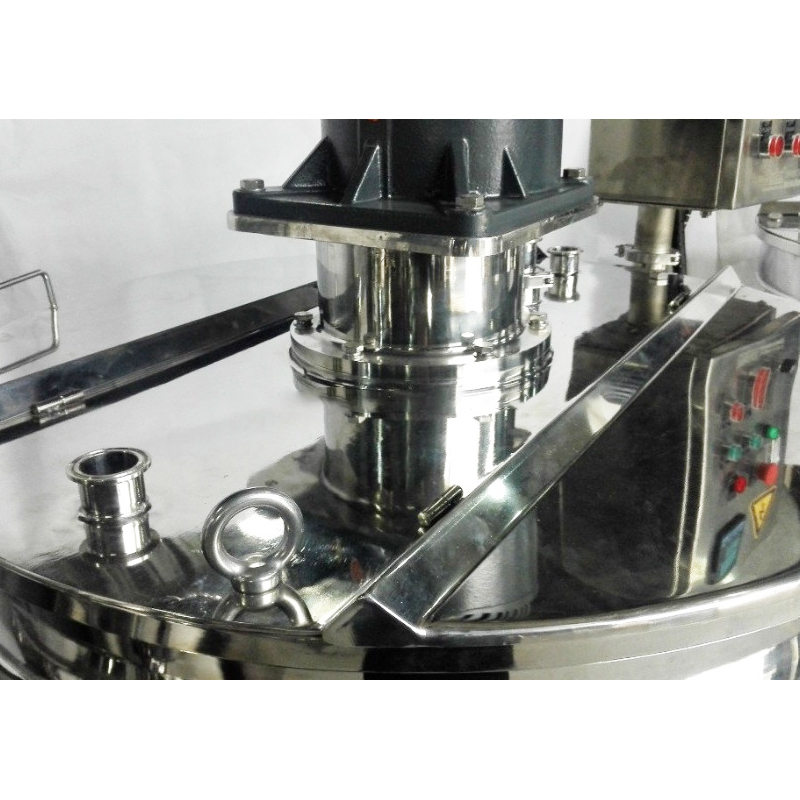

Mixing device:
|
top center of the mixing, reducer output shaft and stirring shaft with a loose connection, easy disassembly and cleaning.
|
Stirring speed:
|
15 ~ 120r / min (constant speed);

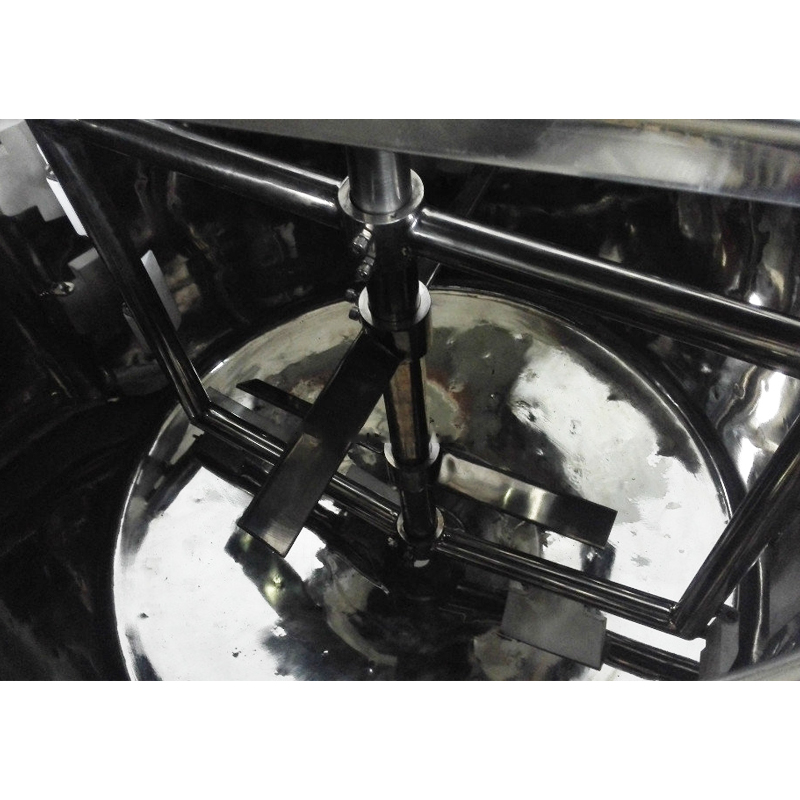

stirring form: frame type, anchor type, blade type, turbine type etc (according to process requirements). |
Foot form:
|
adjustable round tube or hanging ear type.
|
Equipment configuration:
|
electrical control panel, temperature controller, material import and export, media import and export (oil inlet and outlet port),
vent (Oil spill port) and so on. |
Material:
|
inner tank body SUS304 or SUS316L; jacket Q235-B or SUS304; external protection shell SUS304.
|
Connect:
|
Each inlet and outlet pipe opening process and welding place of inner tank body adopt flanging process arc transition, smooth and
easy to clean without dead Angle, beautiful appearance |
Volume (L)
|
Dimension D*h (mm*mm)
|
Height (mm)
|
In/Outlet diameter (mm)
|
Heat preservation layer
|
1000
|
1060*1220
|
2550
|
51
|
60
|
1500
|
1160*1500
|
2850
|
51
|
60
|
2000
|
1340*1500
|
2900
|
51
|
60
|
3000
|
1410*2000
|
3400
|
51
|
60
|
4000
|
1620*2000
|
3450
|
51
|
60
|
5000
|
1810*2000
|
3500
|
51
|
60
|
6000
|
1930*2000
|
3550
|
51
|
60
|
7000
|
1930*2440
|
4000
|
51
|
60
|
8000
|
2060*2440
|
4000
|
51
|
60
|
9000
|
2180*2440
|
4050
|
51
|
60
|
10000
|
2300*2440
|
4050
|
51
|
60
|
12000
|
2270*3000
|
4600
|
51
|
60
|
15000
|
2530*3000
|
4700
|
51
|
60
|
20000
|
2640*3660
|
5400
|
51
|
60
|
