3.5BBL Pro Conical Fermenter 304 Stainless Steel
1. Manhole on the top head(standard).
2. Level Indicator (standard) for inner tank.
3. Vacuum/Pressure combined valve. Tank top fittings, pressure gauge.
4. Optional:Pressure keeping valve with sight glass for controlling and monitoring fermenting process.
5. Built in rotary spray ball within the inner tank for cleaning.

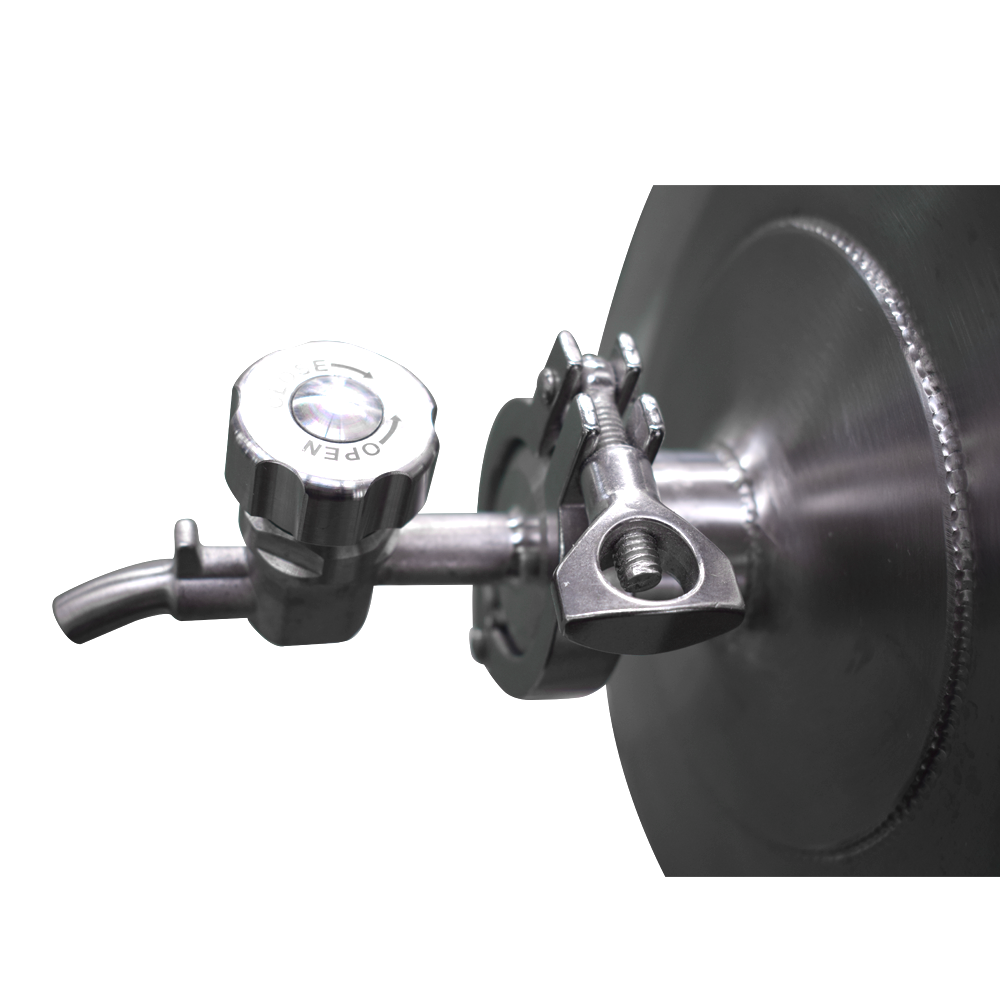

6. Optional: Sanitary sampling valve,with the shortest connection on the tank, easily CIP cleanable.
7. Manual ball valve for easy glycol changing over thus temperature control.
8. Other customization possible upon request.
$6,081.04
CompareStandard Stainless Steel FermentationVessel
Main Features:
• 304SSwith Dual Glycol Jacket and insulated with a minimum of 80mm Chloride free PUinsulation.
• Entirely304ss Butterfly Valves, 2″ Bottom port to facilitate yeast removal.
• Topmanways offer superior sanitation and ease to add fining and hops to thevessel.
• PillowPlate Glycol Jackets offer optimal media transfer. The interior of the shell iscoated with a Chloride resistant coating to resist corrosion from the interior.
• ‘OneTouch’ Racking Arm allows for easy racking arm rotation, without the need toloosen any clamps. Simply turn the handle and the racking arm rotates.
• AdjustableLevelers to provide a level tank regardless of floor slope.
• RespectivePSI Pressure Vacuum Relief Valve, 2″ Tri-Clamp Connection.
• CIPTank Spray Ball has spinner spray head assembly and exterior CIP arm.
• Dedicated1.5″ Blow Off Arm helps keeps CIP and PAM assembly clear of primaryfermentation blow off exhaust and residue.
Product Information
Technical Details
| Inner Shell: 4mm, 304 Stainless Steel |
| Outer Shell: 2mm, 304 Stainless Steel |
| NB registration according to customer’ requirement and federal law. |
| Inner shell design pressure 29PSI(2bar), testing pressure 29PSI(2bar), designed to suit all types of craft breweries. |
| Inner cooling jacket design pressure 29psi (2 bar). |
| 25% headspace for fermenting process. |
| Minimum 3 inch Thermal Polyurethane Insulation with both cone and shell coolant jackets. |
| Chloride ion barrier paint on the out surface of the inner shell to prevent any potential corrosion to ensure longevity. |
| Tank inner side is polished within 0.6µm sanitary finish. |
| Tank outside is 2B stainless steel plate(optional brushed stainless, #4 finish). |
| Shell and bottom cone cooling jacket for better temperature control. |
| Pillow Plate on shell body and cone; Omega laser welded and inflated. |

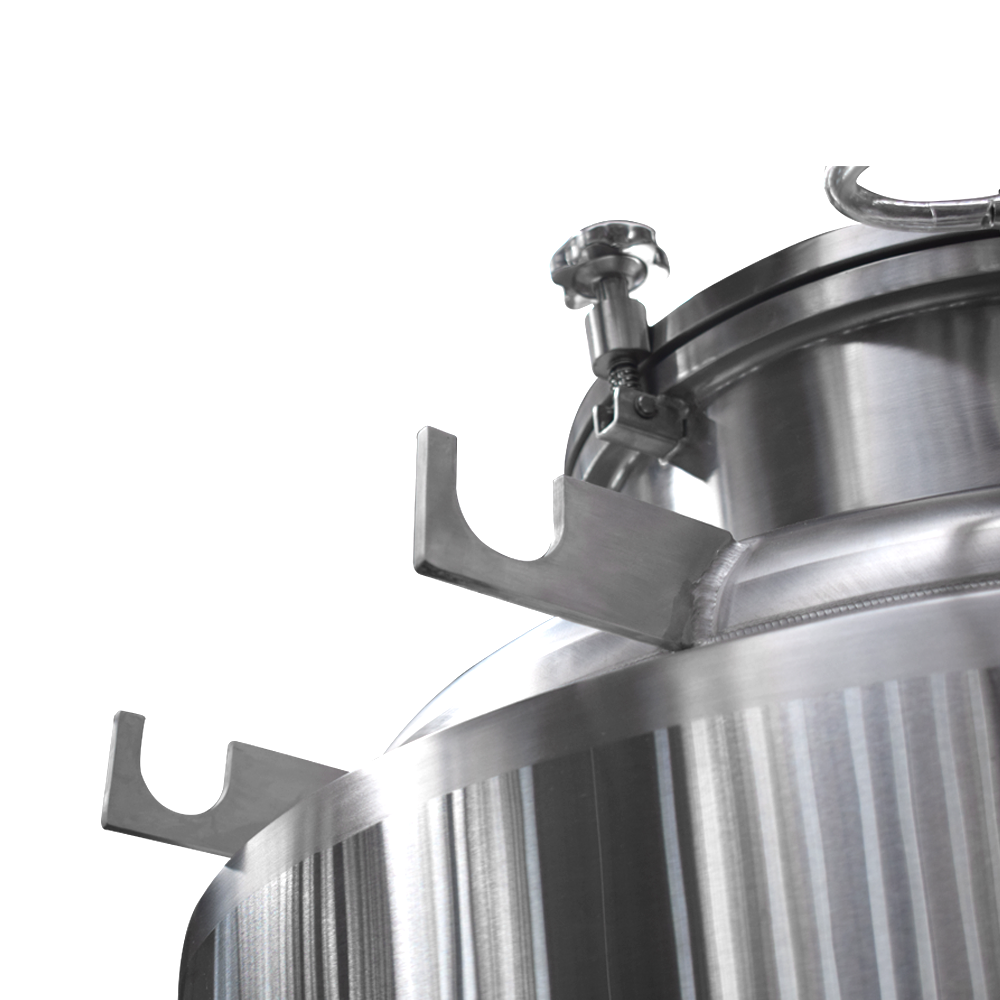

| Hook outside on the shell for ladders. |
| Other customization possibly available upon request. |
