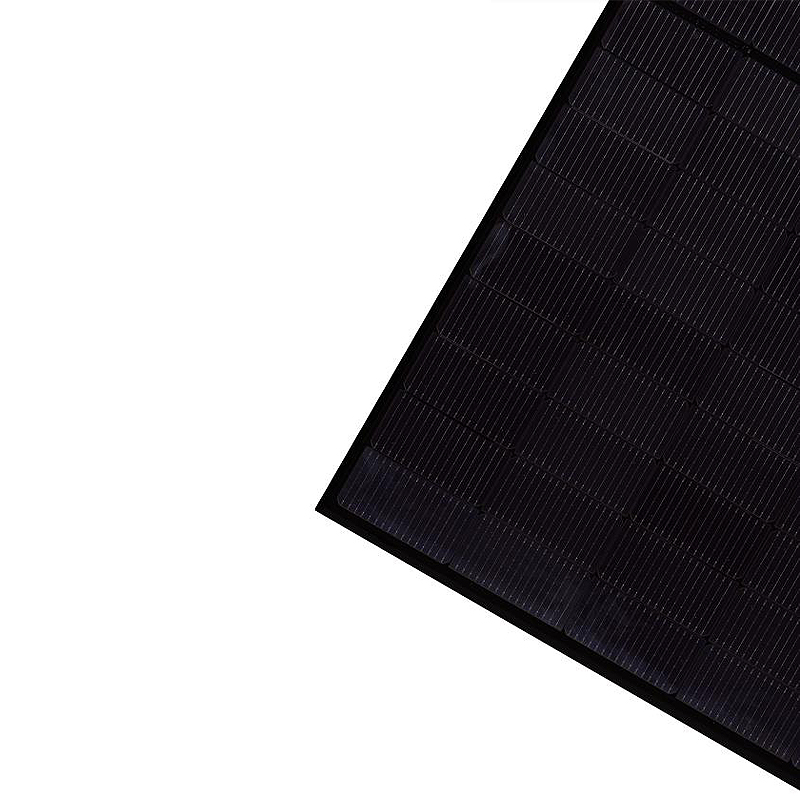

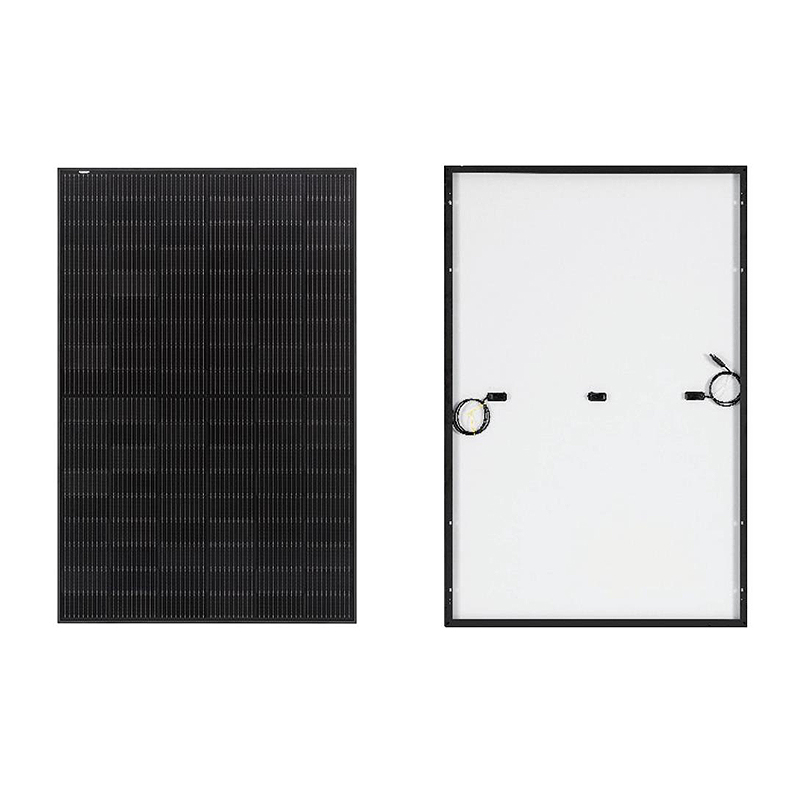

TW Full-black Half-cell Module TWMPD-54HB395-415W P-type Half-cell Monofacial Full-black Module Tongwei High Reliability Solar Panels

Add to wishlist
Compare

MOQ: 10pcs

High Reliability
Cell lossless cutting+multi-busbar (MBB) /Super multi-busbar (SMBB) welding technology
Effectively avoid the risk of microcracks
Reliable frame design
Meet the load requirements of 5400Pa (front) and 2400Pa (back)
Easily coping with various application scenarios

$146.00 – $154.00

Compare

Ultra-low LID of  TW Full-black Half-cell Module

  • 2% degradation in the first year, 0.55% annual degradation in the 2nd-30th year
  • Provide long-term and stable power generation revenue for end customers
  • Lower degradation with anti-PID cell and encapsulation materials

Parameters

Cell Type TPC
Cell Orientation 108[6×18]

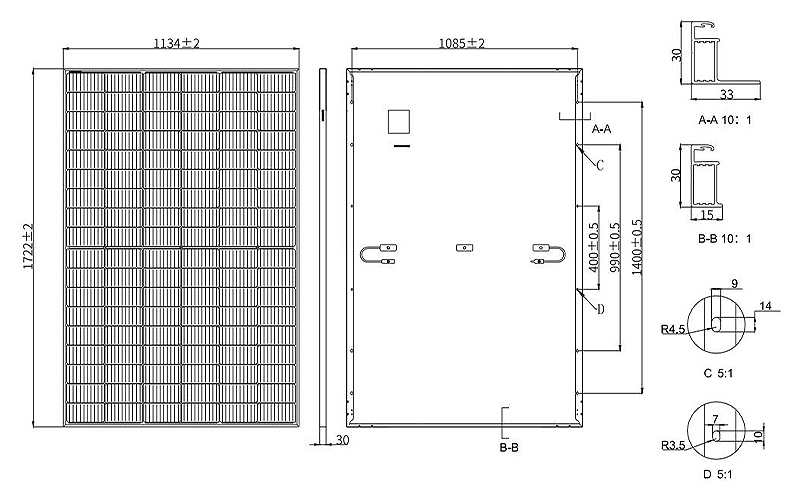

Dimensions 1722±2mm×1134±2mm×30mm
Weight 20.5 kg
Front Glass 3.2 mm AR coated heat strengthened glass
Backsheet Black inside and White outside
Frame Anodized aluminum alloy frame
Junction Box IP68, 3 diodes
Cable 4.0 mm²
Cable length +400mm, -200mm or ±1200mm, length can be customized
Wind/Snow load 2400Pa/5400Pa
Per pallet 36 pcs
Packaging 936 pcs per 40’HC

Statement: With technological process and product update, there maybe deviation between the technical parameters of Tongwei’s module products and the technical parameters contained in the specification, and Tongwei Solar has the right to adjust the technical parameters at any time without notifying the customer,the final interpretation of the technical specification is vested in Tongwei Solar.

Electrical Characteristics (STC)

Module type TWMPD-54HB395-415W
Maximum Power : Pmax [W] 395 400 405 410 415
Open Circuit Voltage : Voc [V] 36.98 37.07 37.23 37.38 37.53
Short Circuit Current : lsc [A] 13.70 13.79 13.87 13.93 13.99
Voltage at Maximum Power: Vmp [V] 30.84 31.01 31.21 31.40 31.60
Current at Maximum Power: lmp [A] 12.81 12.90 12.98 13.06 13.14
Module Efficiency: η [%] 20.2 20.5 20.7 21.0 21.3
STC: Irradiance 1000W/m², Cell Temperature 25°C, AM=1.5, Test Uncertainty: ±3%

Electrical Characteristics (NMOT)

Maximum Power : Pmax [W] 298.2 302.0 306.0 310.0 314.0
Open Circuit Voltage : Voc [V] 34.80 34.88 35.12 35.31 35.50
Short Circuit Current : lsc [A] 10.96 11.03 11.10 11.16 11.22
Voltage at Maximum Power: Vmp [V] 29.10 29.26 29.47 29.68 29.89
Current at Maximum Power: lmp [A] 10.25 10.32 10.38 10.44 10.51
NMOT: Irradiance 800W/m², Ambient Temperature 20°C, AM=1.5, Wind speed: 1m/s

SKU: N/A Category: Tags: , , , ,
Max. Power

395W, 400W, 405W, 410W, 415W
