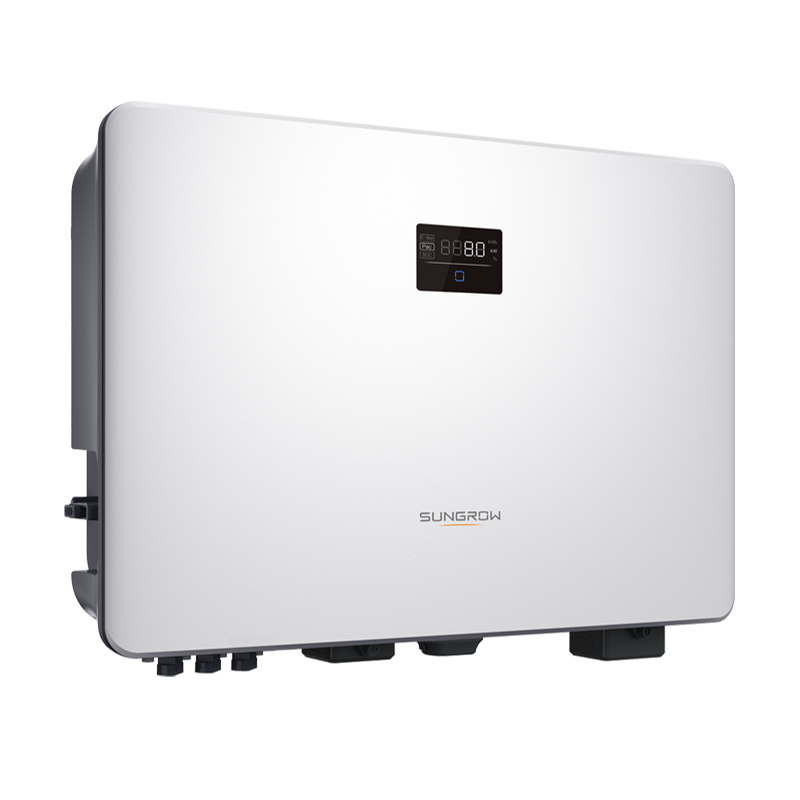

Sungrow High Performance Inverter SG8.0/9.0/10RS Multi-MPPT String Inverter for 600 Vdc System Residential Triple Phase AC Inverters

Add to wishlist
Compare

Dimensions (W*H*D) : 490 * 340 * 170 mm

Weight : 19 kg

Mounting method : Wall-mounting bracket

Topology : Transformerless

Degree of protection : IP65

Operating ambient temperature range : -25 to 60 ℃

Allowable relative humidity range (non-condensing) : 0 – 100 %

$899.00

Compare

CIRCUIT DIAGRAM of the Sungrow High Performance Inverter

EFFICIENCY CURVE

Type designation SG8.0RS SG9.0RS SG10RS
Input (DC)
Recommended max. PV input power 12kWp 13.5kWp 15kWp
Max. PV input voltage 600V 600V 600V
Min. operating PV voltage / Start-up input voltage 40V/50V 40V/50V 40V/50V
Rated PV input voltage 360V 360V 360V
MPP voltage range 40 – 560 V 40 – 560 V 40 – 560 V
No. of independent MPP inputs 3 3 3
Default No. of PV strings per MPPT 1 1 1
Max. PV input current 48A (16A / 16A / 16A) 48A (16A / 16A / 16A) 48A (16A / 16A / 16A)
Max. DC short-circuit current 60A (20A / 20A / 20A) 60A (20A / 20A / 20A) 60A (20A / 20A / 20A)
Output (AC)
Rated AC output power 8000 W 9000 W 10000 W
Max. AC Output power 8000 VA 9000 VA 10000 VA
Rated AC output current (at 230 V) 34.8 A 39.2 A 43.5 A
Max. AC output current 36.4 A 41 A 45.5 A
Rated AC voltage 220 / 230 / 240 V 220 / 230 / 240 V 220 / 230 / 240 V
AC voltage range 154 – 276 V 154 – 276 V 154 – 276 V
Rated grid frequency / Grid frequency range 50 Hz / 45 – 55 Hz, 154 – 276 V 50 Hz / 45 – 55 Hz, 154 – 276 V 50 Hz / 45 – 55 Hz, 154 – 276 V
Harmonic (THD) < 3% (at rated power) < 3% (at rated power) < 3% (at rated power)
Power factor at rated power / Adjustable power factor > 0.99/0.8 leading – 0.8 lagging > 0.99/0.8 leading – 0.8 lagging > 0.99/0.8 leading – 0.8 lagging
Feed-in phases / Connection phases 1 / 1 1 / 1 1 / 1
Efficiency
Max. efficiency 97.8 % 97.8 % 97.8 %
European efficiency 97.3 % 97.4 % 97.4 %
Protection
Grid monitoring Yes Yes Yes
DC reverse polarity protection Yes Yes Yes
AC short-circuit protection Yes Yes Yes
Leakage current protection Yes Yes Yes
Surge Protection DC type II / AC type II DC type II / AC type II DC type II / AC type II
DC switch Yes Yes Yes
PV string current monitoring Yes Yes Yes
Arc fault circuit interrupter (AFCI) Optional Optional Optional
PID recovery function Yes Yes Yes

  • Cooling method : Natural cooling
  • Max. operating altitude : 4000 m
  • Display : LED digital display & LED indicator
  • Communication : Ethernet/WLAN/RS485/DI (Ripple control & DRM)
  • DC connection type : MC4 (Max. 6 mm² )
  • AC connection type : Plug and play connector (Max. 16 mm²)
  • Grid compliance : IEC / EN62109-1/2, IEC / EN62116, IEC / EN61727, IEC / EN61000-6-2/3, AS/NZS 4777.2, ABNT NBR 16149, ABNT NBR 16150, G99
  • Grid Support : Active & reactive power control and power ramp rate control
