|Material||stainless steel 304 or 316|
|Install direction||The horizontal type|
|Application||Petrochemical, aviation equipment, machinery manufacturing, electrical facilities, chemical, medical construction, food|
|Function||1. Compensate the axial, lateral and angular cold and heat deformation of the absorption pipeline.
2. The expansion and contraction of the corrugated compensator facilitates the installation and disassembly of the valve pipeline.
3. Absorb equipment vibration and reduce the impact of equipment vibration on the pipeline.
4. Absorb the deformation of the pipeline caused by earthquake and ground subsidence.

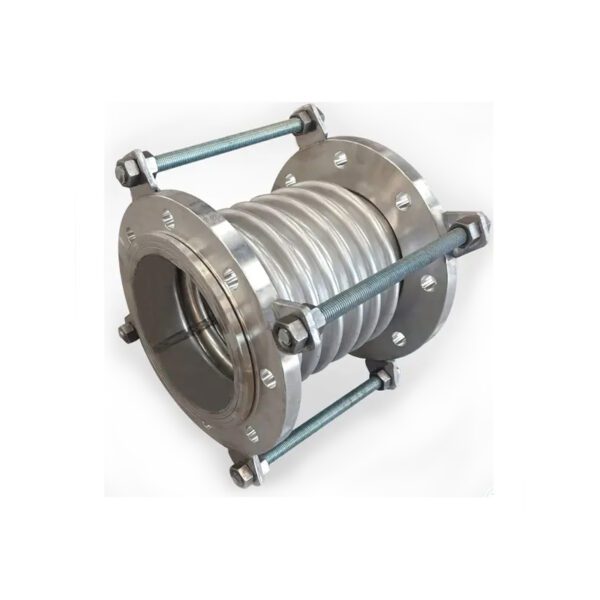

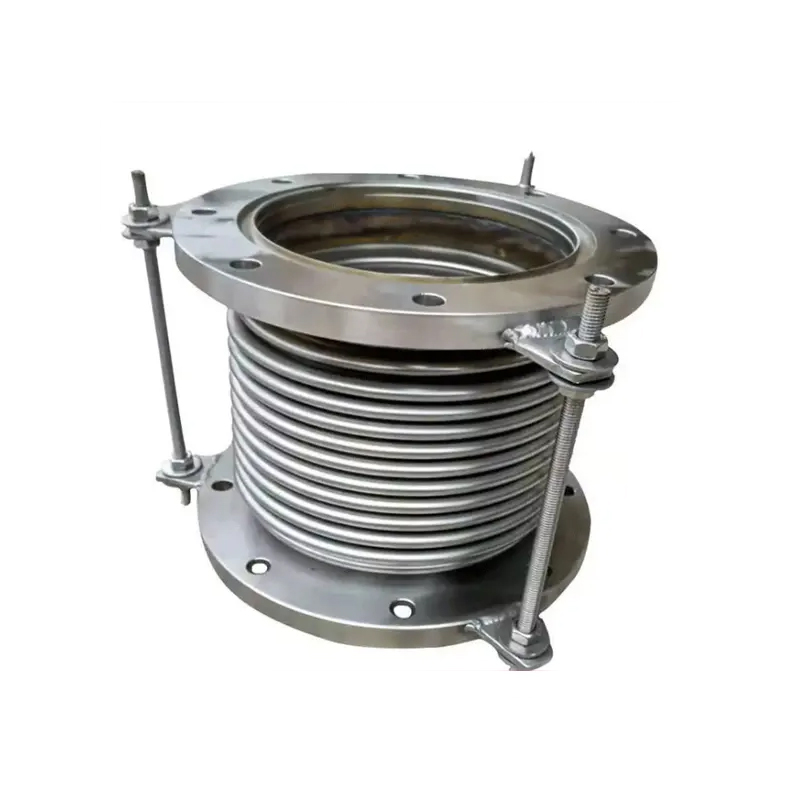

The compensator is also called expansion joint or expansion joint. It is composed of bellows (a kind of elastic element) and accessories such as end pipes, brackets, flanges, and conduits that constitute the main body of the work. Belongs to a compensation component.
The effective expansion and contraction of the bellows of its working body can absorb the dimensional changes caused by thermal expansion and contraction of pipelines, conduits, containers, etc., or to compensate for the axial, lateral and angular displacement of pipelines, conduits, and containers. It can also be used to reduce noise and vibration.
It is widely used in modern industry. In terms of heating, in order to prevent the pipe from being deformed or damaged due to thermal elongation or temperature stress when the heating pipe is heating up, a compensator must be installed on the pipe to compensate for the thermal elongation of the pipe, thereby reducing the stress on the pipe wall And the force acting on the valve or support structure.
