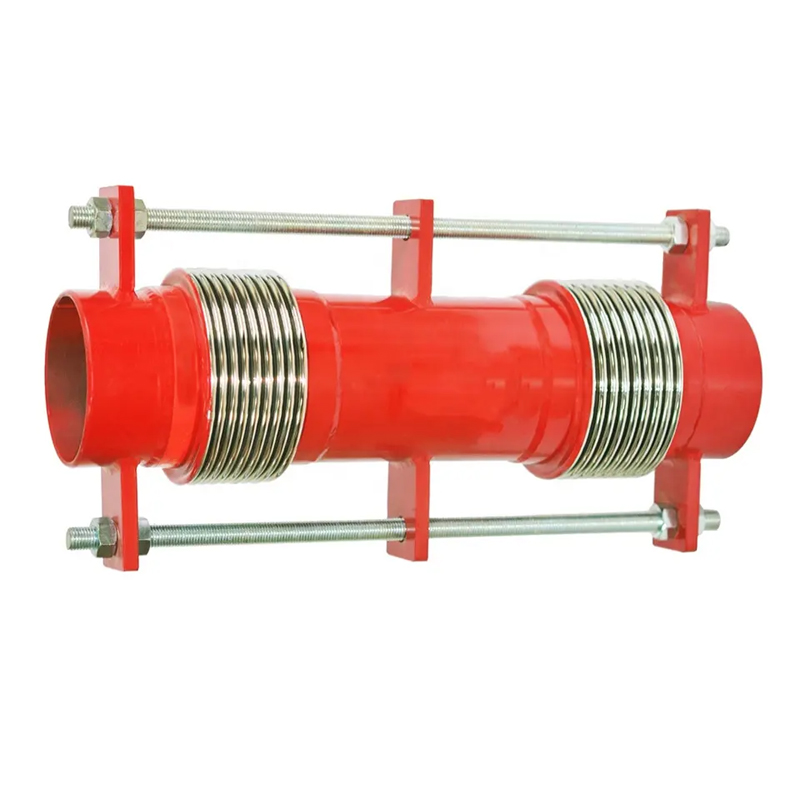

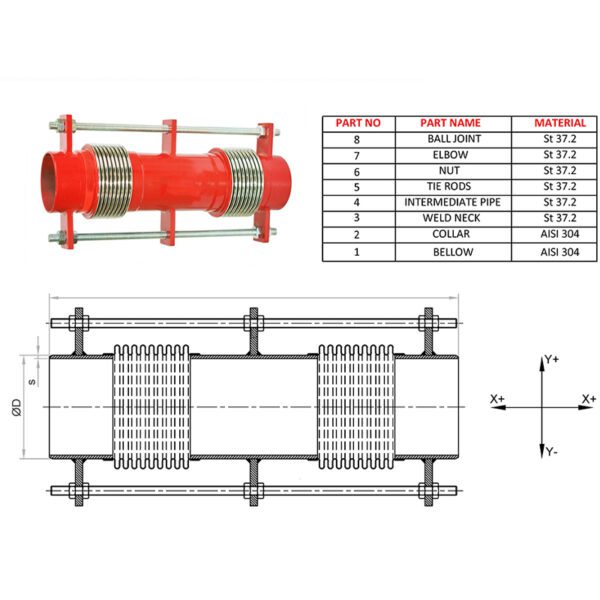

Universal Tied Expansion Joint
Installed in specified places in pipe systems, Universal Type Expansion Joints (with limit rod) are the components protecting the system thereby eliminating the problem such as tension, disassociation in pipelines thanks to the flexible structure against rigid pipe structure in building downfalls and mobilizations. Featuring two bellows, this type of expansion joint absorbs axial movements, lateral deviations, and angular rotation.

Connection Type: Flanged, Weld Neck, Grooved, Threaded
Nominal Size: DN25 to DN3000
Working Temperature: -80°C/+550°C (Opt. Up to 1100°C)
Pressure Rating: Standard pressure rating is PN16, (Optional PN25/40/64)
Bellow Material: Stainless Steel AISI 321 (Opt. AISI 304,316L, 316Ti, 309, 310)
Flange Material: Carbon Steel St.37,2 as standard, (Opt. AISI 304,316L, 316Ti, 309, 310)
Pipe Material: Carbon Steel St.37,2 as standard, (Opt. AISI 304,316L, 316Ti, 309, 310)
Tie Rods Material: Carbon Steel St.37,2 as standard, (Opt. AISI 304,316 )
Movements: 50 mm (+/-25 mm ) , 100 mm (+/-50 mm ) , 150 mm (+/-75 mm ) , 200 mm (+/-100 mm )
