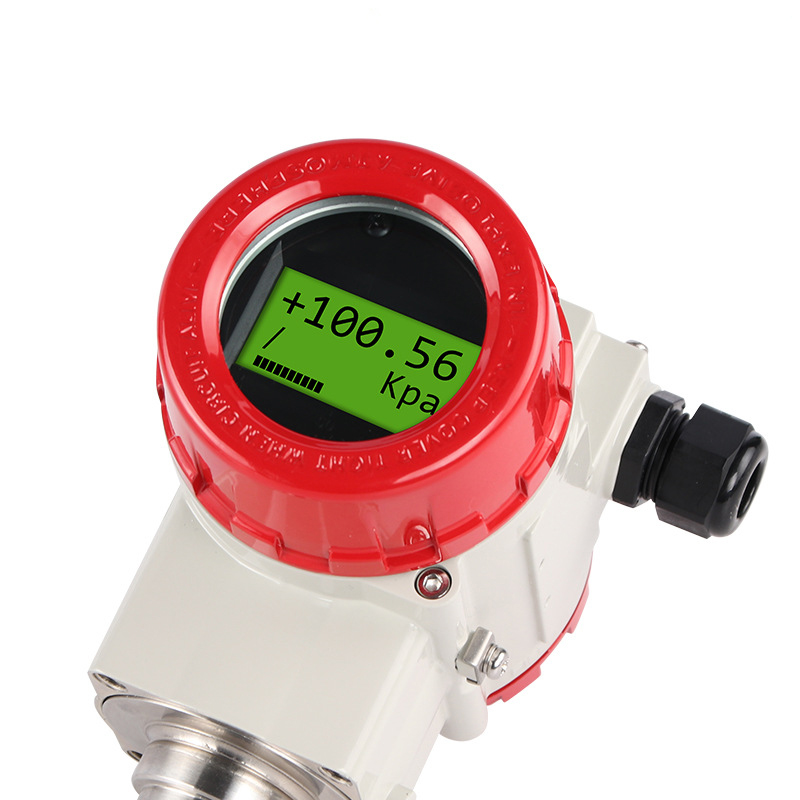

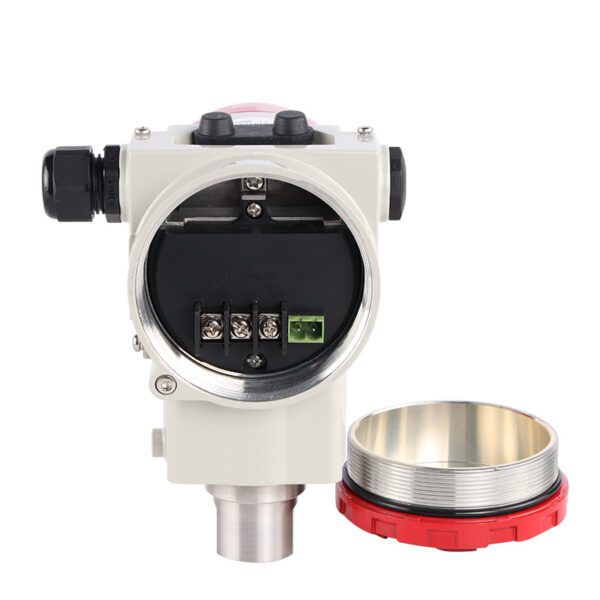

Pressure Transmitter Basic Model Single Crystal Silicon Transducer 4-20mA Differential Pressure Transducer Vapor Gas Liquid Pressure Transmitter

Add to wishlist
Compare
  • One-thousandth of a percent accuracy.
  • 6KPa-3MPa ultra-wide range optional.
  • HART communication protocol is standard.
  • Double overload protection diaphragm, stable and reliable impact resistant.
  • IP67 protection rating.

NOTE: Prices may vary by product model and material.

$375.00

Compare

Considerations for pressure transmitter

  • The suction pipe should be as short as possible and avoid sharp bending.
  • The installation slope of the pressure pipeline should not be less than 1:12, so as not to cause precipitation.
  • Before connecting the pressure pipeline to the pressure transmitter, it must be blown with compressed air and preferably washed with the measured medium.
  • If the medium is liquid, the suction pipe should be completely emptied.
  • The pressure pipeline shall be arranged in such a way that bubbles in the measured liquid or precipitates in the measured gas can flow back into the process pipeline.
  • When installing process pipes, there must be no leakage.

Product Name Basic single crystal silicon differential pressure transmitter
Power supply 10.5V ~ 36V
Ambient temperature -30 ~ 80°C
Measurement media Vapor, liquid, steam (do not use for flammable and explosive media measurement)
Signal output 4-20mA, HART
Accuracy class 0.1%FS
Stability 0.2%FS/ year
Interface material Stainless steel
Seal ring material Nitrile rubber (in contact with the measuring medium)
Electrical connection M20*1.5 internal thread (with cable seal head)/NPT1/2 internal thread, suitable for 0.5-2.5mm2 wire
Process connection M20×1.5 with welded pipe, 304 Triple valve group M20×1.5 with welded pipe, NPT1/4(F), 304 triple valve group NPT1/4(F), NPT1/2, NPT1/2(F), G1/2 with welded pipe, G1/4
Protection level lP67
