Pressure Transmitters
0-2Mpa Pressure Sensor Single Flange Single Crystal Silicon Remote 4-20mA Diaphragm Intelligent Differential Pressure Transmitter
- Reinforced shell: has good corrosion resistance and wear resistance.
- High precision: high linear stability and strong anti-interference.
- Wide range of applications: steam/gas/liquid absolute pressure/gauge pressure/differential pressure can be measured.
- Simple structure: it is suitable for various working conditions and can maintain accurate measurement at all times.
NOTE: Prices may vary by product model and material.
$717.00
ComparePressure Sensor is applicable to various industries. For example:
- Precision equipment. Used in chemical production, testing and testing, etc.
- Industrial pipes. Used in air conditioners, hydropower plants, etc.
- Food pharmacy. Used in sugar, pharmaceuticals, various beverages, etc.
- Water tank oil tank. Used for building automation, constant pressure water supply, environmental protection, etc.
| Range | 0-2Mpa |
| Comprehensive accuracy | 0.075%, 0.1%, 0.25%, 0.5% |
| Output signal | 4-20mA, HART protocol, RS485 |
| Power supply voltage | 24 (12~36) VDC (amplified signal) |
| Working temperature | -20~150°C |
| Compensation temperature | -20~80°C |
| Protection class | IP67 |
| Material | Stainless steel (304, 316, 316L) |
| Weight | 3.25KG (weight without LCD display, mounting bracket and process connection) |
| Filling fluid | Silicone oil |
| Electrical connection | M20X1.5 cable sealing buckle, the terminal block is suitable for wires of 0.5 ~ 2.5mm2 |
| Process connection | NPT 1/2, NPT 1/2, G1/2, M20x1.5, KF16 |
Based on 0 reviews
Be the first to review “0-2Mpa Pressure Sensor Single Flange Single Crystal Silicon Remote 4-20mA Diaphragm Intelligent Differential Pressure Transmitter”
Related products
-
Pressure Transmitters
Digital Display Pressure Transmitter Intelligent High Temperature High Precision 5% Diffused Silicon Pressure Transducer 4-20mA
Pressure TransmittersDigital Display Pressure Transmitter Intelligent High Temperature High Precision 5% Diffused Silicon Pressure Transducer 4-20mA
- The pressure transmitter has IP65 high protective housing, which is not afraid of harsh sites. Not afraid of dust intrusion, low pressure spray at any Angle has no effect.
- The pressure transmitter is paired with the pressure recorder to record the trend of the field pressure data in real time and easily analyze the field production status.
- The pressure transmitter is combined with the steam flow meter to accurately measure the pressure change in the pipeline for accurate steam flow measurement.
NOTE: Prices may vary by product model and material.
SKU: n/a -
Pressure Transmitters

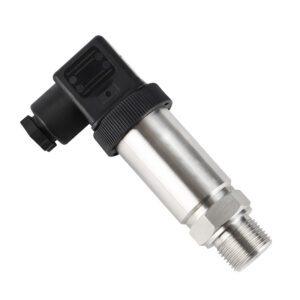

Pressure Transmitter 4-20mA Output G1/4″ Silicon Pressure Transmitter Transducer for Water Gas Oil Diffused Silicon Pressure Transmitter
