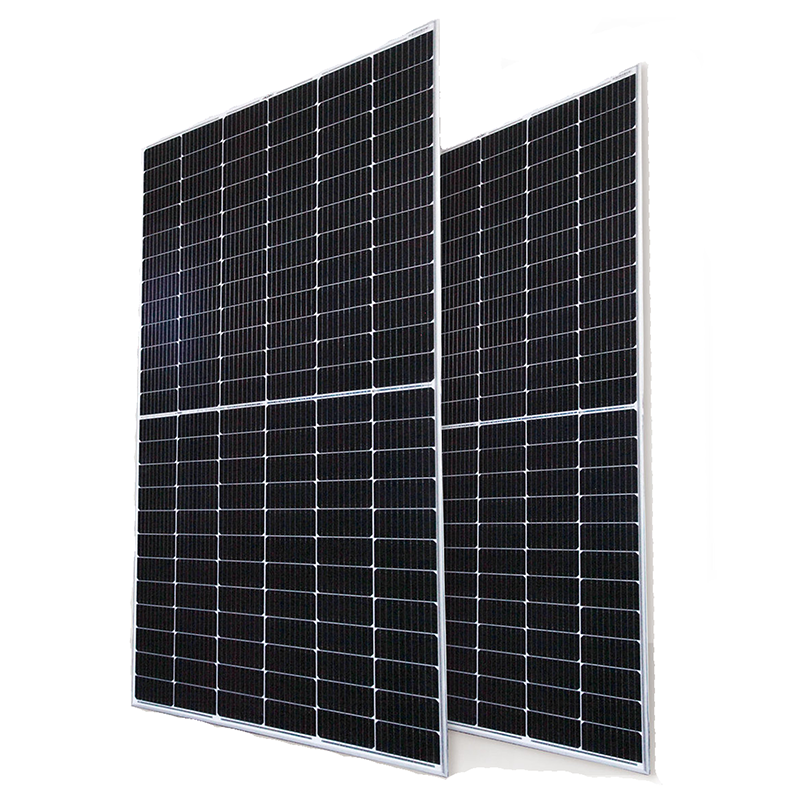

Longi 545-555W Hi-Mo 5 Integrated Segmented Ribbon Dual Glass Monocrystalline Cast Monocrystalline Solar Panel
| Battery arrangement | 144 (6×24) |
| Junction Box | Split junction box, IP68, 3 diodes |
| Component weight | 32.6kg |
| Component size | 2278x1134x35mm |
| Packaging Information | 31 pieces per pallet |
$330.00
CompareLongji hi-mo-5 solar panel analyzed the various boundary conditions involved in component manufacturing and system application, from production feasibility, component reliability, application compatibility to transportation and manual installation, and ultimately determined the size of the 182 silicon wafer and component. In terms of reliability, the size of the 182 component is still in a safe area, and further increase in component size and current cannot bring value in manufacturing or system costs, But it will bring many reliability risks. In the transportation process, the 182 component can maximize the utilization of sea freight containers, reduce transportation costs, and improve component load reliability.
Hi-MO 5 solar panel Core Advantages
Electrical performance parameters ( STC test )
| Component model | LR5-72HBD-545M | LR5-72HBD-550M | LR5-72HBD-555M |
| Maximum power (Pmax /W) | 545 | 550 | 555 |
| Open circuit voltage (Voc/V) | 49.65 | 49.8 | 49.95 |
| Short circuit current (Isc /A) | 13.92 | 13.99 | 14.05 |
| Peak power voltage ( Vmp/V) | 41.8 | 41.95 | 42.1 |
| Peak power current (Imp /A) | 13.04 | 13.12 | 13.19 |
STC：Standard Test Conditions
Electrical performance parameters (NOCT test)
| Component model | LR5-72HBD-545M | LR5-72HBD-550M | LR5-72HBD-555M |
| Maximum power (Pmax /W) | 407.4 | 411.1 | 414.8 |
| Open circuit voltage (Voc/V) | 46.68 | 46.82 | 46.97 |
| Short circuit current (Isc /A) | 11.23 | 11.29 | 11.34 |
| Peak power voltage ( Vmp/V) | 39 | 39.14 | 39.28 |
| Peak power current (Imp /A) | 10.45 | 10.51 | 10.56 |
NOCT:Normal Operating Cell Temperature
| Load capacity | |
| Maximum static load on the front (e.g. snow, wind) | 5400Pa |
| Maximum static load on the back (e.g. wind) | 2400Pa |
| Pass the hail test | Diameter 25mm, impact velocity 23m/s |
| Temperature coefficient ( STC test ) | |
| Short circuit current (Isc) temperature coefficient | +0.050%/°C |
| Open circuit voltage (Voc) temperature coefficient | -0.265%/°C |
| Peak power (Pmax) temperature coefficient | -0.340%/°C |
Based on 0 reviews
Be the first to review “Longi 545-555W Hi-Mo 5 Integrated Segmented Ribbon Dual Glass Monocrystalline Cast Monocrystalline Solar Panel”
Related products
-
LONGi Solar Panel, Solar Panel

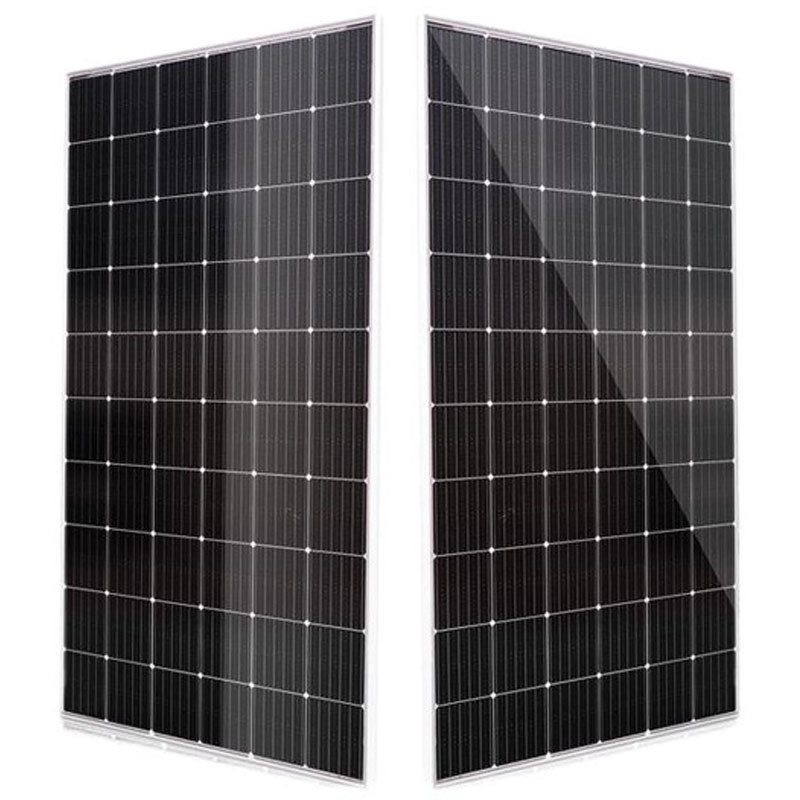

Longi 450-460W Hi-Mo 4m Integrated Segmented Ribbon Dual Glass Monocrystalline Cast Monocrystalline Solar Panel
