Solar Panel, SUNTECH Solar Panel

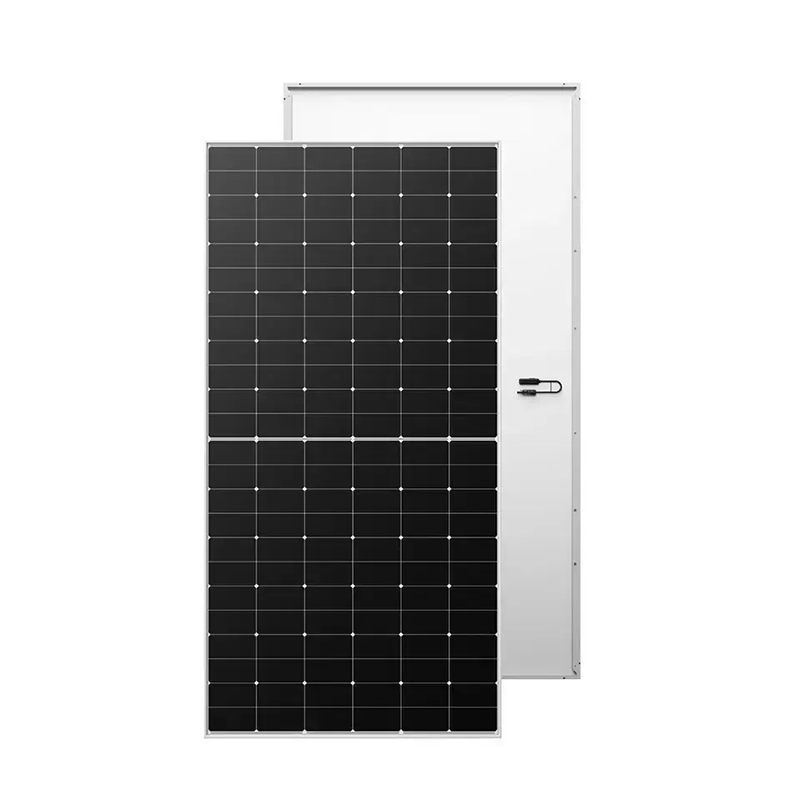

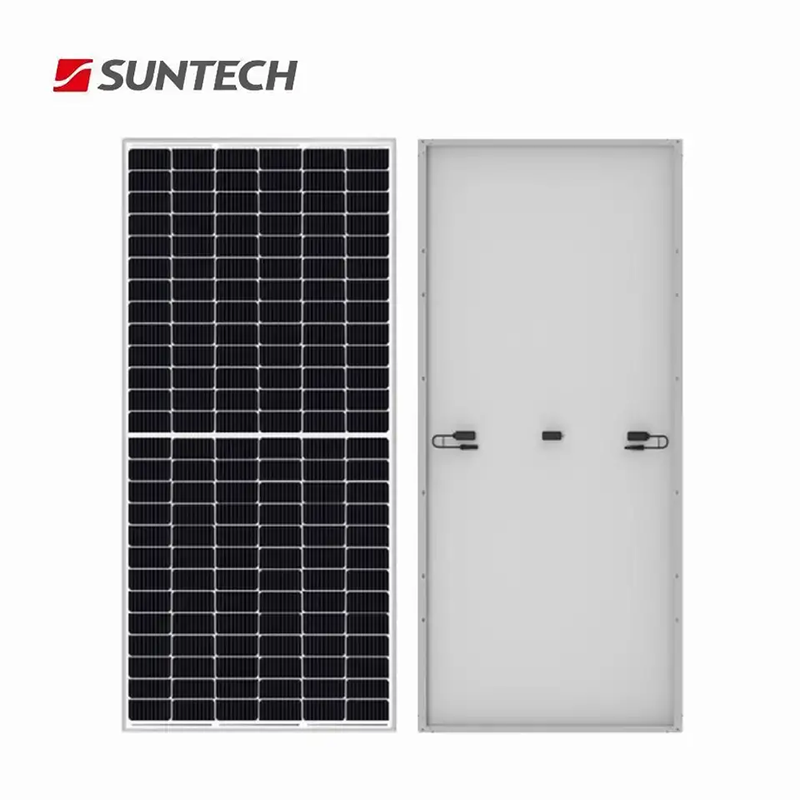

Suntech STP Ultra S Solar Panel 440w 445w 450w 455w 460w Solar Panels
| Brand Name | Suntech | Model Number： | SKT430M10 |
| Type: | Half Cell, PERC, | Cell size： | 166mmx166mm |
| Panel Efficiency. | 21.9%，21.1% | Panel Dimensions: | 1956*992*40mm |

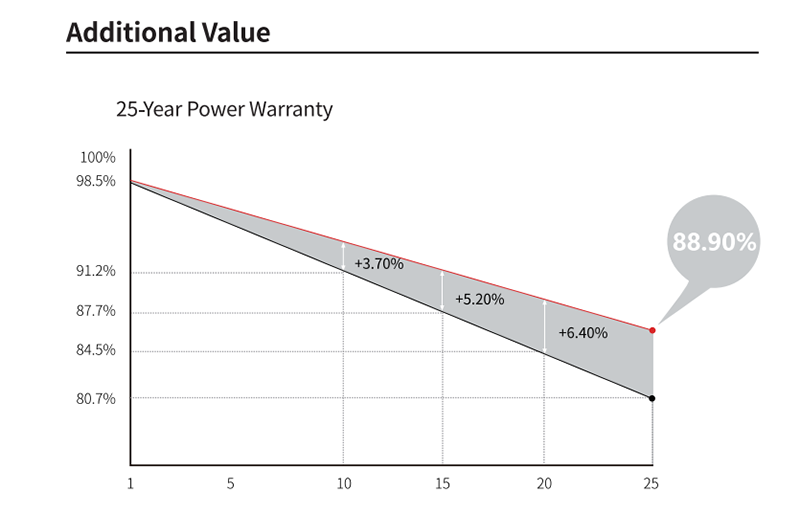

| Warranty | 25 Years | Frame: | Anodized Aluminium Alloy |
| Solar Cell: | Monocrystalline silicon 166 mm | Packing | 31 pieces |
$196.00 – $204.00
Compare
|

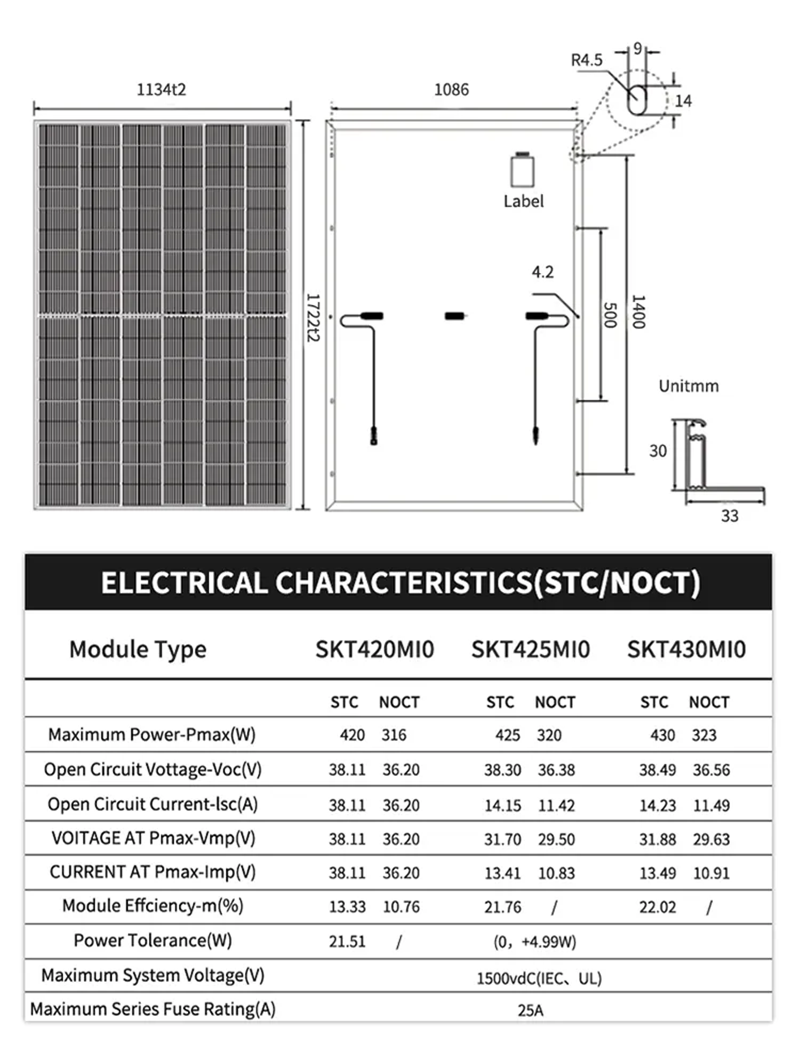

Mechanical Specifications
|
|
|
External Dimensions
|
1722x1134x30mm
|
|
Weight
|
22kg
|
|
Solar Cells
|
Mono crystalline 182mm (2x54pcs)
|
|
Front Glass
|
AR Coated 3.2 mm tempered glass
|
|
Frame
|
Anodized aluminum alloy
|
|
Junction Box
|
IP68
|
|
Output Cables
|
4.0mm², 50cm (+), 50cm (-), length can be customized
|
|
Connector
|
MC4 Compatible
|
|
Mechanical Load
|
Front Side Max. 5400Pa, Rear Side Max. 2400Pa
|
|
Temperature Characteristics
|
|
|
Pmax Temperature Coefficient
|
-0.350%/℃
|
|
Voc Temperature Coefficient
|
-0.275%/℃
|
|
Isc Temperature Coefficient
|
+0.045%/℃
|
|
Operating Temperature
|
-40～+85℃
|
|
Nominal Operating Cell Temperature(NOCT)
|
45±2℃
|
