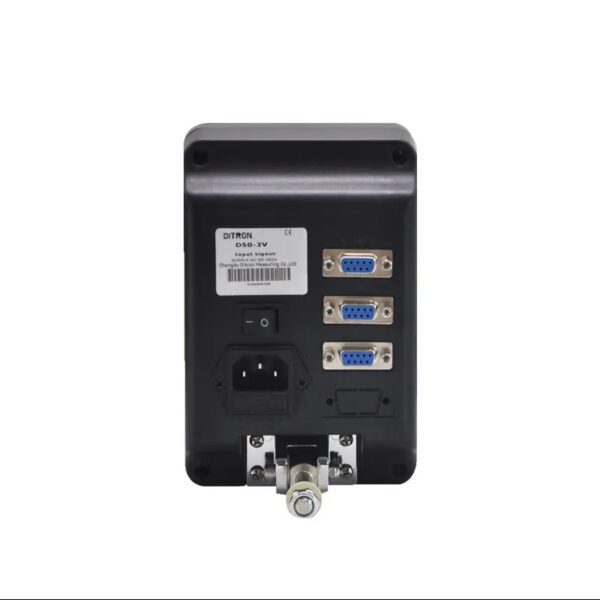

Digital Readout Parameters
Voltage Range | AC80V-260V/50HZ-60HZ |
Power Dissipation | 15W |
Working Temperature | -10ºC~60ºC |
Coordinate Display | 1,2,3 Axis |
Operating Keypad | Mechanical Keypad |
Input Signal | 5VTTL/RS422 |
Running input signal frequency | ≤4MHZ |
Resolution | 0.1um,0.2um,0.5um,1um,2um,2.5um,5um,10um |
Basic function
- Zeroing, Date recovery
- Input Coordinates
- Metric / British Units
- Power off memory Functions
- Encoder selection (rotary encoder or linear encoder )
- Resolution Setting
- Linear compensation
- Counting direction setting
Features
- 3.5″ true color LCD screen, easy to recognizing.
- Optional for RPM function and RS232 protocol.
- High integration makes the performance be stable.
- Lathe mode with Z+Z1 and Diameter&Radius conversion, Milling mode with PLD and PCD Function.
- Smart checking of the inner data and power supply.
- Can connect with both linear scale and rotary encoder.
