Digital Readout Equipment

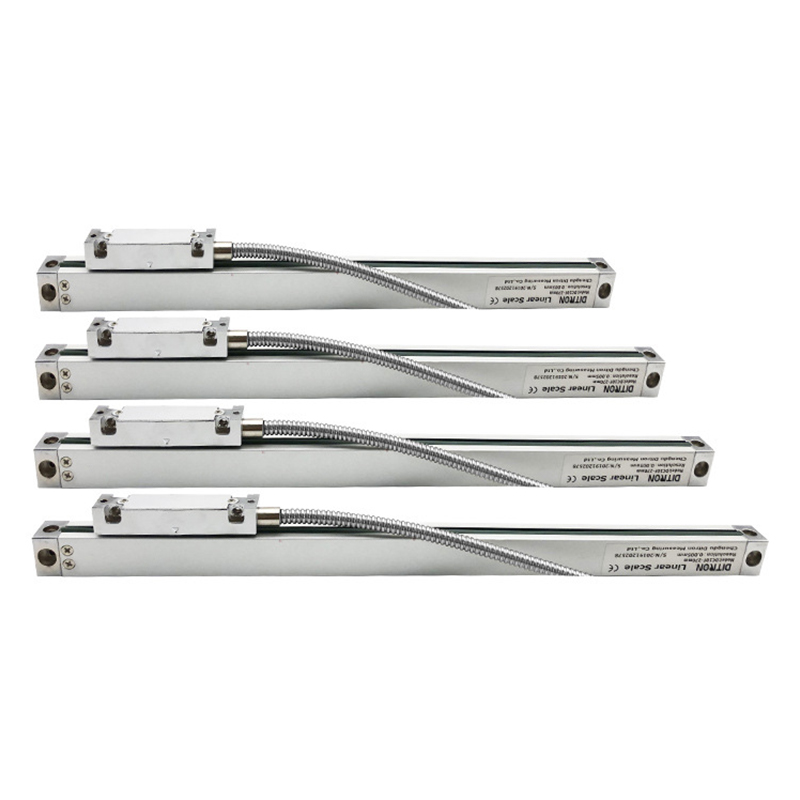

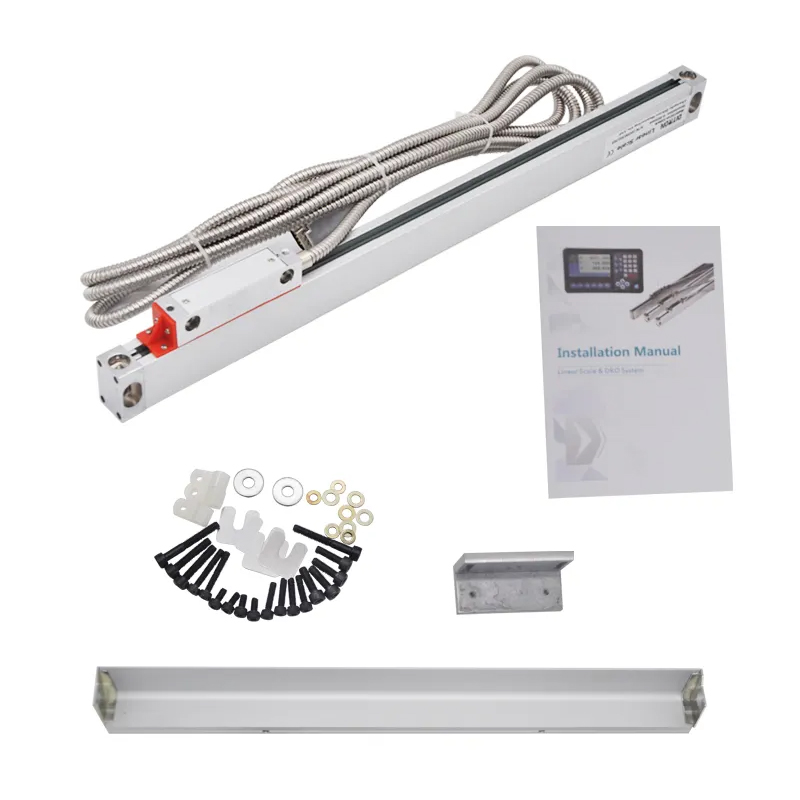

Linear Scale High Accuracy Linear Encoder Ruler 50mm-3000mm 5μm Resolution Linear Glass Scale Grating Encoder
NOTE: Prices may vary by product model and material.
- Heavy duty, very robust, ideal for large machines

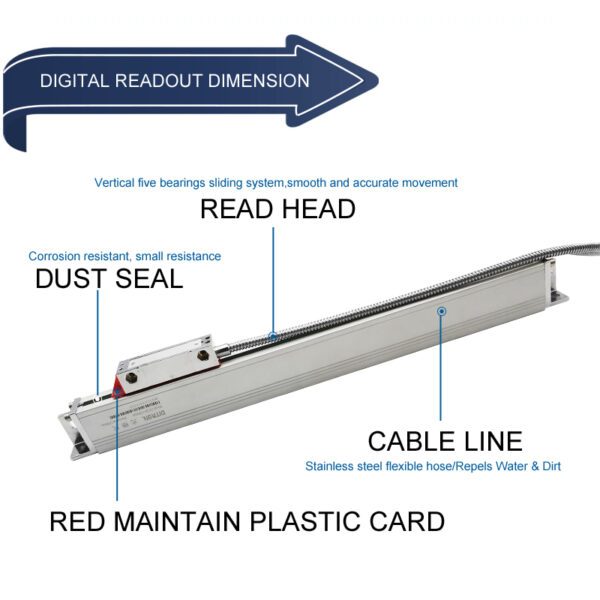

- 45° five bearings sliding system, smooth and accurate movement
- Calibrated by Laser interferometer, accuracy guaranteed
- Full sealing structure, swarf and coolant proof
$89.00
CompareTechnical parameters of the Linear Scale
| Measuring Length | 50-3000mm |
| Resolution | 0.1um, 0.5um, 1um, 5um, 10um(can customize) |
| Output Signal | 5VTTL, 5VRS422 |
| Cross Section | 27*44mm |
| Accuracy | ±5μm, ±10μm/M |
| Working Temperature | -10ºC～60ºC |
| Sealing Protection | IP55 |
| Max.Moving Speed | 60M/Min |
| Reference Point | :Every 50mm |
Superiority
- Glass precision measuring grating is adopted for the Linear Encoder to ensure high precision.
- Individualized components makes it very easy to install, maintain and repair.
- DC series Linear Scale can be used on all kinds of machines with digital readout together that can help processing in the machines by locating the positions.
