Vacuum Filtration Equipment Specification:
Basic Data | Model | Stainless Steel Frame with Pulley | |||
Model-10L | Model-20L | Model-30L | Model-50L | ||
Glass | GG-17 High Borosilicate Glass | ||||
Filter Cup | 20L | 20L | 50L | 50L | |
Collect Flask | 10L | 20L | 30L | 50L | |
1gallon(USA)=3.785 412L | |||||

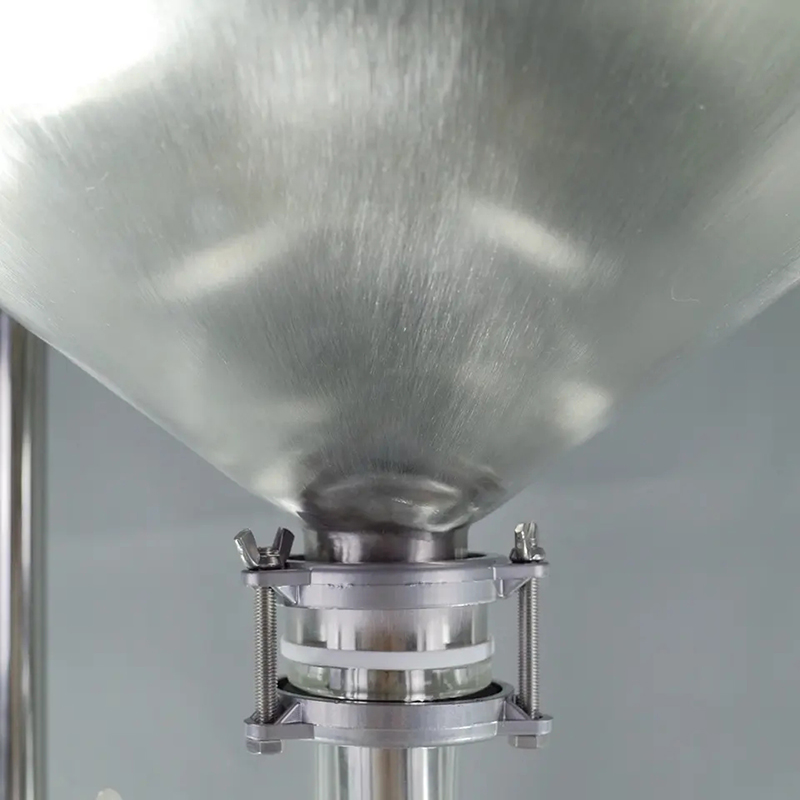

Funnel | φ360*220 | φ360*220 | φ485*295 | φ485*295 | |
304 Stainless Steel | |||||
Filter Disk | 4mm | ||||
Vacuum Mouth | OD13mm/ID10mm | ||||
Discharge Valve Ground Clearance | 350mm | 390mm | 350mm | 300mm | |
External Size | 460*460*1370mm | 460*460*1480mm | 600*600*1600mm | ||
Optional Configure | Main Support | Tray Type is Optional | |||
Frame Part | SS316 or SS304 Spray Teflon | ||||
Our laboratory glass and laboratory instruments are all independently developed and can be customized according to the actual requirements of customers |

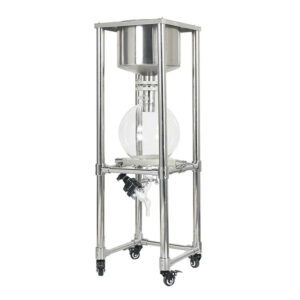

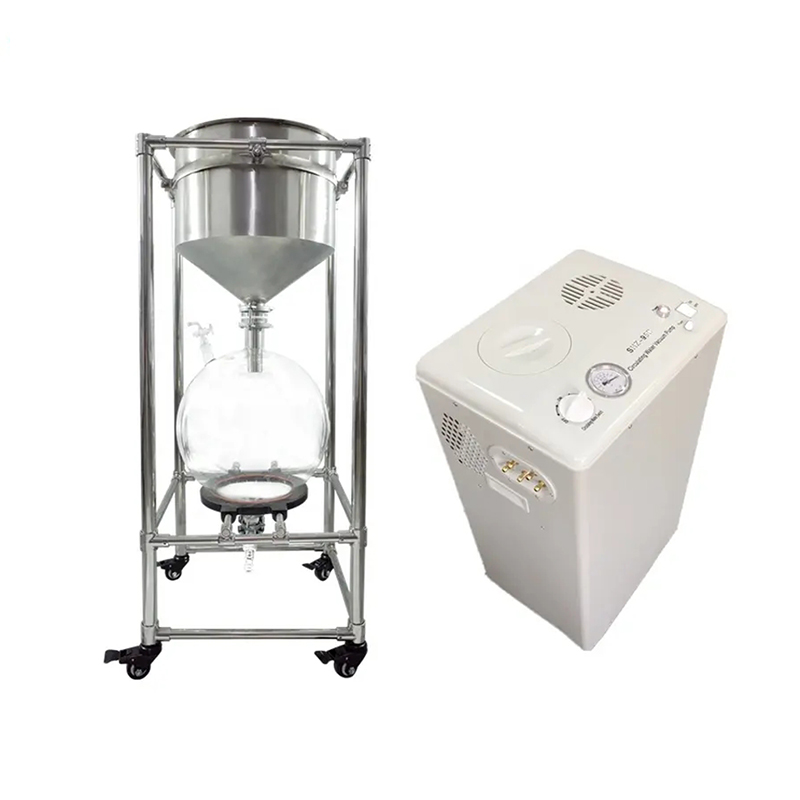

VF series vacuum filter is a special laboratory filter,it matched with the microporous membrane of different aperture, adopts vacuum suction filter, can be used in the research of chemical analysis, instrumental analysis,sanitary inspection pharmaceutical industry, and agricultural machinery, automotive, construction machinery and so on for liquid-liquid Extraction or liquid-soild filtration, liquid filtration, to detect and remove fluid of the particles and bacteria, for example:the sterile aseptic filtration test, medium, small and medium-sized power internal combustion engine clean, jet fuel and hydraulic system of solid particle pollution weight method, such as grating film. also applies to the hydraulic oil, aviation kerosene, and water quality of high purity reagent counting method.
