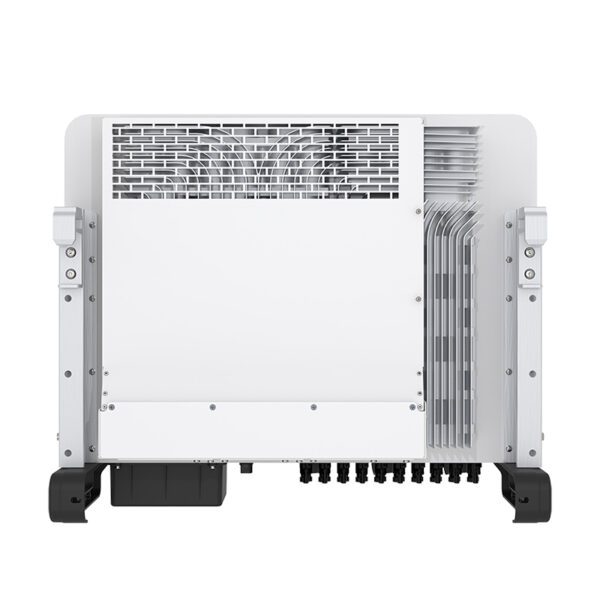

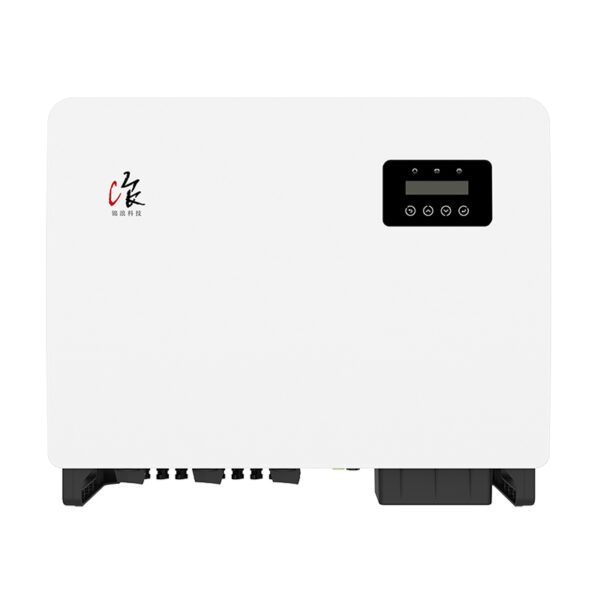

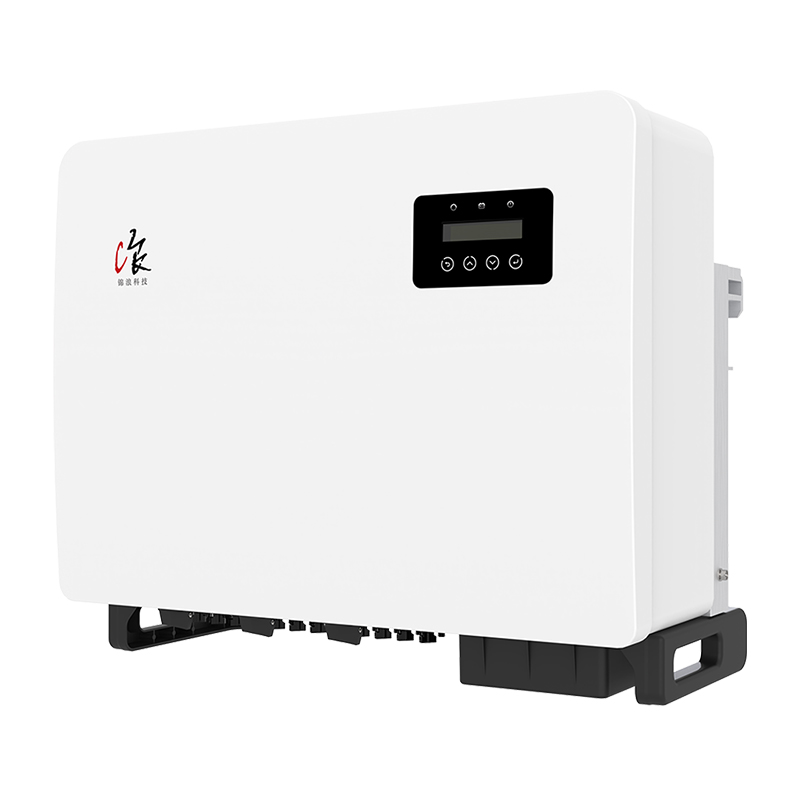

Jinlang three-phase grid-connected inverter 50KW photovoltaic inverter 6-way MPPT string solar inverter
Maximum efficiency 98.7%
5/6-way MPPT design, support multi-orientation
AFCI protection, effectively reducing the risk of fire on the DC side (optional)
IP68 smart fan with little heat dissipation, reliable and efficient
Support for nighttime SVG functionality
High-precision string-level monitoring, intelligent IV curve scanning
Support DC-side string two-in-one connection
10/12 string inputs, supporting more than 150% DC side over-provisioning
string maximum current 16A
Support PID repair at night to increase system power generation (optional) 100% of key components are selected from world-renowned brands
IP66, C5 corrosion protection
Support anti-backflow function
One-click scan code to access Jinlang cloud, support remote upgrade and settings
Support aluminum wire access, save the cost of AC cables Support PLC/GPRS/WiFi communication mode, reduce communication cable and construction costs
$2,615.00
CompareG5-GC(50-60)K is Ginlong’s new generation three-phase string inverter, suitable for industrial, commercial and ground power station projects. The single-string input current is increased to 16A, which is fully compatible with various high-efficiency modules and bifacial modules, and the system MPPT density is increased to 100MPPT/MW, which is more suitable for photovoltaic power station projects with various orientations and complex systems.
With IP66 protection level and C5 anti-corrosion level, it can easily cope with more severe application environments. At the same time, it supports functions such as PLC communication, AC and DC cable design optimization, intelligent I-V curve scanning, and remote operation and maintenance, which can effectively reduce system costs, simplify operation and maintenance, and improve system efficiency.
| G5-GC50K | |
| DC input | |
| Maximum input voltage: | 1100V |
| Starting voltage: | 195V |
| Maximum input current: | 5*32A |
| Number of MPPTs/Maximum number of input strings: | 510 |
| Rated input voltage: | 600V |
| MPPT voltage range: | 180-1000V |
| Maximum input short circuit current: | 5*50A |
| AC output | |
| Rated output power: | 50kW |
| Maximum active power: | 55kW |
| Rated grid frequency: | 50Hz |
| Maximum output current: | 83.6A |
| Total current harmonic distortion: | <3% |
| maximum apparent power | 55kVA |
| Rated grid voltage: | 3/N/PE. 220/380V |
| Rated grid output current: | 76.0A |
| Power due to: | >0.99 ( 0.8 lead ….0.8 lag) |
| efficiency | |
| maximum efficiency: | 98.70% |
| Chinese efficiency: | 98.10% |
| Protect | |
| DC reverse polarity protection: | have |
| AC output overcurrent protection: | have |
| Grid Monitoring: | have |
| Temperature protection: | have |
| I/V curve scan: | have |
| Integrated DC switch: | have |
| Integrated AFCI (DC Fault Protection): | optional |
| AC short circuit protection: | have |
| Surge protection: | DC secondary/AC secondary |
| Island Protection: | have |
| String Monitoring: | have |
| PID repair: | Optional (PID repair function is not compatible with negative ground or nighttime SVG functions) |
| Negative ground: | optional |
| Basic parameters | |
| Dimensions (WH~D): | 691*578*338 mm |
| Topology: | Transformerless |
| Working environment humidity: | 0-100% |
| Protection class: | IP66 |
| Maximum working altitude: | 4000m |
| Safety/EMC standard | IEC 62109-1/-2, IEC 62116, IEC 61000-6-1/-2/-3/-4 |
| weight: | 54.5kg |
| Self-consumption at night: | <1W |
| Working temperature: | -25~+60°C |
| cooling method: | Smart Redundant Air Cooling |
| Grid-connected standard: | NB/T 32004 |
| Specification | 530w, 535w, 545w |
|---|
Related products
-
Ginlong Solar Inverter

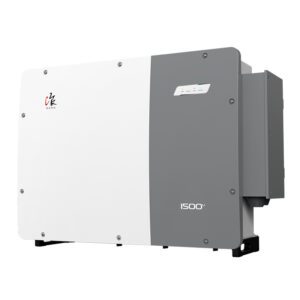

Jinlang196-230kW three-phase string inverter, GCI-(196-230)K-EHV-5G three-phase string inverter
Ginlong Solar InverterJinlang196-230kW three-phase string inverter, GCI-(196-230)K-EHV-5G three-phase string inverter
196-230kW three-phase string photovoltaic inverter, 1500V DC input and 800VAC output, the first choice for large-scale power plants to reduce costs and increase efficiency. The highest efficiency reaches 99%, 6/9/12/14 MPPT, supports 28 inputs, single-string maximum current 15A/20A, perfectly matches 500W+ double-sided modules, and supports high-level matching scheme design, bringing more benefits to the power station. The DC side supports “Y” type DC terminal connection, and the AC side supports the connection of large-diameter aluminum alloy cables. At the same time, it matches the PLC communication mode, effectively reducing the investment cost of the power station. Optional built-in anti-PID function and AFCI function, this model meets IP66 protection level, making the power station more secure and stable. High-precision string-level monitoring and I-V curve scanning effectively improve the efficiency of power station operation and maintenance and reduce operation and maintenance costs.
SKU: n/a -
Ginlong Solar Inverter

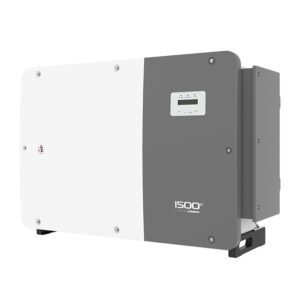

Jinlang Technology 320kW three-phase string photovoltaic inverter, G6-GU320K-EHV industrial and commercial solar photovoltaic inverter
Ginlong Solar InverterJinlang Technology 320kW three-phase string photovoltaic inverter, G6-GU320K-EHV industrial and commercial solar photovoltaic inverter
Ginlong Technology’s 320kW three-phase string photovoltaic inverter, 1500V DC input and 800VAC output, aims to provide more cost-effective adaptation products for large power plants. The product has a maximum efficiency of 99%, 12/16-channel MPPT, supports a maximum of 32-channel input, and a single-string maximum current of 20A. It perfectly matches high-efficiency and high-power components, and supports 150% high ratio scheme design, bringing more benefits to the power station. The AC and DC connection port is optimized, and at the same time it matches the PLC communication mode, which effectively reduces the investment cost of the power station. Optional built-in PID repair function and no fuse design, this model meets IP66 protection level, making the power station safer and more stable. High-precision string-level monitoring and I-V curve scanning can effectively improve the efficiency of power plant operation and maintenance and reduce the cost of later operation and maintenance.
SKU: n/a -
Ginlong Solar Inverter
Jinlang GCI-(40-70)K large three-phase commercial string inverter, 40-70kW large three-phase string inverter, solar grid-connected dedicated
Ginlong Solar InverterJinlang GCI-(40-70)K large three-phase commercial string inverter, 40-70kW large three-phase string inverter, solar grid-connected dedicated
380V: 40K/50K/60K-4G; 480V: 50K-HV/60K-HV/70K-HV-4G; 540V:70K-HV
Ginlong large three-phase commercial string inverter, suitable for industrial and commercial and ground power stations, three-phase output, 4-way MPPT access, compatible with high-power components; purchase components from 100% world-renowned manufacturers, big brand high-quality; light design, easy installation; THDi is less than 3%, a perfect power station monitoring solution for power grid harmonics; intelligent backup redundant heat dissipation design.SKU: n/a -
SUNGROW Solar Inverter

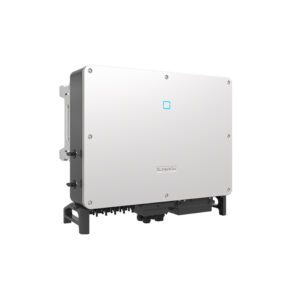

SUNGROW Inverter SG33/40/50CX 3 Phase 50Hz/60Hz LED Display 33KW 40KW 50KW Multi-MPPT String Solar Inverter for 1000 Vdc System
