Industrial Hot Water Boiler 15-2100KW Automatic Electric Heating Boiler Hotel Restaurant Hospital Electric Hot Water Boiler

Add to wishlist
Compare

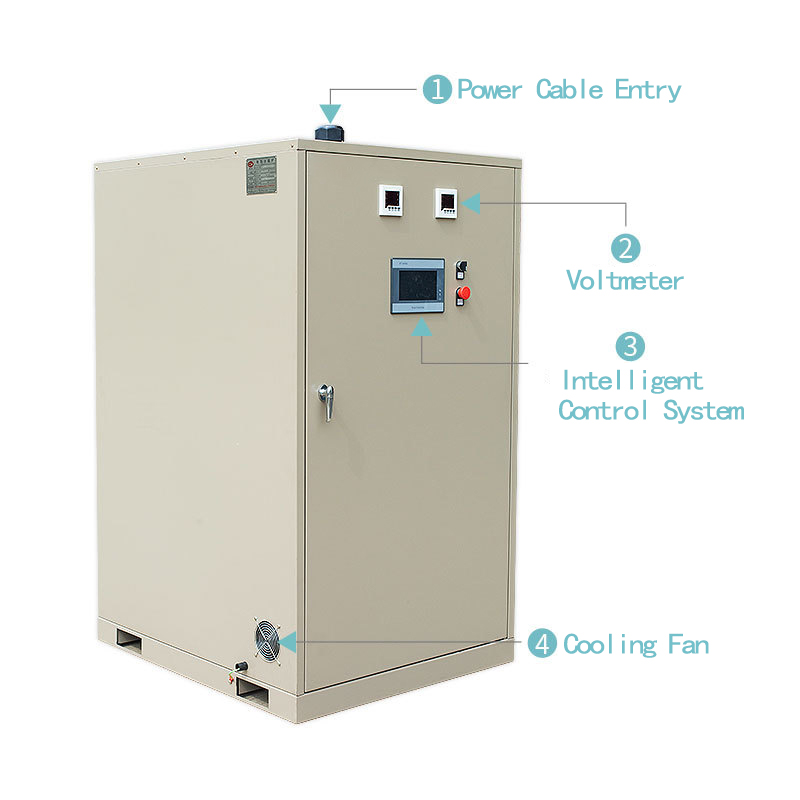

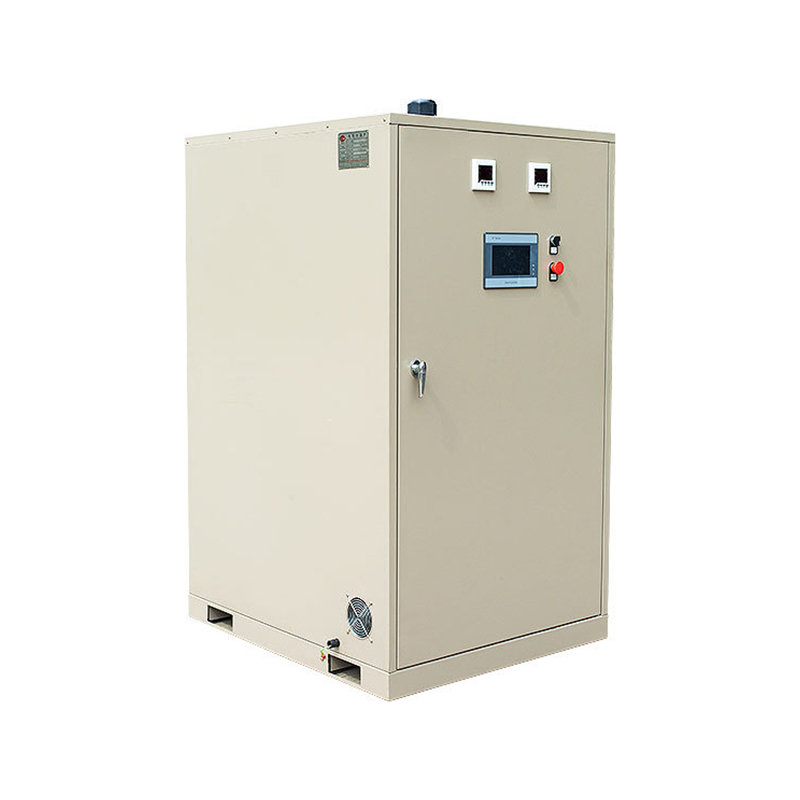

  • Product name: Vertical Atmospheric Pressure Electric Hot Water Boiler
  • Rated thermal power: 13,000-250,000 Kcal/h
  • Rated working pressure: OMPa
  • Rated outlet/return water temperature: 85C/65°C
  • Design thermal efficiency: 98%
  • Water capacity: 35-500L

NOTE: Prices may vary by product model and material.

$6,370.00

Compare

This hot water boiler is suitable for heating, bathing or providing sanitary hot water in factories, schools, office buildings, hotels, hospitals, etc. It is matched with the chiller to form a heating and cooling central air-conditioning system.

Rated thermal power KW 15 24 30 36 45 60 96 120 192
Kcal/h 13000 20000 26000 30000 40000 50000 70000 100000 150000
Fixed work stress MPa 0 0 0 0 0 0 0 0 0
Rated outlet/return water temperature ºC 85/65(90/70 85/65(90/70 85/65(90/70 85/65(90/70 85/65(90/70 85/65(90/70 85/65(90/70 85/65(90/70 85/65(90/70
Number of heating tube groups*power Group*kw 1*15 2*12 2*15 2*18 3*15 4*15 4*24 5*24 8*24
Design Thermal Efficiency % 98 98 98 98 98 98 98 98 98
Water capacity L 35 35 35 55 55 110 245 245 305
Shipping weight T 0.1 0.1 0.1 0.14 0.15 0.23 0.27 0.28 0.38
Rated thermal power KW 240 300 360 480 600 720 1056 1440 2100
Kcal/h 200000 250000 300000 400000 500000 600000 900000 1200000 1800000
Fixed work stress MPa 0 0 0 0 0 0 0 0 0
Rated outlet/return water temperature ºC 85/65(90/70 85/65(90/70 85/65(90/70 85/65(90/70 85/65(90/70 85/65(90/70 85/65(90/70 85/65(90/70 85/65(90/70
Number of heating tube groups*power Group*kw 10*24 10*30 15*24 20*24 25*24 30*24 44*24 60*24 70*30
Design Thermal Efficiency % 98 98 98 98 98 98 98 98 98
Water capacity L 360 500 695 835 980 1250 1750 2230 2100
Shipping weight T 0.43 0.55 0.61 0.7 1.15 1.55 1.9 2.24 3.73
