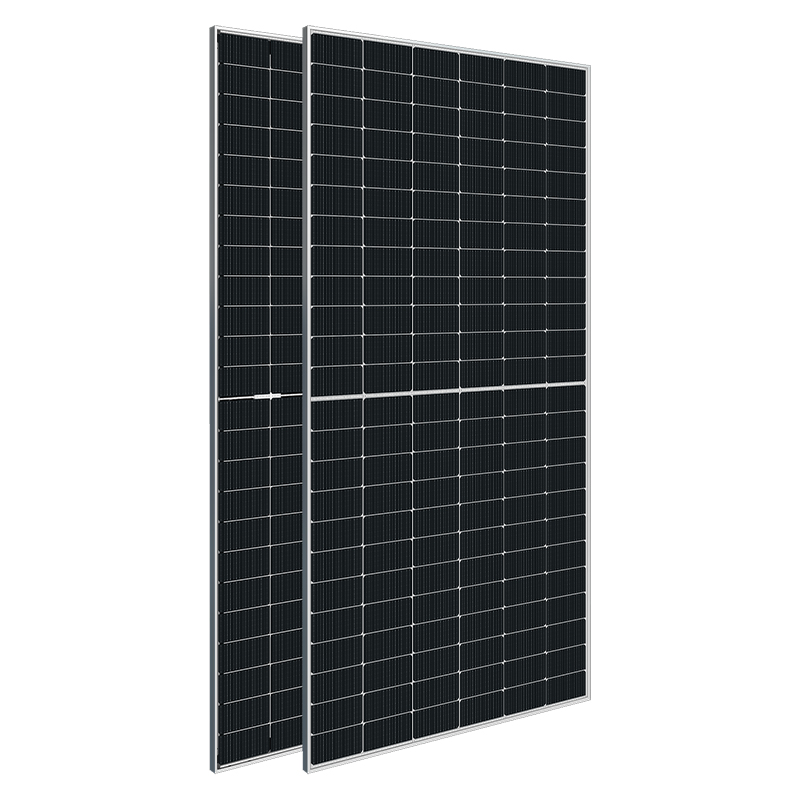

Household solar panel ASTRO N5 double-sided 580W series (182), roof photovoltaic solar panel 560W~580W
Power range: 560~580W
Power tolerance: 0~+5W
Highest module conversion efficiency: 22.5%
Attenuation in the first year: ≤ 1.0%
Attenuation over the years: ≤ 0.4%
● TOPCon / low temperature coefficient
● Lossless cutting / PID resistant
● Low BOS and LCOE
● Double-sided power generation
$203.00 – $211.00
CompareSolar panel Mechanical parameters
Component Dimensions (L x W x H): 2278 x 1134 x 30 mm
Cell: n-type monocrystalline silicon
Number of cells: 144 (6*24)
Bezel Type : Silver White Anodized Aluminum Profile
Glass thickness: 2.0+2.0 mm
Cable length (including connectors): vertical installation: ( + ) 350 mm, ( – ) 250 mm;
or customized;
Cable cross-section (IEC/UL): 4 mm² / 12 AWG
① Maximum test mechanical load: 5400 Pa (front) / 2400 Pa (rear)
Connector Type (IEC/UL): HCB40 (Standard) / MC4-EVO2A (Optional)
Packaging parameters
Component weight: 32.1 kg
Quantity per pallet: 36 pieces / pallet (subject to the contract)
Single pallet weight: 1215 kg
Loading capacity: (17.5m flatbed truck) 900 pieces / car
① Please refer to Chint component installation manual or contact our company for confirmation; maximum test mechanical load = 1.5 maximum design mechanical load.
Electrical performance parameters
STC: light intensity 1000W/m2, battery temperature 25C, air quality = 15
| Rated peak power (Pmpp /Wp) | 560 | 565 | 570 | 575 | 580 |
| Rated peak voltage (mpp /V) | 42.44 | 42.61 | 42.77 | 42.94 | 43.11 |
| Rated peak current (lmpp /A) | 13.2 | 13.26 | 13.33 | 13.39 | 13.45 |
| Open circuit voltage (Voc /V) | 50.5 | 50.7 | 50.9 | 51.1 | 51.3 |
| Short circuit current (lsc A) | 13.93 | 14.02 | 14.1 | 14.19 | 14.28 |
| Module Overall Area Efficiency | 21.70% | 21.90% | 22.10% | 22.30% | 22.50% |
NMOT: light intensity 800W/m, ambient temperature 20C, mass = 1.5, wind speed 1m/s
| Rated peak power (Pmpp /Wp) | 421.1 | 424.9 | 428.6 | 432.4 | 436.2 |
| Rated peak voltage (Vmpp /V) | 39.94 | 40.1 | 40.26 | 40.42 | 40.59 |
| Rated peak current (lmpp /A) | 10.54 | 10.6 | 10.65 | 10.7 | 10.75 |
| Open circuit voltage (Voc/V) | 47.97 | 48.16 | 48.35 | 48.54 | 48.73 |
| Short-circuit X-ground roller circuit current (lsc /A) | 11.25 | 11.32 | 11.39 | 11.46 | 11.53 |
| Specification | 560w, 575w, 580w |
|---|
