Fruit and Vegetable Juicer Industrial Automatic Commercial Production Line

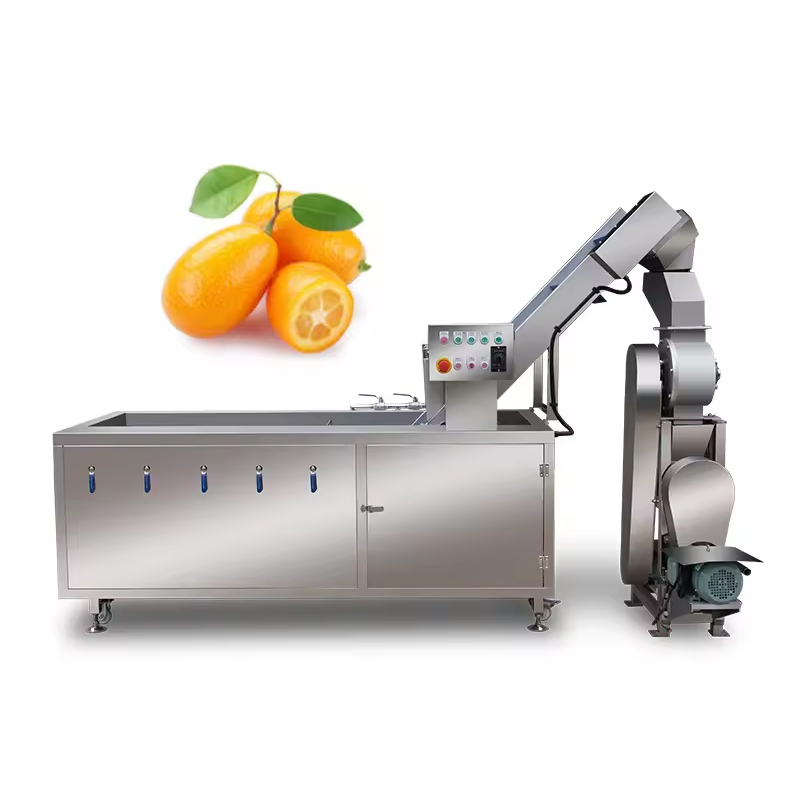

The washing and juice extraction production line is composed of bubble vegetable washing machine and juicer. The production line is suitable for beverage processing and other enterprises. It has high juice yield, good output, easy operation and easy cleaning.
Adopting a combination of three cleaning methods: bubble, cyclic surfing, and high-pressure spraying, ozone sterilization degradation of residual agricultural vegetables, so that vegetables can be thoroughly cleaned in all directions. The discharge action is lifted by conveying,and high-pressure spraying is performed on the elevator to further clean the fruits and vegetables.

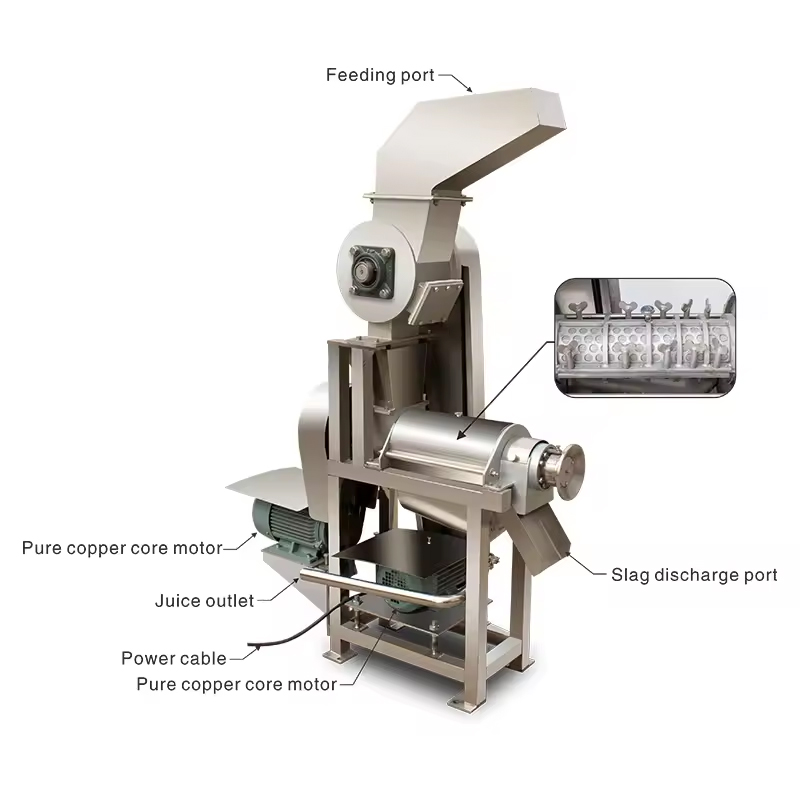

The working principle of large-scale juicer, the bottom diameter of the screw shaft gradually increases along the direction of the slag outlet and the screw pitch gradually decreases. When the material is pushed by the screw shaft, the volume of the screw cavity is reduced, forming a squeeze of the material. The squeezed juice flows into the juicer at the bottom through the filter screen, and the waste is discharged through the annular gap formed between the spiral and the pressure-regulating tapered part. The size of the gap should be determined by the user’s specific process requirements.
It is suitable for squeezing a variety of fruits, such as apples, pears, oranges, papaya, watermelon,cantaloupe, winter melon, pumpkin and other fruits. It can be customized according to customer needs.



Technical parameters of Fruit and Vegetable Juicer

Machine name Ozone disinfection bubble vegetable washing machine
Machine voltage 380V (Voltage can be customized)
Machine power 2.6KW
Machine capacity 1000KG/H

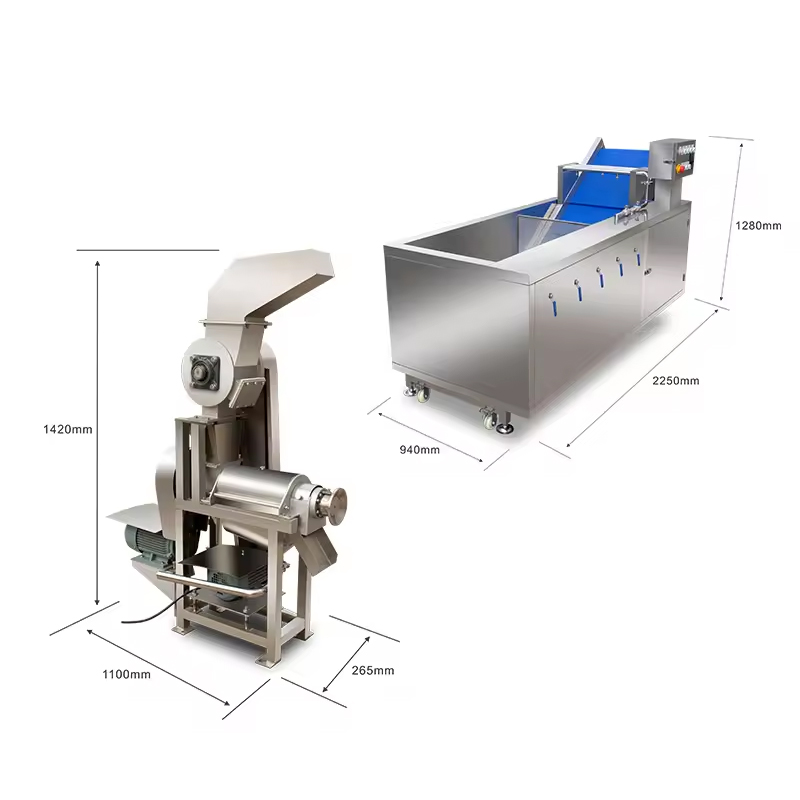

Machine size 2250mm×940mm×1280mm
Machine weight 185KG

Product name Juicer
Machine size 1100mm×265mm×1420mm
Machine weight 200KG
Motor weight 2.25KG
Spiral speed 400 rpm
Crushing speed 450 rpm
Filter aperture 0.6mm
