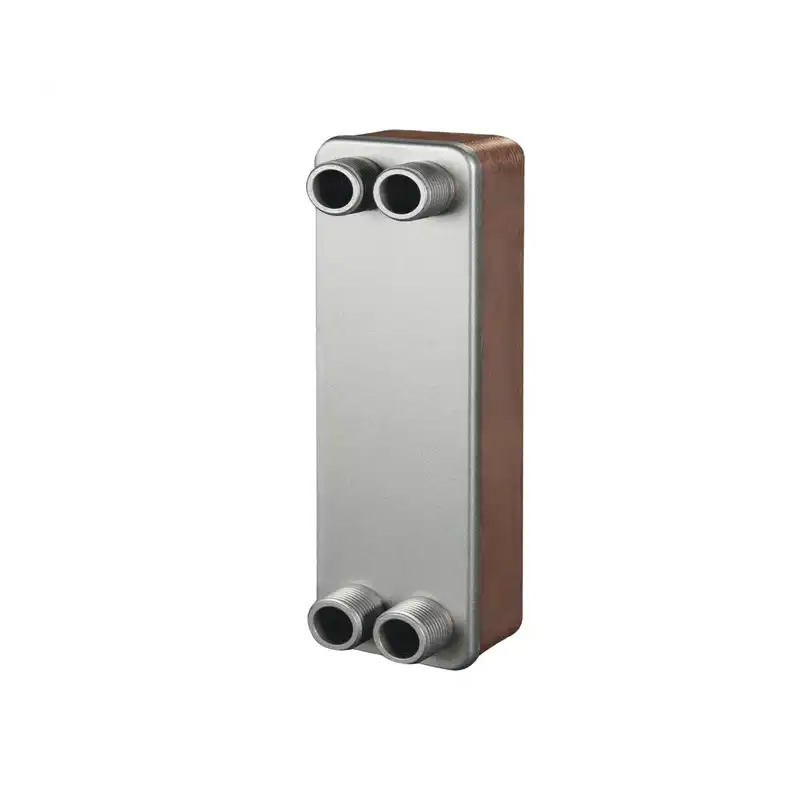

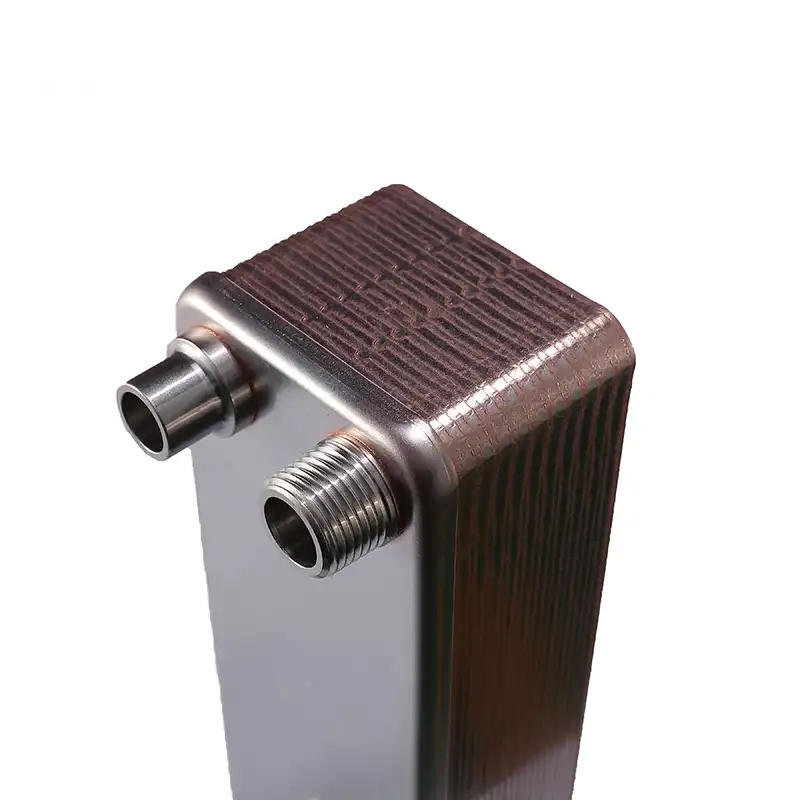

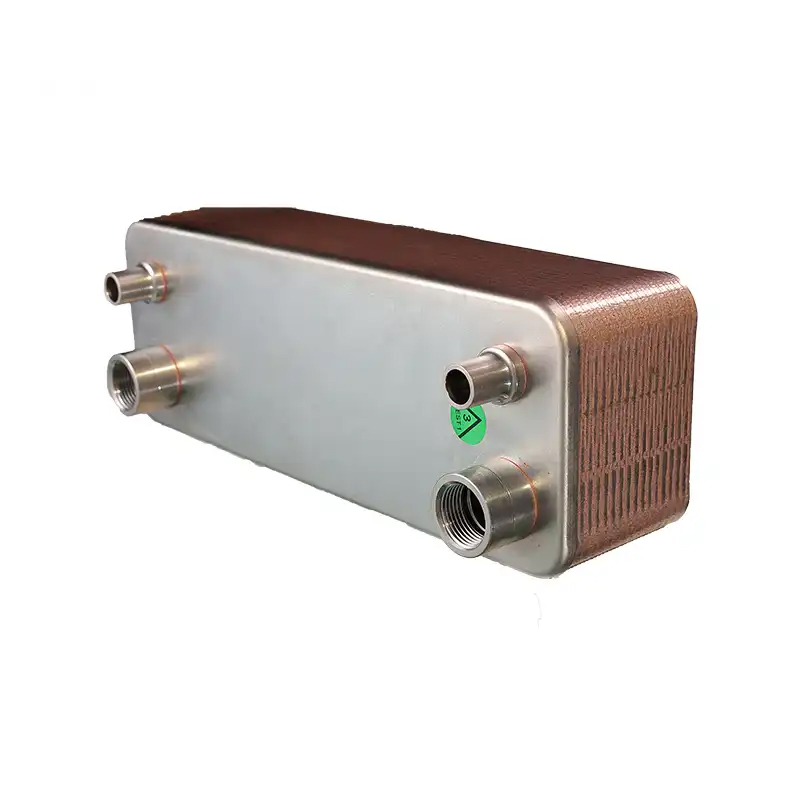

FHC028 is Equal to CB27 brazed heat exchanger for water-to-water

The plate heat exchanger is a detachable heat exchange equipment composed of many corrugated heat transfer plates and rubber gaskets. The heat transfer plates are arranged at certain intervals, and then pressed with rubber gaskets to form a plate heat exchanger.
When the plates are assembled, the two groups are arranged alternately, and the plates are fixed with rubber sealing strips. The function is to prevent fluid leakage and form a narrow net-shaped flow channel between the two plates.
The heat exchange plates are pressed into various corrugated shapes to increase the area and rigidity of the heat exchange plates, and to enable the fluid to form turbulent flow at low flow rates to enhance heat transfer.

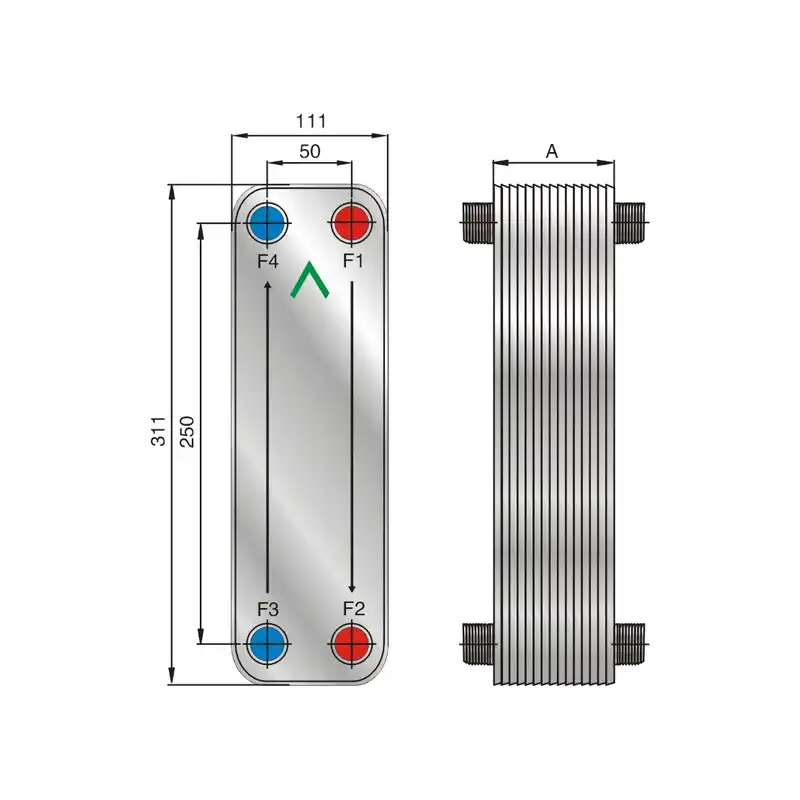

The four corner holes on the heat exchange plates are the distribution pipes and drain manifold of the fluid. The two heat exchange media flow into their respective flow channels to form countercurrents, and heat is exchanged through each plate.
