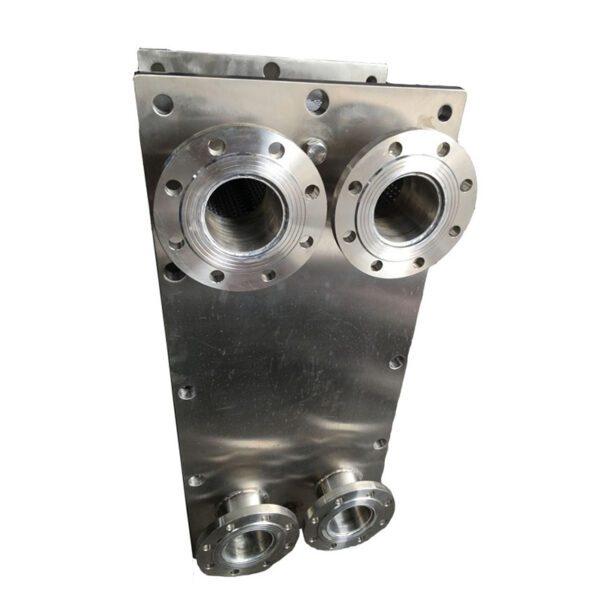

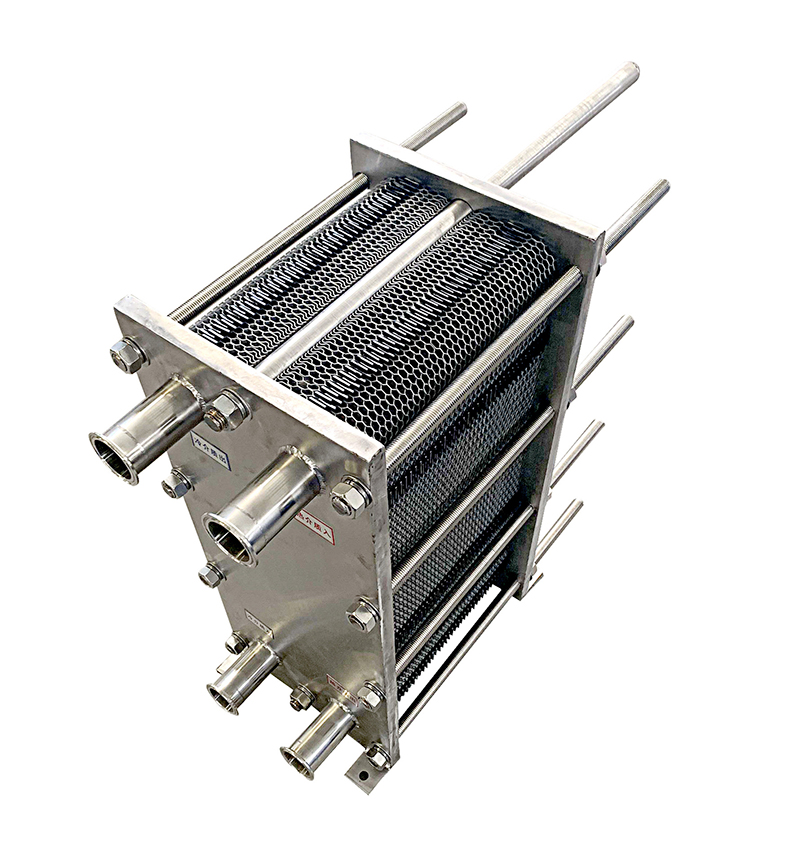

Heat exchanger Sanitary Wort Chiller built for beer

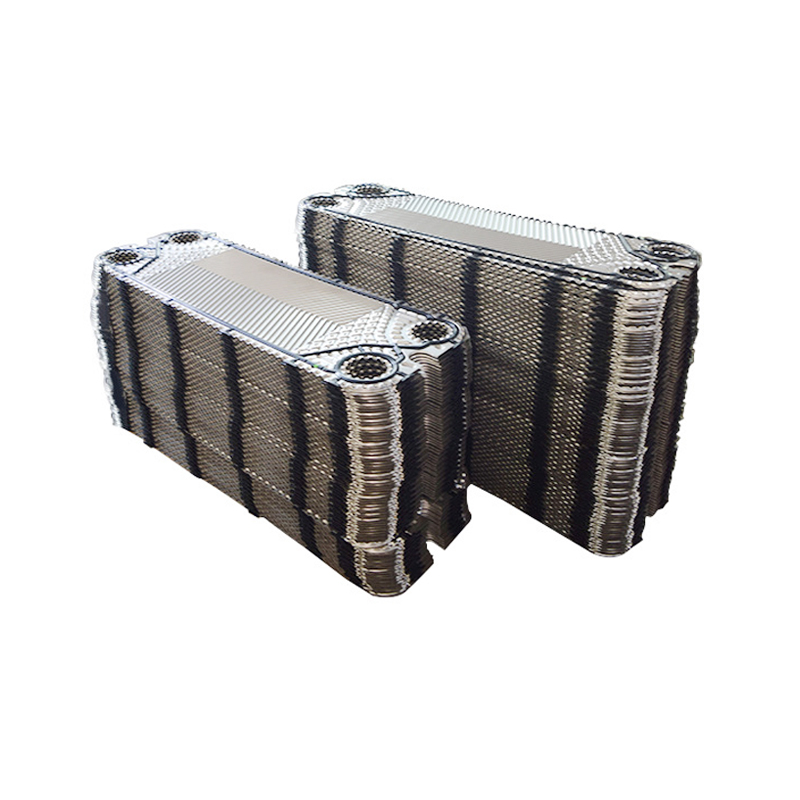

This is an extremely efficient, sanitary plate-and-frame heat exchanger with removable plates.
The heat exchanger has a small frame size which is perfect for professional-level, small-scale breweries.
$2,500.00
CompareThis is an extremely efficient, sanitary plate-and-frame heat exchanger with removable plates.
The heat exchanger has a small frame size which is perfect for professional-level, small-scale breweries.
Description
High efficiency plate frame heat exchanger
Sanitary grade
Stage: Single or Double as preferred
Tri clamp connection
EPDM gasket
Pressure: 10 bar
With thermometer for checking wort temp
With aeration unit for oxygenation.
Including: wort inlet/outlet, cold water inlet/outlet temp, flow rate etc
The second stage is an option, in case customer use glycol for cooling.
Triclamp connection
Model Capacity L/H Max piping connection
| Model | Capacity L/H | Max piping connection |
| 2M2 | 300 | 32mm |
| 3M2 | 500 | 32mm |
| 4M2 | 600 | – |
| 5M2 | 830 | – |
| 6M2 | 1.000 | 38mm |
| 8M2 | 1.300 | 38mm |
| 10M2 | 1.600 | 51mm |
| 12M2 | 2.000 | 51mm |
| 15M2 | 2.500 | 51mm |
| 18M2 | 3.000 | 51mm |
| 20M2 | 4.000 | 63mm |
| 25M2 | 5.500 | 63mm |
| 30M2 | 7.000 | 76mm |
Product Details
| Type | Plate |
| Flow Rate | 5000 – 20000 lph |
| Application | Cooler, Vaporizer, Condenser, Pharmaceutical industry,Food Process Industry,Power Generation,Hydraulic and Industrial Process etc. |
| Flow Rate (L/min) | 100 – 500 |
| Plate Heat Exchanger Type | Welded Plate and Frame, Welded Plate and Block, Gasketed Plate and Frame |
| Primary Exchanger Material | Steel, Titanium |
| Max Output Flow rate (m3/hr) | 0-10, 10-20, 100-250,100-250,0-10,10-20,30-40,40-50,50-100, 50-100, 30-40, 40-50 |
