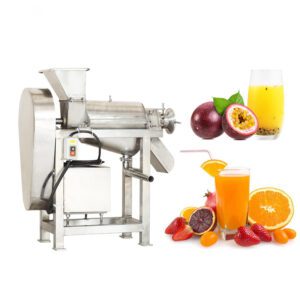

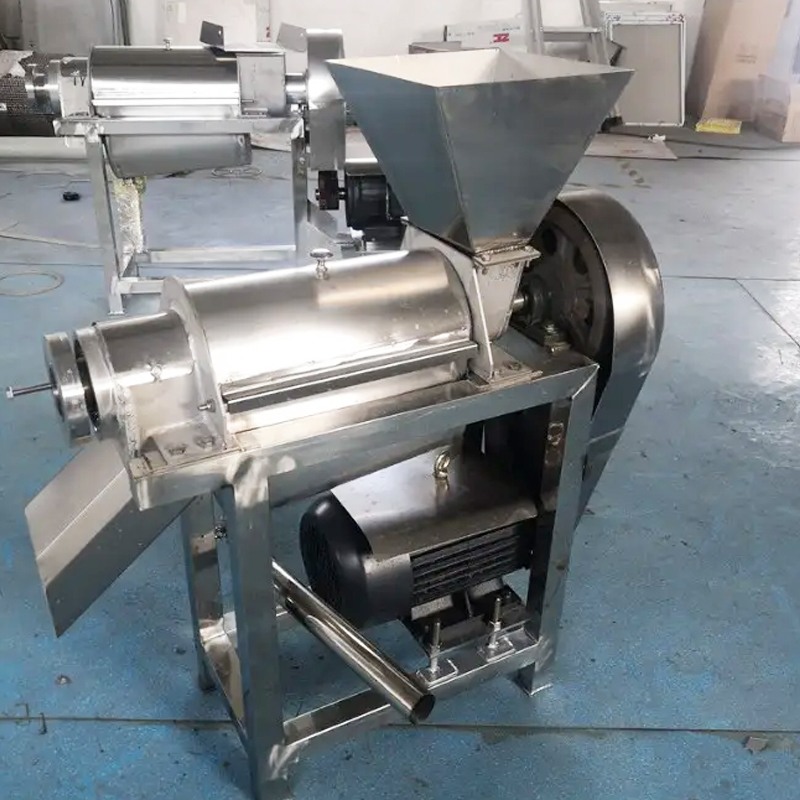

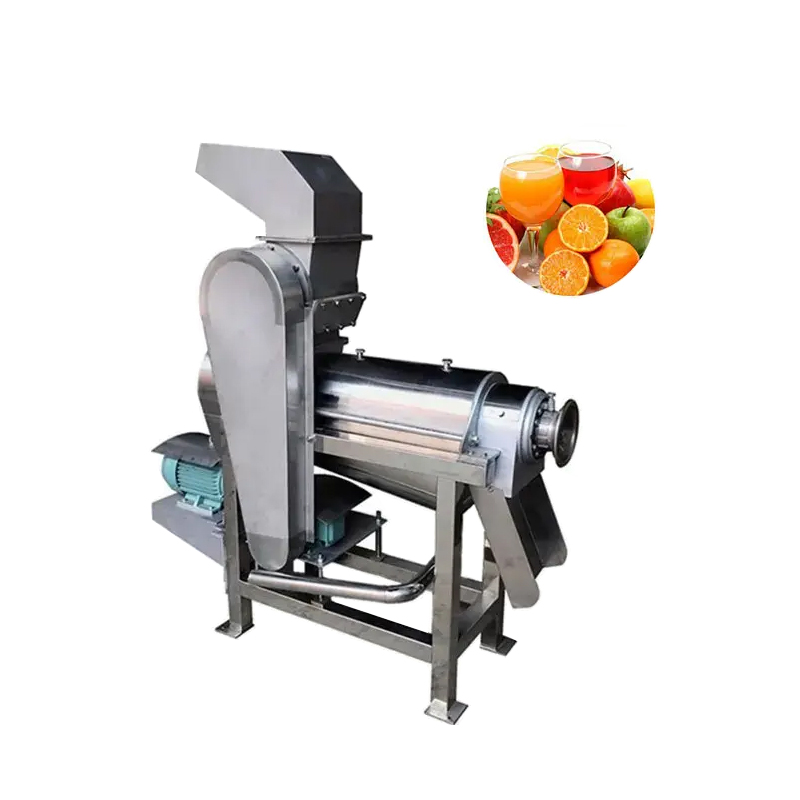

Cold Press Commercial Juice Extracting Machine/fruit Juicer Machine/screw Juicer For Fruit And Vegetable


working principle:
The screw shaft rotates clockwise along the direction of the slag outlet, the bottom diameter gradually increases and the screw pitch gradually decreases. When the material is pushed by the screw shaft, the screw cavity gradually shrinks, thereby forming a squeeze on the material.
Fruits and vegetables are put into the hopper, and under the propulsion and extrusion of the screw shaft, the squeezed juice flows into the juice container at the bottom through the filter screen, and the slag is discharged from the ring formed between the screw shaft and the conical part of the pressure regulating head. The pressure regulating head can adjust the size of the gap to adjust the resistance of slag discharge, and the slag discharge rate can be changed. The gap size of the pressure regulating head should be determined according to the process requirements of the processed fruits and vegetables.
use:
This machine is suitable for squeezing pineapple, apple, pear and other fruits and vegetables after crushing the pome fruit juice. Pushed by the screw shaft, it has the functions of crushing, juicing and slag discharge.

$1,820.00

Compare

Brief Introduction of Spiral mango juice making machine industry fruit juicers :

1.This machine uses high quality 304 stainless steel material, can be fruit juice and vegetable juice press work, with high efficiency, low energy consumption, the advantages of high juice rate.

2.The products that can be processed are as follows:

Vegetables:tomatoes,carrot,white turnip, sweet potato,potato,ginger,Chinese cabbage,green pepper, chili, bitter gourd, cucumber, etc.

Fruits: apple and pineapple, pears, orange, grape, strawberry,etc.

Features of Spiral mango juice making machine industry fruit juicers :

1.This is a kind of spiral advancing extrusion.

2.There are whole stainless steel and inner stainless steel type.

3. It can make vegetable and fruit juice.

4.One outlet juice,one outlet fruit&vegetable pulp.

5.Processing material is vegetable&fruit which is crushed into not more than 2*2cm size.

6.We can supply you with different filter screens according to your needs on the hole diameter.

Technical Parameters of Spiral mango juice making machine industry fruit juicers
Model MZ -0.5 MZ-1 MZ-1.5 MZ-2 MZ-3
Treatment capacity(t/h) 0.5 1 1.5 2.5 5
Overall dimension(mm) 780*320

*860

880*330

*900

1300*700

*1300

1540*700

*1300

2530*945

*1870

Weight(kg) 85 114 240 440 1300
Power(kw) 1.5 2.2 4 15 30
Screw diameter(mm) 88 125 175 250 400
Filter screen aperture(mm) 0.6
Rotate speed(r/min) 380
Voltage(V) 220/380
Material SUS304
