Cobalt Machine Taps 10PCS For Drilling Press Tapping Machine Cobalt plated tap M2 M3 M4 M5 M6 M8 M10 M12 High Hardness

Add to wishlist
Compare

NOTE: Prices may vary by product model and material.

  • Product use: used for drilling machines, tapping machines, automatic machine tools, machining centers, etc.
  • Superhard material tap, higher hardness, more wear-resistant.
  • Spiral tap, chip removal on the blind hole, cutting without residue.
  • Spiral point tap, chip removal under the through hole, smooth tapping.

$46.00

Compare

Models of the Cobalt Machine Taps

Specification Percent Shank dis Whole length Square path Square length Flute
M2 0.4 mm 3 mm 42 mm 8 mm 2.5 mm 3 mm
M2.5 0.45 mm 3 mm 47 mm 9.5 mm 2.5 mm 3 mm
M3 0.5 mm 4 mm 46 mm 11 mm 3.2 mm 3 mm
M4 0.7 mm 5 mm 52 mm 13 mm 4 mm 3 mm
M5 0.8 mm 5.5 mm 60 mm 16 mm 4.5 mm 3 mm
M6 1.0 mm 6 mm 62 mm 19 mm 4.5 mm 3 mm
M7 1.0 mm 7 mm 65 mm 19 mm 5.5 mm 3 mm
M8 1.25 mm 6.3 mm 72 mm 22 mm 5 mm 3 mm
M9 1.25 mm 7 mm 72 mm 22 mm 5.5 mm 3 mm
M10 1.5 mm 7 mm 75 mm 24 mm 5.5 mm 3 mm
M11 1.5 mm 8 mm 80 mm 24 mm 6 mm 3 mm
M12 1.75 mm 8.5 mm 82 mm 29 mm 6.5 mm 4 mm
M14 2.0 mm 10.5 mm 88 mm 30 mm 8 mm 4 mm
M16 2.0 mm 12.5 mm 95 mm 32 mm 10 mm 4 mm
M18 2.5 mm 14 mm 100 mm 37 mm 11 mm 4 mm
M20 2.5 mm 14 mm 105 mm 37 mm 11 mm 4 mm

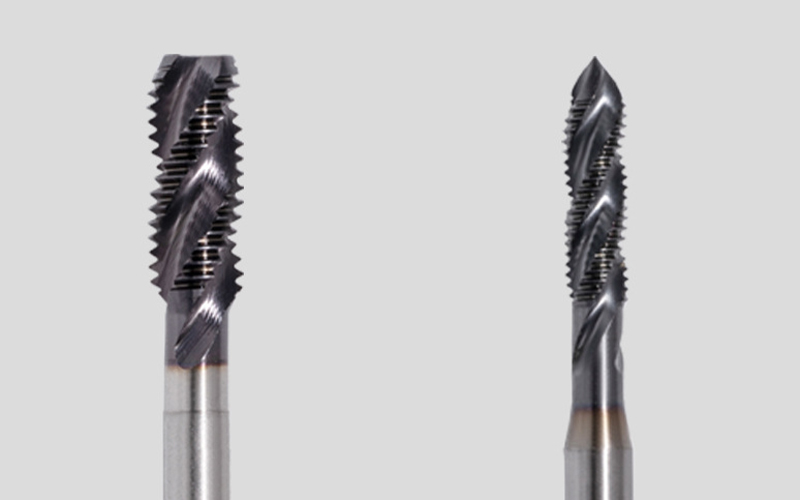

  • Name: Spiral point tap
  • Performance: Apex PO under row cutting, through hole
  • Advantages: strong heat dissipation, excellent through-hole effect
  • Uses: Cutting continuous curved materials, through-hole processing holes with axial grooves on the inner wall
  • Features: no residue in cutting, smooth and easy chip removal

  • Name: Spiral Tap
  • Performance: chip removal on the spiral, blind hole
  • Advantages: strong cutting ability, wide range of uses
  • Uses: Cutting continuous curved materials, machining blind holes with axial grooves on the inner wall, high-speed machining
  • Features: no chip clogging in the edge angle groove, strong resistance to bending damage, strong cutting performance
