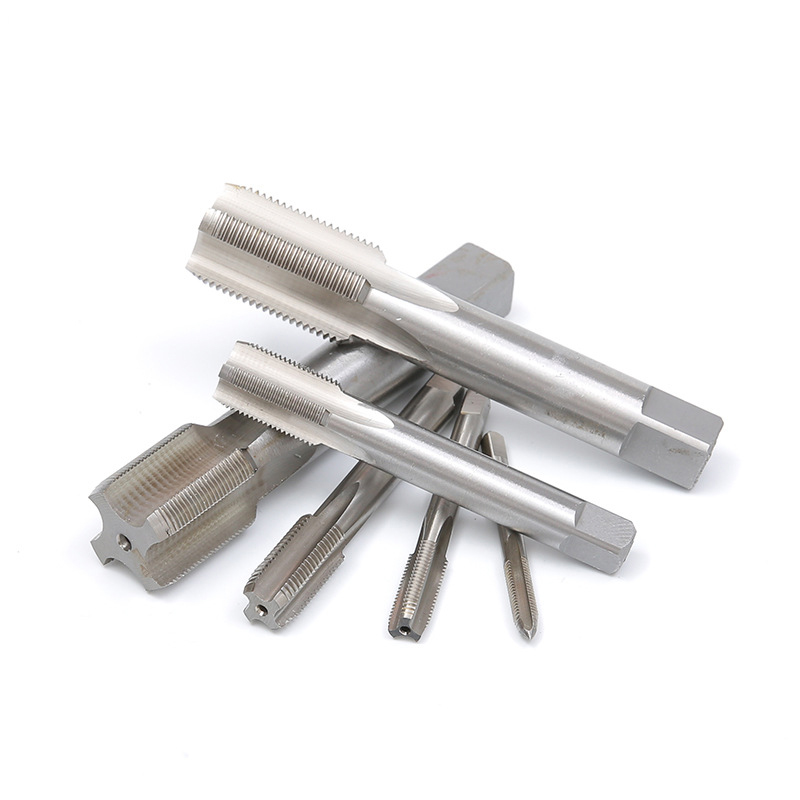

M20 x 2.5 4 Flute Straight Flute Machine Tap 4 pcs Bottom Tap Metal Machine Tool Industry
M20 x 2.5 4 Flute Straight Flute Machine Tap 4 pcs Bottom Tap Metal Machine Tool Industry - Image 2
M20 x 2.5 4 Flute Straight Flute Machine Tap 4 pcs Bottom Tap Metal Machine Tool Industry - Image 3
M20 x 2.5 4 Flute Straight Flute Machine Tap 4 pcs Bottom Tap Metal Machine Tool Industry - Image 4

M20 x 2.5 4 Flute Straight Flute Machine Tap 4 pcs Bottom Tap Metal Machine Tool Industry

Compare
  • Threader: M20 x 2.5
  • Tap Chamfer: Bottom
  • Shank Dia.: 2″
  • Material: HSS M2
  • Thread Standard: ANSI

Note: Prices may vary depending on product model and quality.

$59.00

Compare

Machine Tap scope of application: tap wrench/tap wrench (hard wood, plastic, iron plate, aluminum plate, copper plate, other soft materials)

Model M20 x 2.5 4 Flute Straight Flute Machine Tap
Tap Type Machine Tap
Tap Thread Size M20 x 2.5
Number of Flutes 4
Thread Length 4 15/32″
Tap Chamfer Bottom
Shank Dia. 2″
Tap Material High-speed steel M2

Specification Diameter Overall Length Working Depth Thread Pitch Shank Diameter Weight
M3 3mm 45mm 10mm 0.5mm 3mm 4g
M4 4mm 51mm 14mm 0.9mm 4mm 7g
M5 5mm 55mm 19mm 1.1mm 4.5mm 11g
M6 6mm 56mm 21mm 1.3mm 6mm 17g
M8 8mm 60mm 24mm 1.6mm 6mm 23g
M10 10mm 65mm 26mm 1.8mm 8mm 39g
M12 12mm 70mm 30mm 2.2mm 9mm 58g
M14 14mm 79mm 33mm 2.4mm 11mm 101g
M16 16mm 81mm 35mm 2.5mm 13mm 127g
M18 18mm 90mm 40mm 2.6mm 14mm 176g
M20 20mm 90mm 40mm 2.9mm 16mm 222g
M22 22mm 95mm 40mm 3.5mm 18mm 297g
M24 24mm 105mm 45mm 3.6mm 20mm 384g
