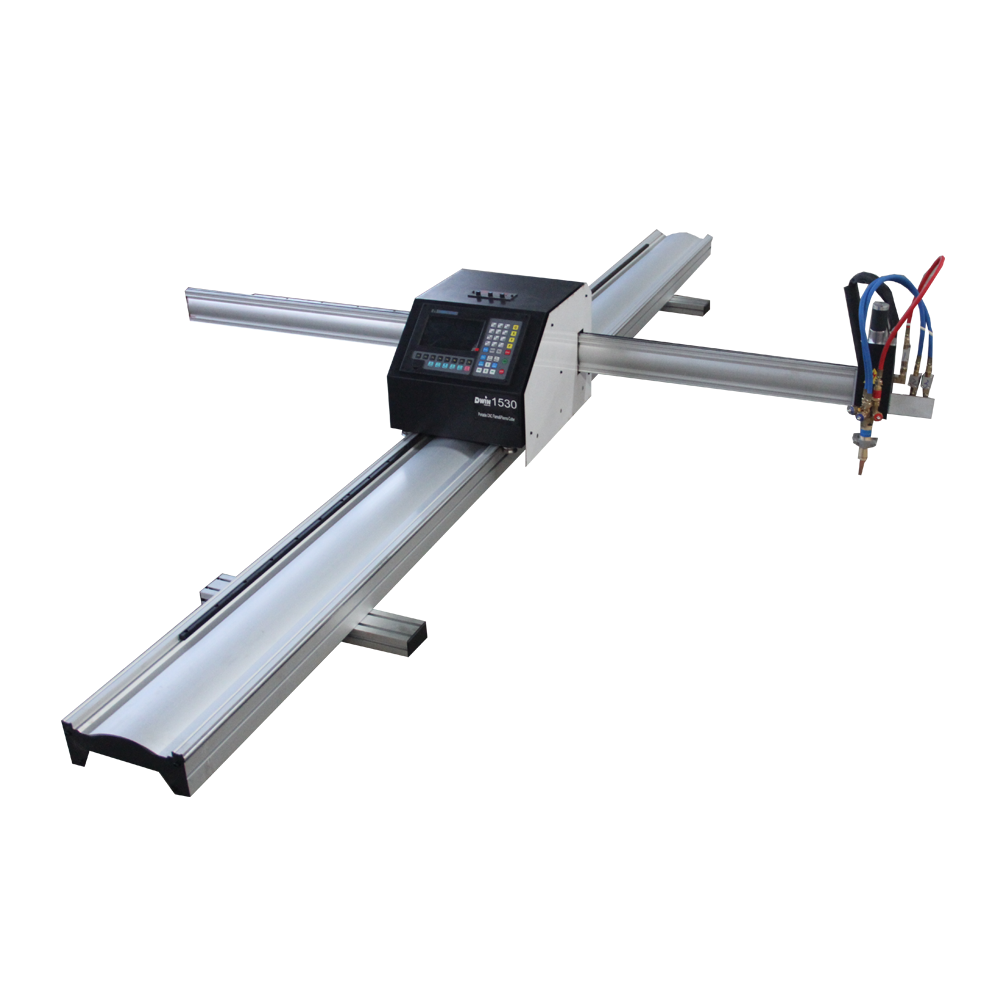

DW1530 Portable CNC Flame/Plasma Cutting Machine is tiny,the main equipment made by hard aluminum alloy with good balance, light weight, little working inertia and favorable appearance. It works like a”little sports car”semiautomatic cutting machine, and can cut directly based on the raw steel plate. However the man-pack cutting machine can cut various weird shapes far beyond the semiautomatic cutting machine in the way of function and efficiency. It is very convenient and flexible with less space and low price. Plasma cutting also can cut nonferrous metal accurately.
1.Using the potable machine structure , can easy to move and use small space .Best choice for small factory .
2. Cutting head with High Touch control , so that head can up and down according the materials shape .
3.This machine without plasma source , customer can buy Hypertherm ( USA brand ) .So that can save some money .
4. Processed Materials of small and neat kerf ,without secondary processing.

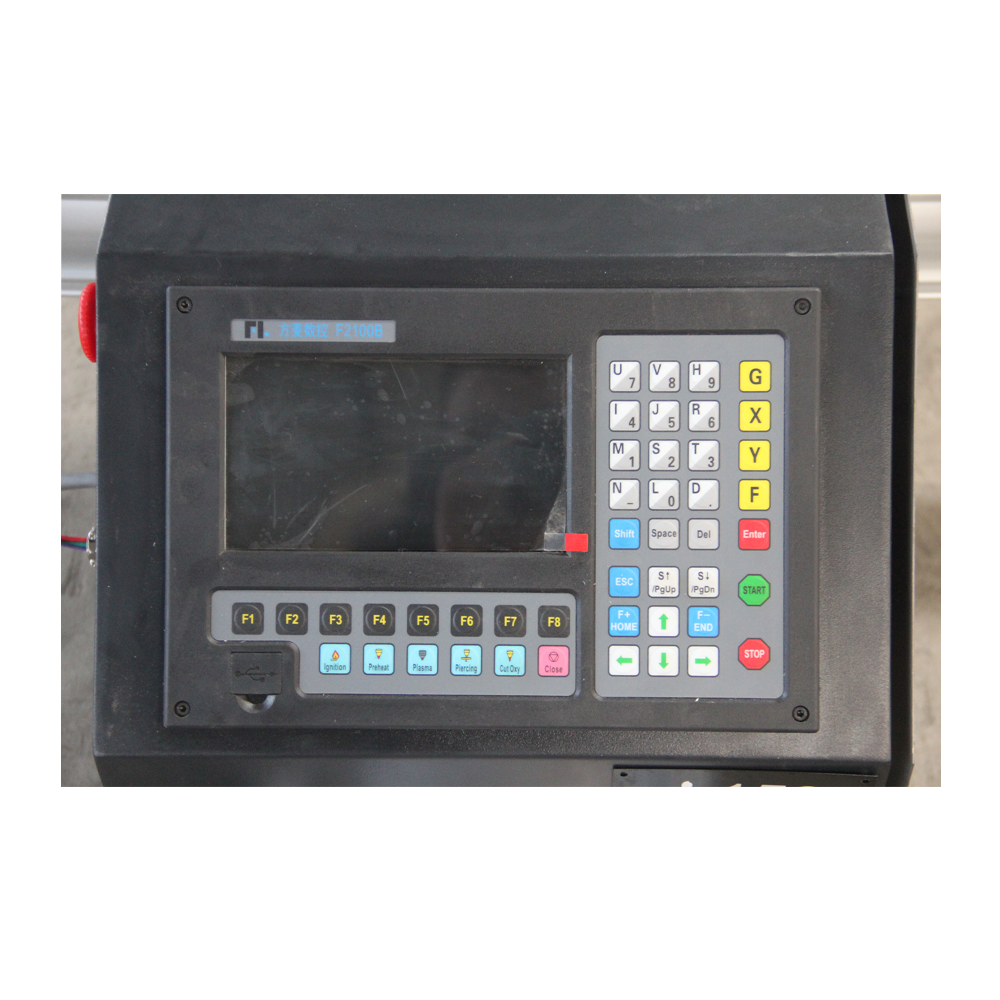

5. Advanced digital control system,large capacity storing function, convenient to read and process.
6. Compatible software: Ucancam,Type 3, Artcum,etc.
- USB port for program loading.
Installation of DW1530:
When you are going to use DW1530 to cutting the metal plate, follow these steps:

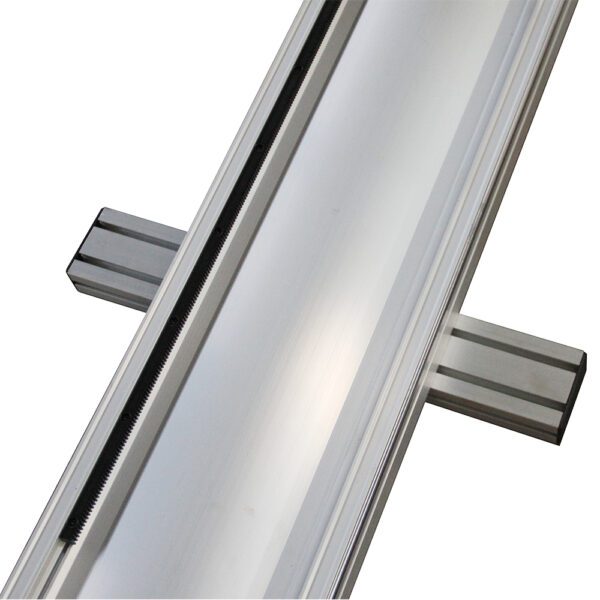

a. Fix the track by bolts beside the metal plate that needs to be cut.

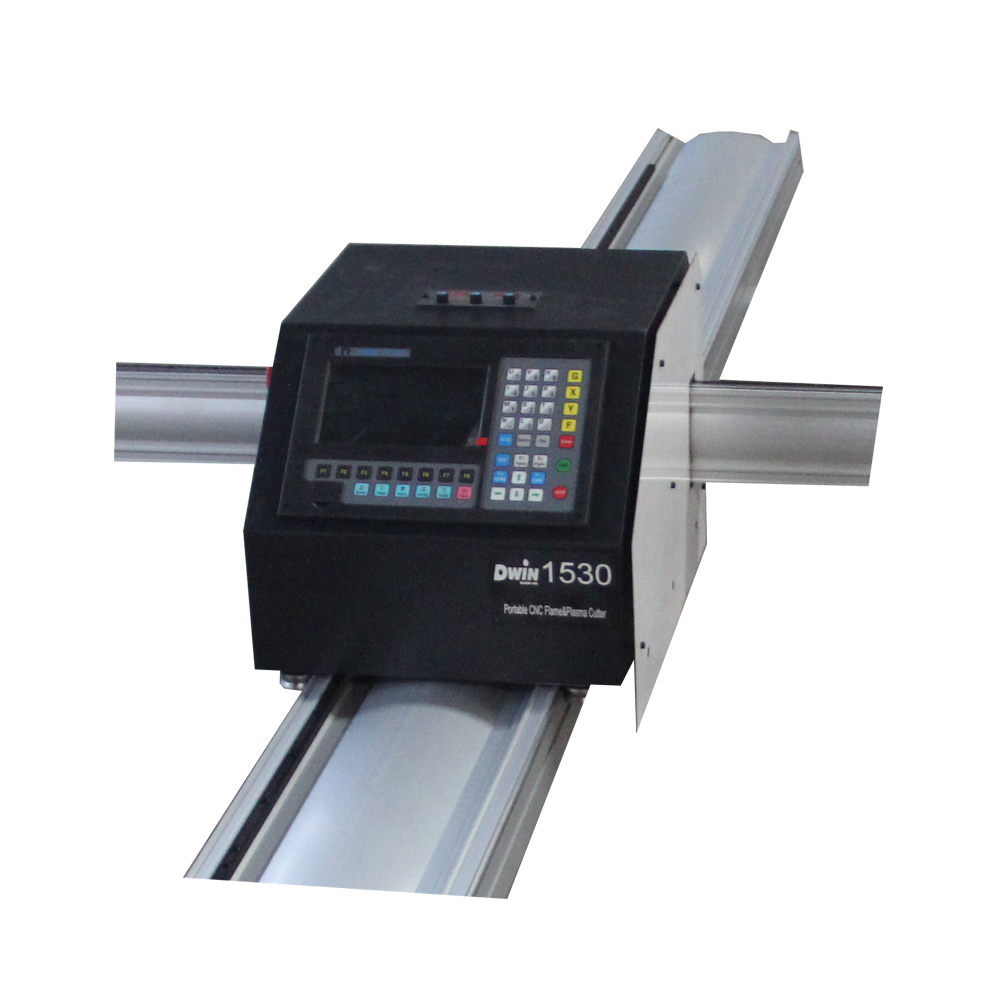

b. Assemble the CNC drive unit on the track and then assemble the cross bar on the CNC drive unit. (Installation method can be seen in the video)
c. Assemble the THC (torch height control). (Installation method can be seen in the video)

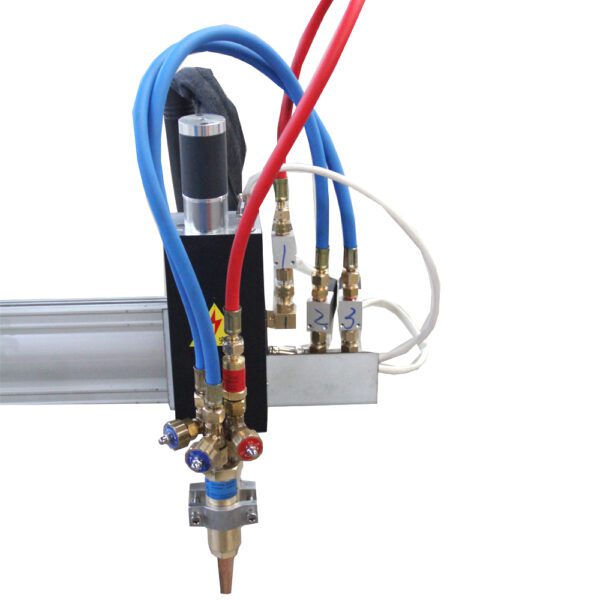

d. Assemble the cutting torch (flame cutting torch or plasma cutting torch) on THC.
Applications materials and industries:
All kinds of metal materials such as steel, copper, aluminum and stainless steel can be processed.Iron plate, aluminum plate, galvanized sheet, White Steel plate, Titanium plates, and so on like the sheet metal.
Ship Building, Construction Equipment, Transport Equipment, Aerospace Industry, Bridge Building, military industrial, wind power, Structural Steel, Boiler containers, Agriculture Machinery, Chassis electrical cabinets, Elevator manufacturers, Textile Machinery, Environmental protection equipment,etc.
Cutting Effect Display:
Dwin mainly produces plasma cutting machine,laser engraving machines, laser cutting machines, laser marking machines, Advertisement CNC routers, marble CNC routers and CNC woodworking machines.And we have gained the CE,FDA,and SGS certifications.
Q: How about the cutting effect of the machine?
A: Flame cutting mode can cut exceed 20mm metal plate;plasma cutting mode can cut within 20mm metal plate.
Q: How about your after-sales service?
A: 1.One year quality guaranty, the machine with main parts (excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.We will provide the consumable parts at an agency price when you need replacement.
4.24 hours on line service each day, free technical support.
5.Machine has been adjusted before delivery.
6.Our staff can be sent to your company to install or adjust if necessary.
|Working area||1500 x 3000mm
(59″ x 118″)
|Processing thickness||According to the power|
|Power||1.0KW / 1.34hp|
|Traveling speed||0-6000mm/min 263 inch / min 19.68 ft /min|
|Work mode||Non-contact arc striking|
|Flame cutting gas||Oxygen + Acetylene / Propane|
|Input voltage||AC110V, 1 phase, 60Hz|
