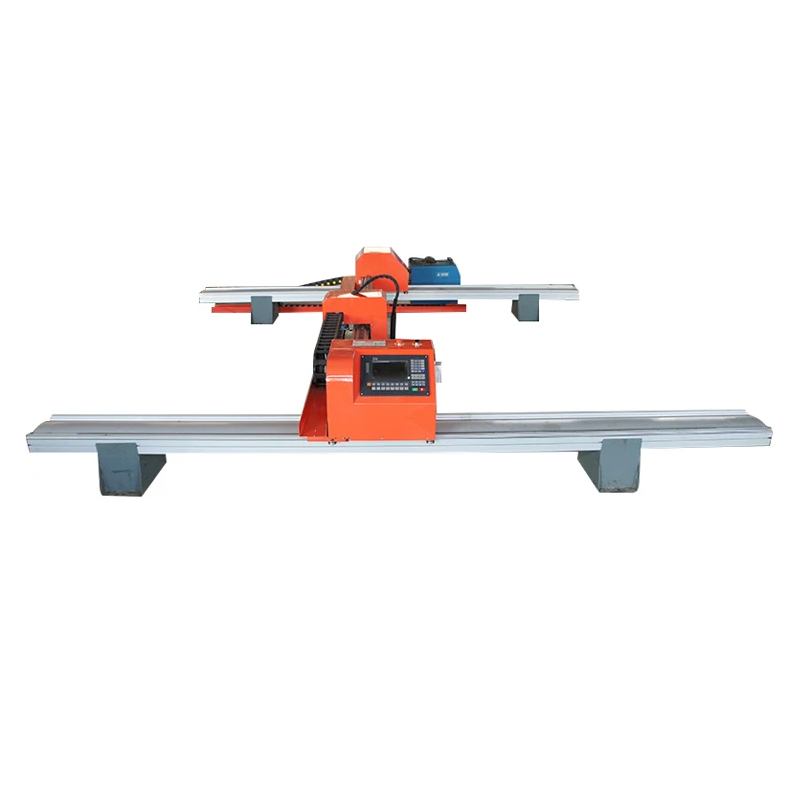

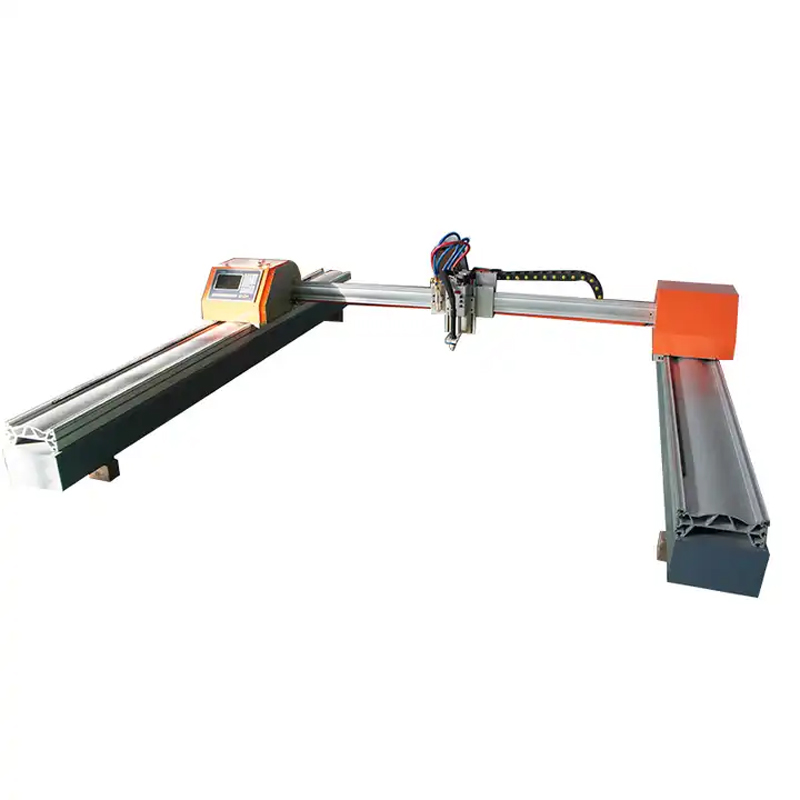

2230 Steel Aluminum Cnc Plasma Flame Cutting Machine

Add to wishlist
Compare

Machine size: A,2230: 2200*3000mm B,2240: 2200*4000mm
                          C,2260: 2200*6000mm D,22120: 2200*12000mm

$5,625.00

Compare

Product feature:
1. Adopt the newest aviation aluminum meticulously, full of The Times flavor, beauty, and durable use. The newest transmission structure with a precision rack and a special reducer to ensure the accuracy of the transmission, the Y axis adopts a double driver to provide large torque for the machine. The control cable is made of imported retardant wear-resistant material.
2. The drive system adopts USA chip control and high precision motors, providing big torque to ensure running smoothly under high speed.
3. The control system is a 7 “screen, with English and Chinese language. The machine adopts high high-precision arc voltage automatic torch height controller.
4. Optional function: Plasma/Plasma and Flame
5. Optional configuration: Stepper motor/servo motor; linear rail/SBR round rail

MODEL

FX-LML2230






BASIC

INFORMATION









Cutting method

Plasma

Flame(Optional)

Machine size

3550*3300mm

Cutting material

All metal sheet

Mild/High Carbon steel

Cutting size

2200*3000mm

Cutting thickness

According to the Plasma source

6-200mm

Lifting travel

≤130mm

Max travel speed

6000mm/min

Running accuracy

≤0.05mm


CONFIGURATION

LIST

CNC controller

Startshaphon

Remote control

Yes

Auto Height Control

HYD XPTHC-16

Lifter

Motor drive mode

Stepper motor

Drive system

Dual drive

Reducer

X-axis: Gearbox Y-axis: Direct drive

Transmission method

Rack and pinion drive

Linear guide

Linear axis

X, Y Axis beam

Heavy-duty aviation aluminum alloy

EXTERNAL SUPPLY

Power

220V/ 380V(Optional)

Cutting gas

Compressed air

Oxygen + Ethyne(Propane)

Gas pressure

0.4-0.7MPa

Oxygen:0.5MPa

Fuel gas:0.1MPa

SOFTWARE

Graphic import method

USB

Programming software

AutoCAD(all dxf,dwg,CAM,NC files)

Nesting software

FastCAM

ACCESSORIES

Torch

One set of Plasma torch

One set of Flame torch

Consumables

10 sets of nozzles

3 Flame nozzles

PACKING INFORMATION



Dimension

3700*720*700mm

Plasma source: to be confirmed

Weight

230Kg+Plasma source
