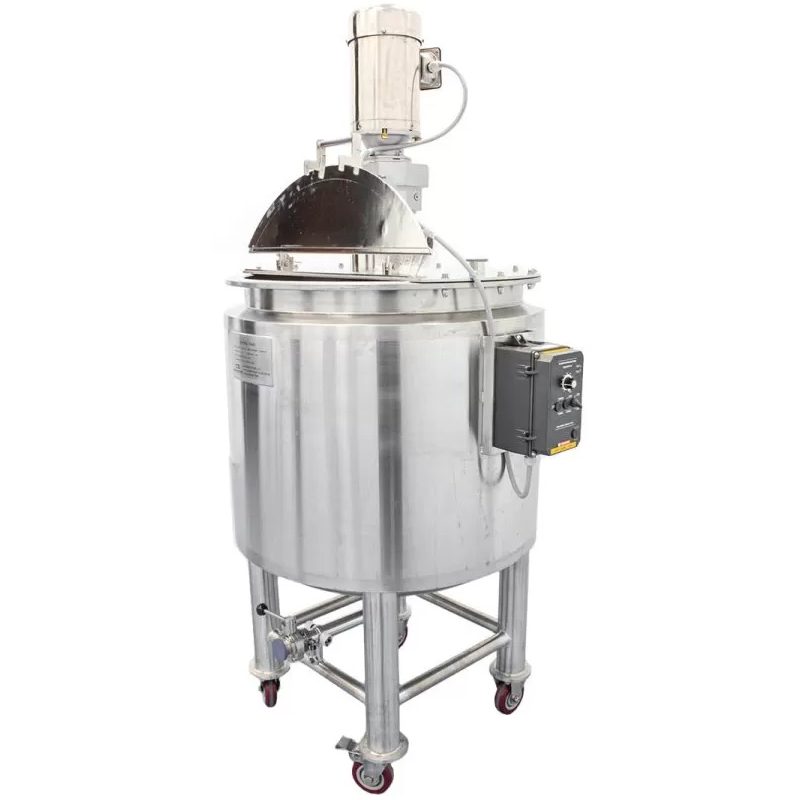

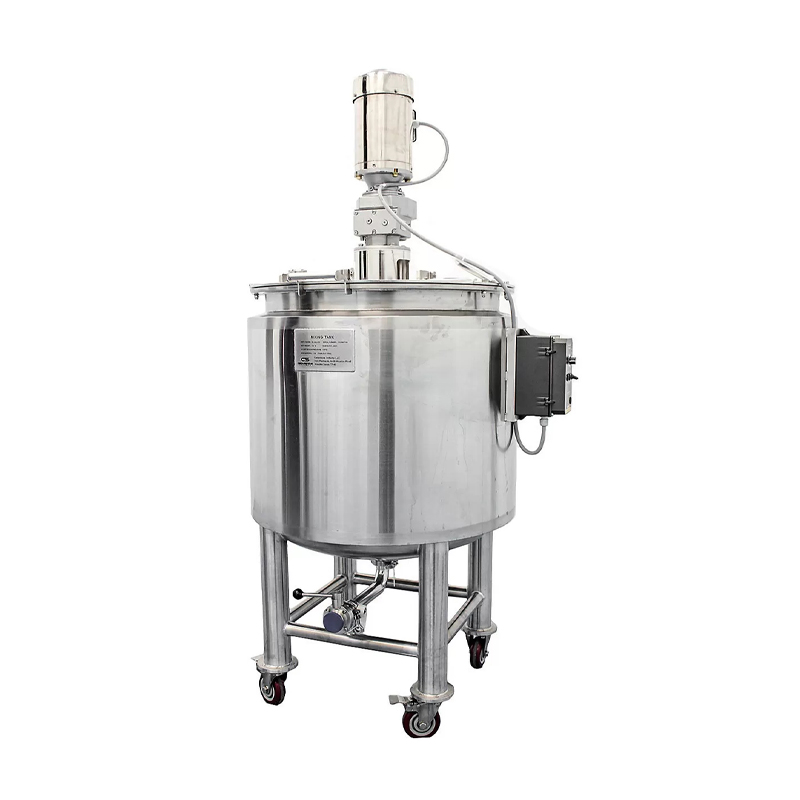

30Gallon Mixing Tank Agitator jacket heat mixing tank
Stainless Steel 304 construction.
The vessel interior holds NO pressure.
Dimension : 26″ L x 26 ” W x 69″ H
1.5″ tri-clamp outlet with sanitary butterfly valve.
Top 2 x 1.5″ tri-clamp port.

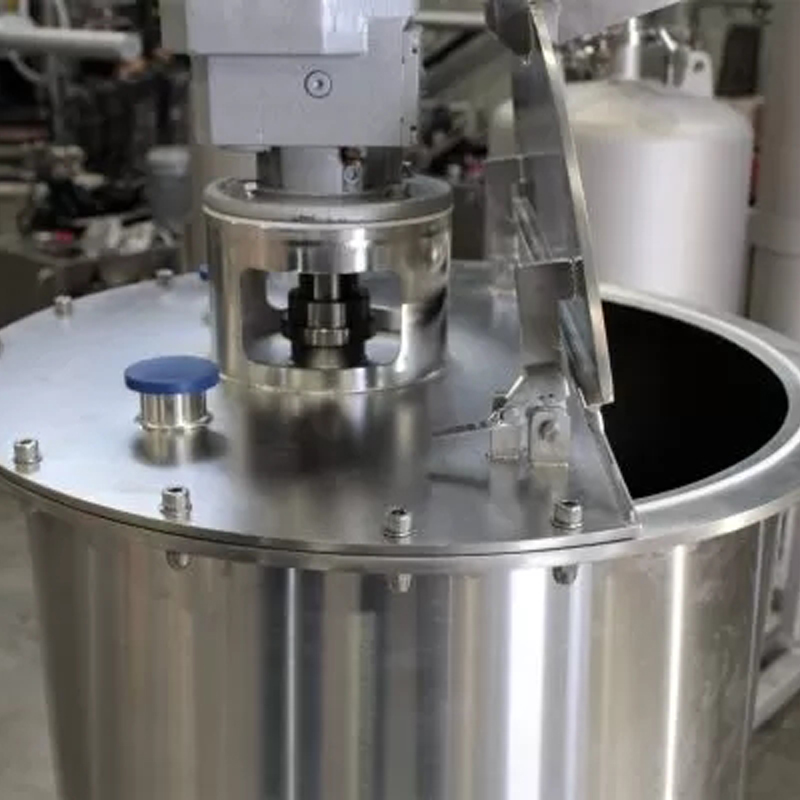

Top spring-loaded hinged lid, with a locking mechanism in vertical holding position.
Tank inner side is electropolished to 0.8µm( RA32 uin, #4 food-grade finish) sanitary finish.
1 HP stainless Lesson motor, 5:1 speed reduction gearbox.
110v input, integrated Variable frequency speed control, 0 -350 RPM adjustable.
(2) 8″ OD marine propellers.
$4,922.00
CompareStainless Steel Mixing Tanks
Mixing/blending tanks are available in a wide variety of shapes, including vertical, round, horizontal with hinged lid, torispherical head, slant bottom, cone bottom, and dish bottom. The tank transition sections use circular arc transition, which means there are no dead corners, making it easier to clean. We offer both single-wall or stainless steel steam jacketed tanks to allow heating or cooling. Agitation specifications are based upon customer request. Our stainless steel mixing tanks are designed, manufactured, and inspected in accordance with GMP and ASME standard.
Design & Analysis:
Our stainless steel mixing tanks and stainless steel steam jacketed tanks are designed with advanced CAE (Computer Aided Engineering) tools to ensure optimal mixing performance that meets our clients’ requirements. The use of CFD (Computational Fluid Dynamics) and FEA (Finite Element Analysis) enables us to obtain the best impeller and tank designs for the client’s particular application, by analyzing the flow pattern, mixing performance, power consumption, and structural integrity prior to actual manufacturing of our industrial blending tanks and mixing tanks.
To decide the impeller shape, size, placement, tank geometry, and mixing horsepower needed
Tanks without cover.
Custom tanks available. Contact us with your request.
