10 BBL Uni-tank Fermenter Jacketed & Insulatedx

Fully equipped pressure resistant, glycol jacketed, stainless steel cylindroconical vessel designed for fermentation, maturation and carbonisation of most types of beverages.

Unitank is a new model that has all the bells and whistles of our regular fermenters (Fermenter Tank CCV) but also comes with a more durable EPDM manhole gasket, solenoid valve for coolant, a larger 30% (instead of 25%) tank headspace and has the carbonation stone and sampling valve mounted on the cone.

Features of standard fermenters：

• Max working pressure 2 bar
• Rotatable 1.5″ racking arm with butterfly valve
• Bottom drainage pipe 1.5″ with butterfly valve
• Sanitary beverage sampling valve
• Carbonation stone
• Adjustable bunging valve
• Pressure gauge
• Mechanical safety valve (PVRV)

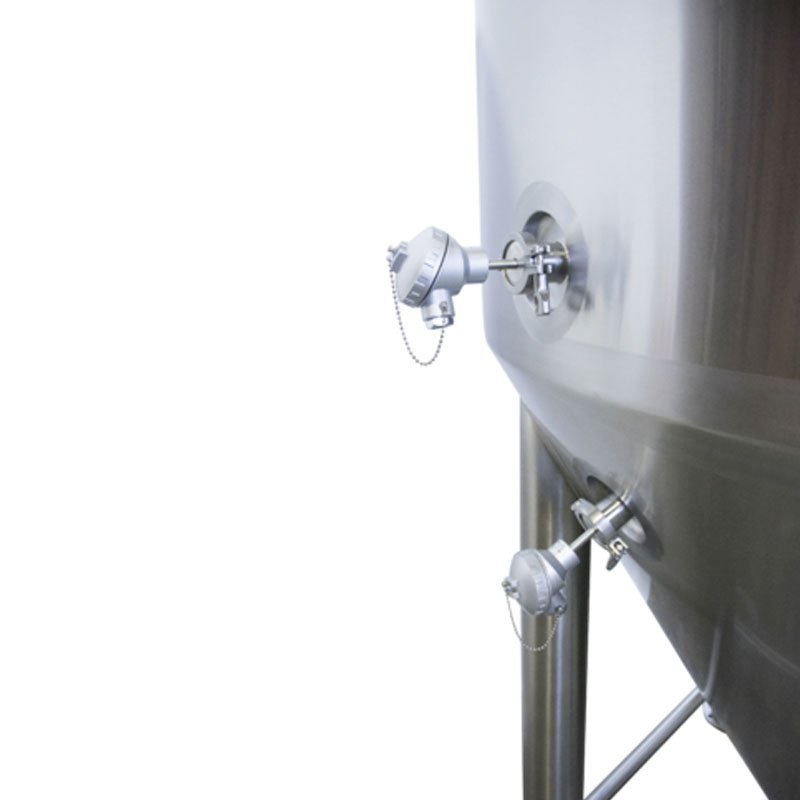

• High accuracy PT100 temperature sensor
• Dished top and cone bottom
• Dimpled cooling zones
• 80 mm polyurethane foam insulation
• TC connectors (if desired, DIN connections can be arranged)
• Sanitary side manway, shadowless
• 4″ TC hop port on top
• CIP arm with 360° coverage CIP spray ball
• CE certified
• SUS304 heavy duty legs with leveling pads
• Total volume 1 300 liters
• Working volume of 1000 liters (10 hL)
• Height 2550mm, diameter 1200mm

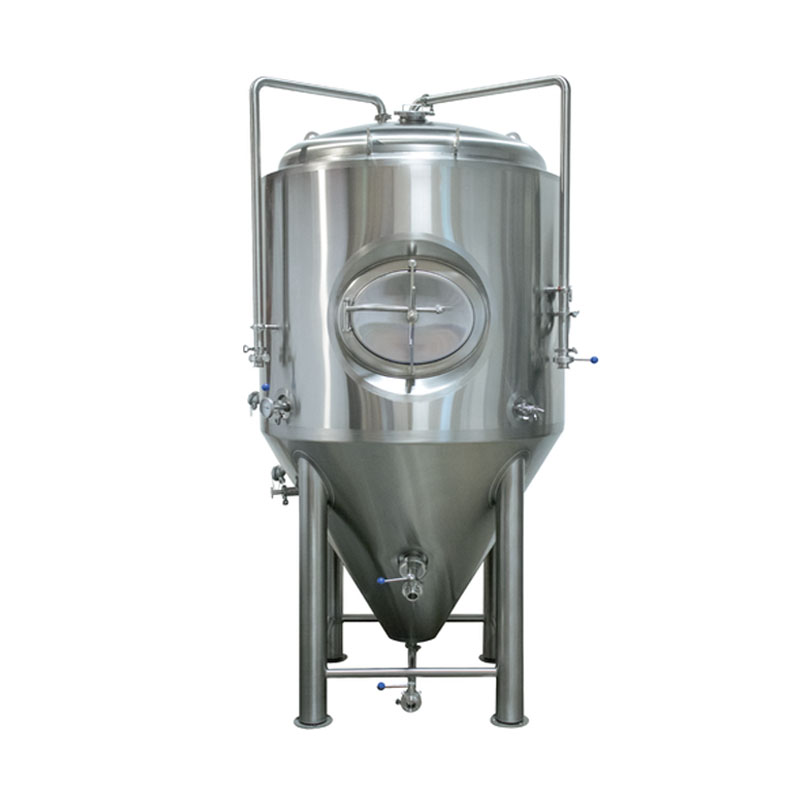

Standard 10 BBL Fermenter. Fully equipped and ready for service.Also available as Unitank.

100% TIG welded joints with sanitary polish and stringent controls, inspection and pressure testing. Stainless steel grade is 304 with finish 2B which has a surface finish of 0.1-0.5 RA. The fermenters are both pickled and passivated on the inside.
