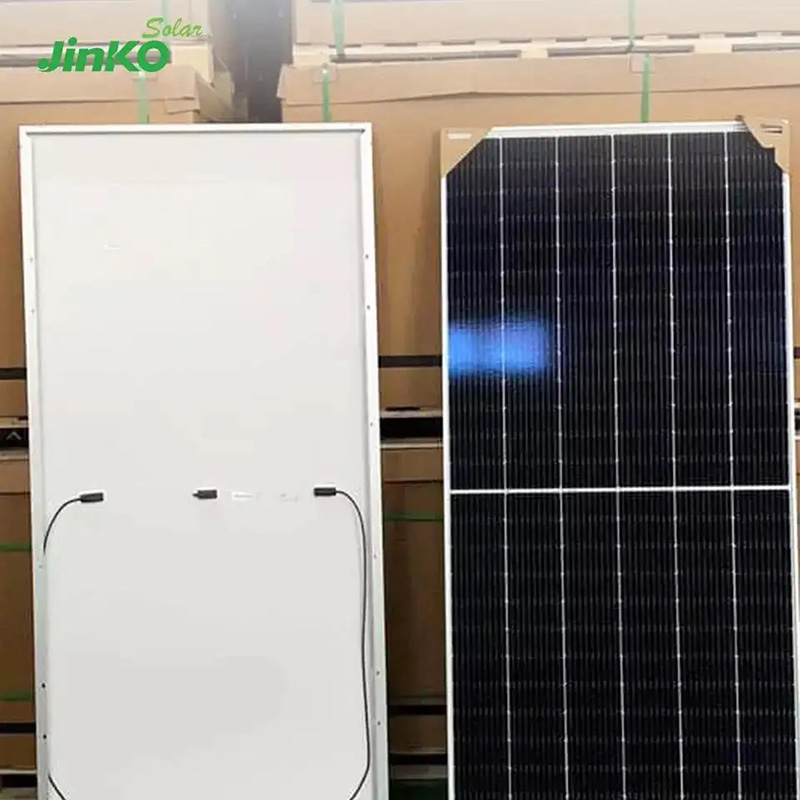

Jinko Solar Mono Panel Market Solar Panel 540W~555W Facial p-Type PV Modules MOQ 10000Watt

Add to wishlist
Compare

Solar Panel specifications
Operating Temperature(℃) -40℃~+85℃
Maximum system voltage 1000/1500VDC (IEC)
Maximum series fuse rating 25A
Power tolerance 0~+3%
Temperature coefficients of Pmax -0.35%/℃
Temperature coefficients of Voc -0.28%/℃
Temperature coefficients of Isc 0.048%/℃

$3,500.00

Compare

Solar Panel Specifications
Module Type
JKM540M-72HL4-V
JKM545M-72HL4-V
JKM550M-72HL4-V
JKM555M-72HL4-V
Maximum Power (Pmax)
540Wp
545Wp
550Wp
555Wp
Maximum Power Voltage (Vmp)
40.70V
40.80V
40.90V
40.99V
Maximum Power Current (Imp)
13.27A
13.36A
13.45A
13.54A
Open-circuit Voltage (Voc)
49.42V
49.52V
49.62V
49.72V
Short-circuit Current (Isc)
13.85A
13.94A
14.03A
14.12A
Module Efficiency STC (%)
20.90%
21.10%
21.29%
21.48%
Operating Temperature(℃)
-40℃~+85℃
Maximum system voltage
1000/1500VDC (IEC)
Maximum series fuse rating
25A
Power tolerance
0~+3%
Temperature coefficients of Pmax
-0.35%/℃
Temperature coefficients of Voc
-0.28%/℃
Temperature coefficients of Isc
0.048%/℃
Mechanical Characteristics
Cell Type
P type Mono-crystalline
No. of cells
144 (6×24)
Dimensions
2278×1134×35mm
Weight
28 kg (61.73 lbs)
Front Glass
3.2mm,Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
Frame
Anodized Aluminium Alloy
Junction Box
IP68 Rated
Output Cables
TUV 1×4.0mm2 (+): 400mm , (-): 200mm or Customized Length
Packaging Configuration
31pcs/pallets, 62pcs/stack, 620pcs/ 40’HQ Container



Category: Tags: ,
