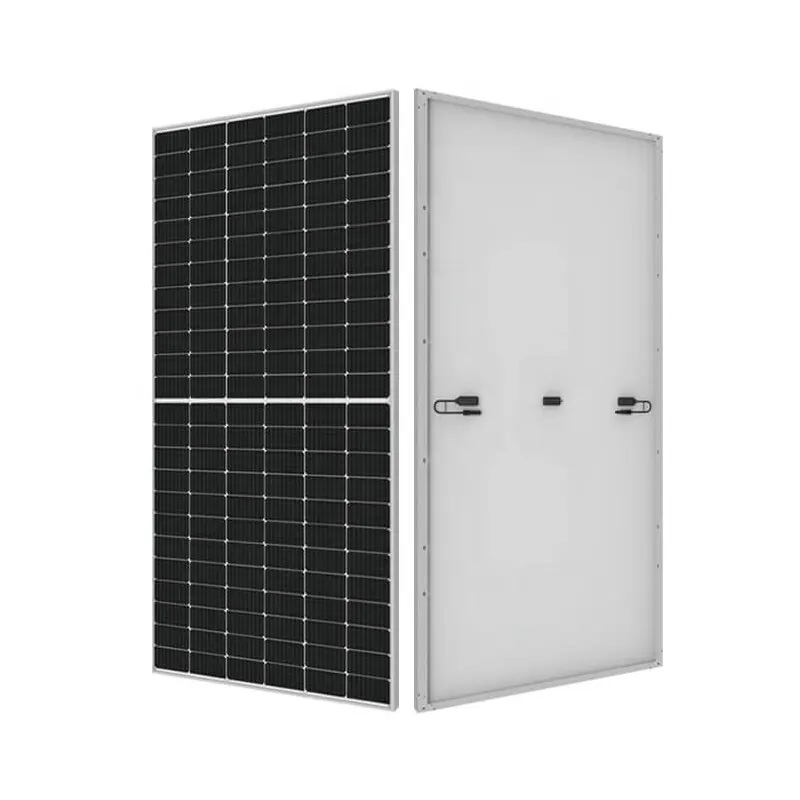

Jinko Mono PERC Cell Factory Price 400W 450W 500W 600W Solar PV Panels Module Solar Panel MOQ 10000watt
No.of Half-cells：144(6×24)
Dimensions：2278x1134x35mm(89.69×44.65×1.38inch)
Weight：28kg
Front Glass：3.2mm,Anti-Reflection Coating,High Transmission, Low lron, Tempered Glass
Frame：Anodized Aluminium Alloy
Junction Box：IP68 Rated
Output Cables：TÜV 1×4.0mm2,(+) 400mm, (-) 200mm or Customized Length
$3,500.00
Compare
Solar PV Panels Module Solar Panel
| Module Type | JKM535M -72HL4(-V) | JKM540M -72HL4(-V) | JKM545M -72HL4(-V) | JKM550M -72HL4(-V) | JKM555M -72HL4(-V) |
| Pmax.(W) | 535 | 540 | 545 | 550 | 555 |
| Vmp(V) | 40.63 | 40.70 | 40.80 | 40.90 | 40.99 |
| Imp(A) | 13.17 | 13.27 | 13.36 | 13.45 | 13.54 |
| Voc(v) | 49.34 | 49.42 | 49.52 | 49.62 | 49.72 |
| Isc(A) | 13.79 | 13.85 | 13.94 | 14.03 | 14.12 |
| Module Efficiency | 20.71% | 20.90% | 21.10% | 21.19% | 21.48% |
| Operating Temperature | -40℃~+85℃ | ||||
| Maximum System Voltage | 1000/1500VDC (IEC) | ||||
| Maximum Series Fuse Rating | 25A | ||||
| Power Tolerance | 0~+3% | ||||
| Temperature Coefficients of Voc | -0.28/℃ | ||||
| No.of Half-cells | 144(6×24) | ||||
| Dimensions | 2278x1134x35mm(89.69×44.65×1.38inch) | ||||
| Weight | 28kg | ||||
| Front Glass | 3.2mm,Anti-Reflection Coating,High Transmission, Low lron, Tempered Glass | ||||
| Frame | Anodized Aluminium Alloy | ||||
| Junction Box | IP68 Rated | ||||
| Output Cables | TÜV 1×4.0mm2,(+) 400mm, (-) 200mm or Customized Length | ||||
