SOLAR PANEL ELECTRICAL DATA
Operating Temperature: -40°C ~ +85°C
Max. System Voltage :1500 V (IEC/UL) or 1000 V (IEC/UL)
Module Fire Performance: TYPE 29 (UL 61730) or CLASS C (IEC61730)
Max. Series Fuse Rating: 35 A
Application Classification :Class A Power Tolerance:0 ~ + 10 W
Power Bifaciality: 80 % *
Power Bifaciality = Pmaxrear / Pmaxfront, both Pmaxrear and Pmaxfront are tested under STC, Bifaciality Tolerance: ± 5 %

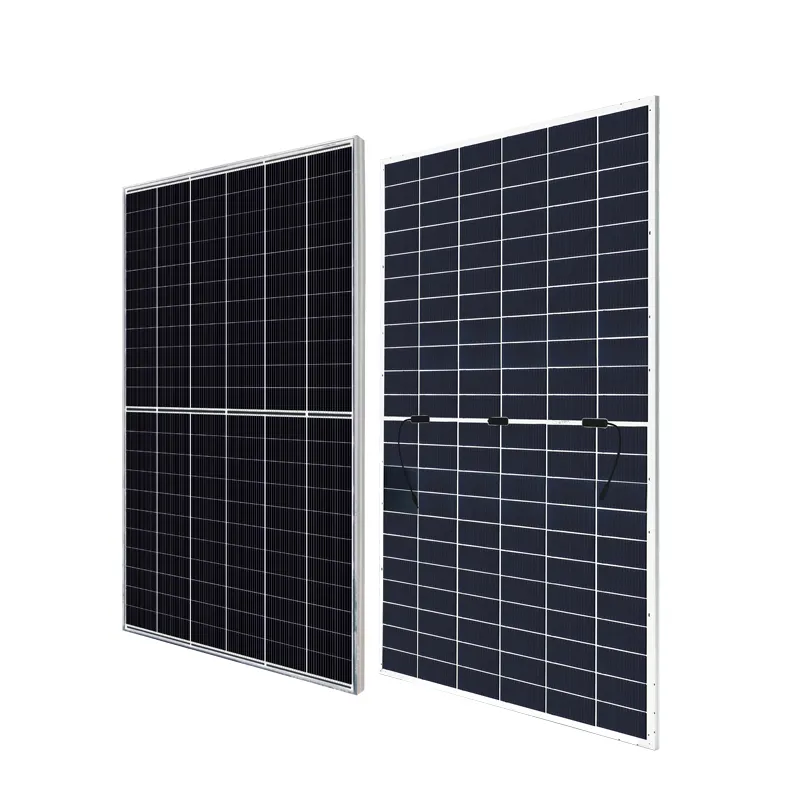

SOLAR PANEL MECHANICAL DATA

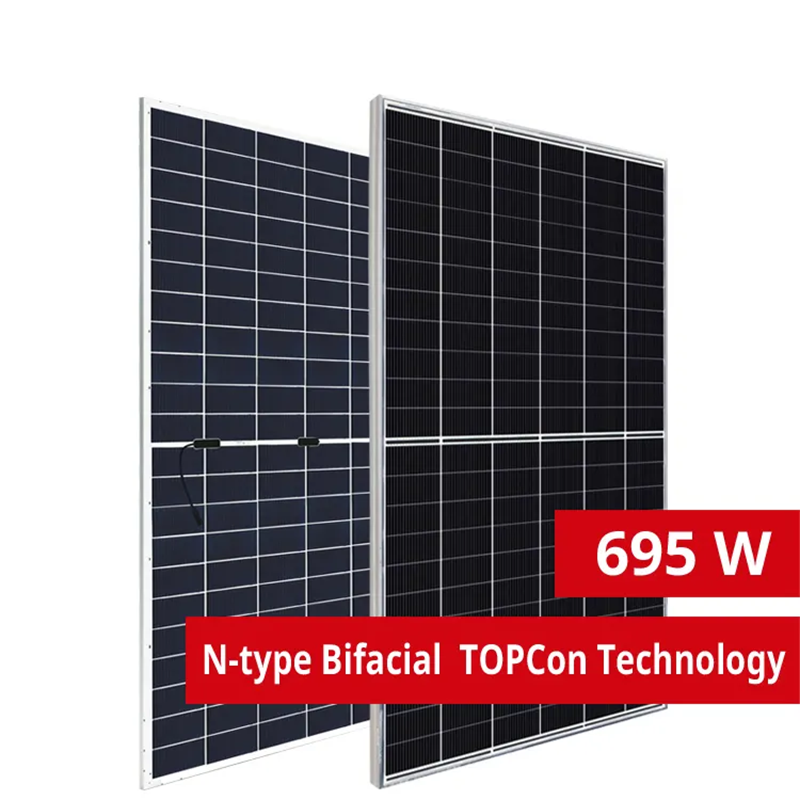

Cell Type TOPCon cells
Cell Arrangement : 132 [2 x (12 x 6) ]
Dimensions : 2384 ˣ 1303 ˣ 33 mm (93.5 ˣ 51.3 ˣ 1.30 in)
Weight: 37.8 kg (71.2 lbs)
Front Glass : 2.0 mm heat strengthened glass with antireflective coating
Back Glass :2.0 mm heat strengthened glass
Frame: Anodized aluminium alloy
J-Box IP68, 3 bypass diodes
Cable :4.0 mm² (IEC), 10 AWG (UL)
Cable Length (Including Connector):400 mm (15.7 in) (+) / 300 mm (11.8 in) (-) or customized length*
Connector :T6 or MC4-EVO2 or MC4-EVO2A
Per Pallet : 33 pieces
Per Container (40′ HQ):594 pieces or 495 pieces (only for US & Canada)
*For detailed information, please contact your local Canadian Solar sales and technical representatives.
