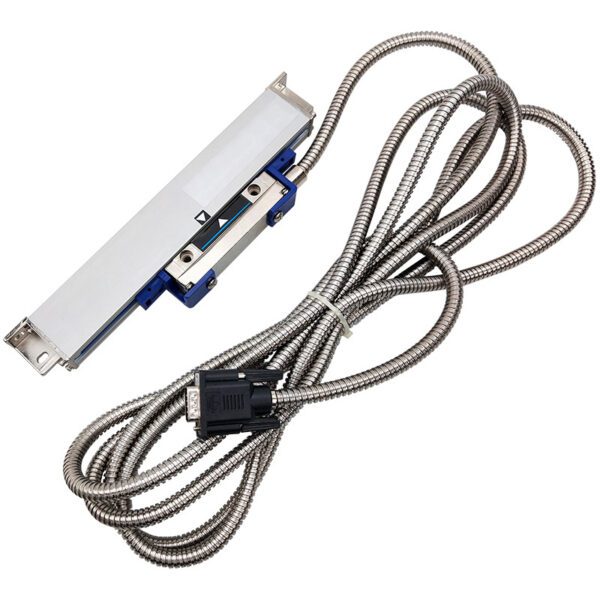

Optical Linear Scale 50mm to 1000mm Resolution 0.5μm High Precision Displacement Optical Linear Scale

Add to wishlist
Compare
  • This Optical Linear Scale can be adapted to almost any machine tool. Such as milling machines, machining centers, boring machines, wire cutting, spark machines, lathes, grinding machines, sawing machines, bending machines and testing equipment and instruments.
  • The grating ruler has good anti-vibration performance and fast movement speed. These characteristics make it not only meet the requirements of conventional mechanical properties, but also meet the requirements of linear motor drive speed.

$238.00

Compare

Optical Linear Scale Wide range of applications
This Optical Linear Scale can be adapted to almost any machine tool. Such as milling machines, machining centers, boring machines, wire cutting, spark machines, lathes, grinding machines, sawing machines, bending machines and testing equipment and instruments.

Model 0.5 1 5
Working speed 30m/min 60m/min 90m/min
Resolution 0.5μm 1.0μm 5.0μm
Length 50～1000mm 50～3000mm 50～3000mm
Precision ±(3+3L0/1000)μm  (or higher precision)
Output signal 2-way TTL square wave or RS422 differential output
Grating pitch 20μm 20μm 20μm
RI There is a RI every 50mm
Phase offset error 90º±15º 90º±15º 90º±15º
Operating Temperature 0ºC～40ºC 0ºC～40ºC 0ºC～40ºC
Storage temperature -20ºC～50ºC -20ºC～50ºC -20ºC～50ºC

Closed structure, the whole foot is dustproof and waterproof.
The Optical Linear Scale adopts a closed structure, the aluminum casing protects the grating, scanning unit and track from dust and cutting, and the elastic sealing strip protects the sealing of the casing.

The body of the reading head is waterproof and can reach a water depth of two meters. The entire foot is dustproof and waterproof up to IP54, with strong pollution resistance and good water resistance. The sensor uses a glass precision metrology grating as a measurement reference.

Strong shock resistance and good wear resistance.
The sliding seat adopts high-quality imported five bearings and a special spring structure, which can count reliably even in the case of large cutting, and has excellent repeatability.

The body of the Optical Linear Scale is made of aluminum alloy profile, which is anodized; the body of the grating ruler is thick to ensure the accuracy of the grating ruler installed on the machine tool. The ruler head is made of alloy die-casting, hard chrome plated, and corrosion-resistant.

Installation dimensions

L0—Effective range 50～3000 50mm one file
L1—Maximum range L1=L0+50 (Length＞900)
L1=L0+30 (Length≤900)
L2—Main ruler installation size L2=L0+156 (Length＞900)
L2=L0+136 (Length≤900)
L3—The largest size of the ruler L3=L0+174 (Length＞900)
L3=L0+154 (Length≤900)
D—Mounting hole distance on the side of the reading head 60±0.1
E—The maximum size of the reading head 90
F—Mounting hole distance at the top of the reading head 60±0.1
G—Body Thickness Size 29
H—The maximum height of the ruler 66.8
I—Reading head thickness 29±0.1
J—Distance from main scale to reading head 27.3
K—Main ruler installation hole distance 15
M—Main ruler installation hole distance 23.5
N—Gap between reading head and main scale 1.3±0.3
P—Reading head installation screw hole size 2-M5-6H
Q—Bottom mounting screw hole size 2-M4-6H depth8
R—Main ruler installation hole size 4-6×10 Waist Hole
