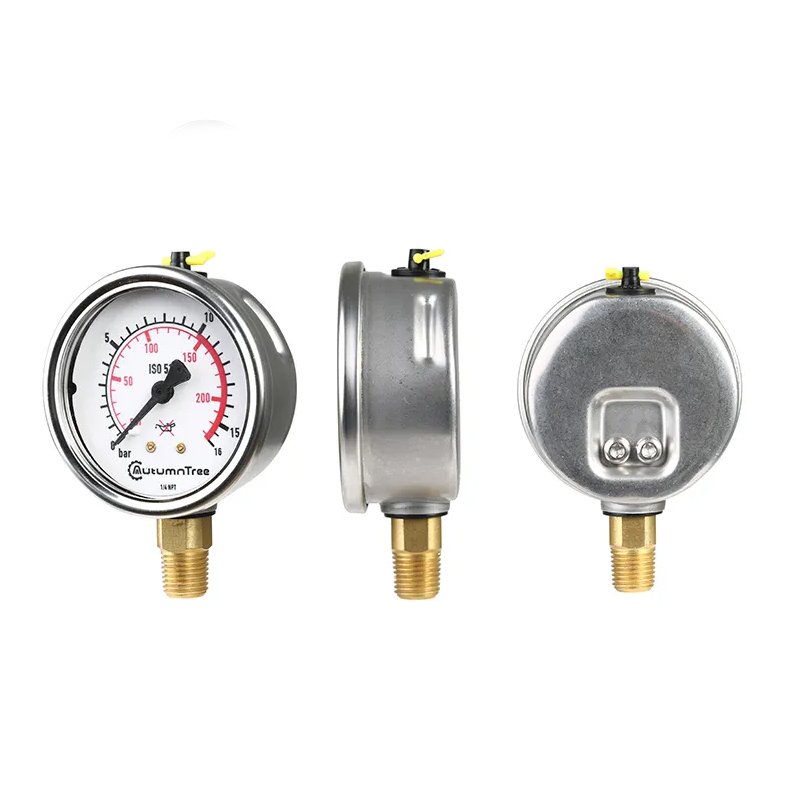

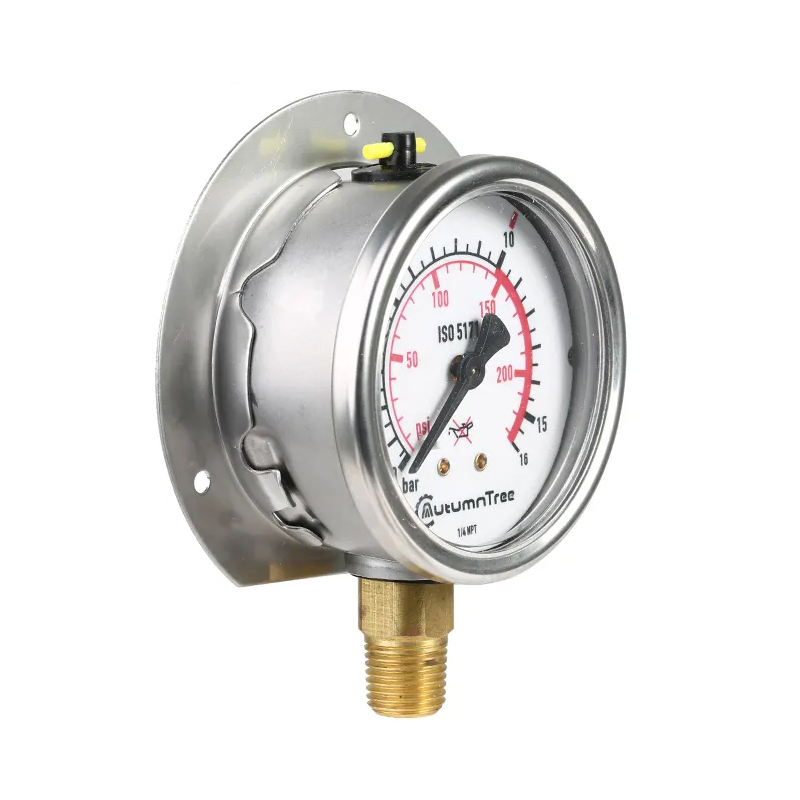

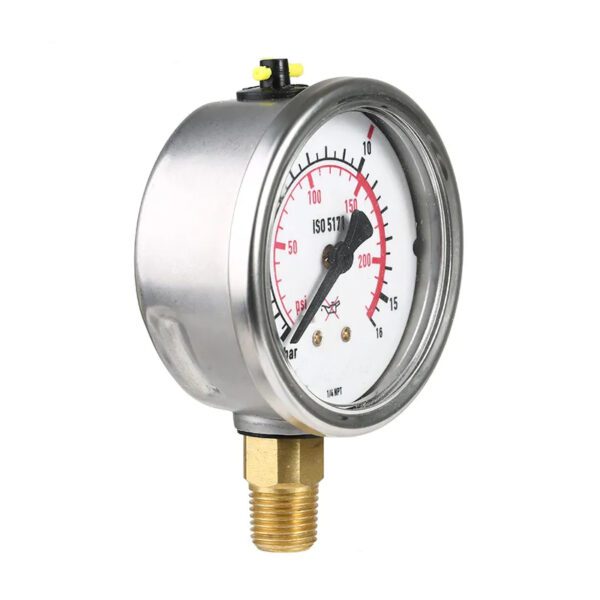

Manometer Liquid Filled Pressure Gauge,Liquid Filed Pressure Gauge Oiled Filled Manometer
Pressure limitation:
2.5″(63mm):Steady: 3/4x Full scale value
luctuating:2/3x Full scale value
Shorttime:Full scale value 4″(100mm),6(160mm)
Steady: Full scale
Fluctuating: 0.9xful scale value
Short time:1.3x full scale value
$30.00
Compare|
Name :
|
Heavy duty Pressure gauge (SS/BRASS) |
|
Model
|
117CL |
|
Diameter
|
2.5″(63mm),4″(100mm) |
|
Accuracy
|
±1%,±1.6% |
|
Range
|
-30”Hg-0 (vacuum) -30”Hg-24bar(Compound) 0-0.6 to 1000bar
|
|
Case
|
Stainless steel with roll ring |
|
Wetted Parts
|
copper alloy
|
|
Specifications
|
Nominalsize: 2.5”(63mm),4”(100mm),6“(150mm)
Accuracy: +-1.6%of full scales for 2.5”( 63mm) +-1.0% of full scales for4” (100mm),6”(150mm) Range available(nostock): 0…0.6to0…1000 bar or all other equivalent vacuum or combined pressure and vacuum ranges |
| Pressure limitation | 2.5”(63mm):Steady: 3/4xFull scale value luctuating:2/3x Full scale value Shorttime:Full scale value 4”(100mm),6”(160mm)Steady: Full scale Fluctuating: 0.9xfull scale value Short time:1.3x full scale value |
|
Application
|
Sturdy Industrial Pressure Gauge designed in compliance with the Operational safety
requirements of EN837-1
Reliable Pressure Gauge for the machine and plant construction industry as well as building
services industry
For Gaseous and Liquid Media that are not highly viscous or crystallising and will not attack cooper
alloy parts
Proven in refrigeration technology
|
|
Special Features
|
LongserviceLife,Robust Cost-effective and reliable Tocombine with SHUNJAY diaphram seals Scale range sup to0…..1000bar
|
Based on 0 reviews
Be the first to review “Manometer Liquid Filled Pressure Gauge,Liquid Filed Pressure Gauge Oiled Filled Manometer”
Related products
-
Pressure Gauges
Water Digital Gauges Cheap Price High Quality 0-200 Psi 0-14 Bar 1/8 Npt 40mm Radial Pressure Gauge
Pressure GaugesWater Digital Gauges Cheap Price High Quality 0-200 Psi 0-14 Bar 1/8 Npt 40mm Radial Pressure Gauge
1. The normal working environment temperature of the instrument is -40°C~70°C
2. The installation point of the instrument and the measuring point should be at the same level, otherwise a correction value should be added.But it has nothing to do with the measurement gas. Usually the length of theconnecting pipe does not exceed 50 meters.
3. In order to reduce the impact of shock, vibration and the rapid change of the measured medium on the instrument,Various buffers must be added when in use.
4. The meter is suitable for measuring the pressure of non-corrosive media to copperand copper alloys.
5. The meter is generally used up to 3/4 of the upper limit of the measurement whenmeasuring stable pressure.
When measuring fluctuating pressure, it generally does not exceed 2/3 of the upperlimit of measurement.
6. The instrument in use shall be inspected every three months.SKU: n/a -
Pressure Gauges

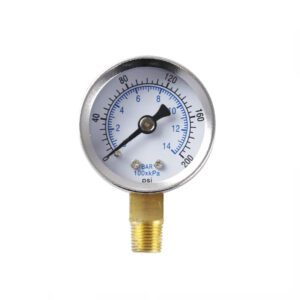

Performance Tool 0-200 PSI Air Gauge for Air Pressure Gauge
